Pulse Width of HY-PWM DC Motor Speed Controller AC180-AC260V to DC 0-220V Output 4A 50W-500W

Specifications

We produce MODULE ! CUSTOM-MADE module is OK! Our factory produce your own board! Change / modification is accepted!

   pulse width of HY-PWM DC motor speed controller AC180-AC260V to DC 0-220V output 4A 50W-500W

-----------------------------------------------------------------------------------------------------------------

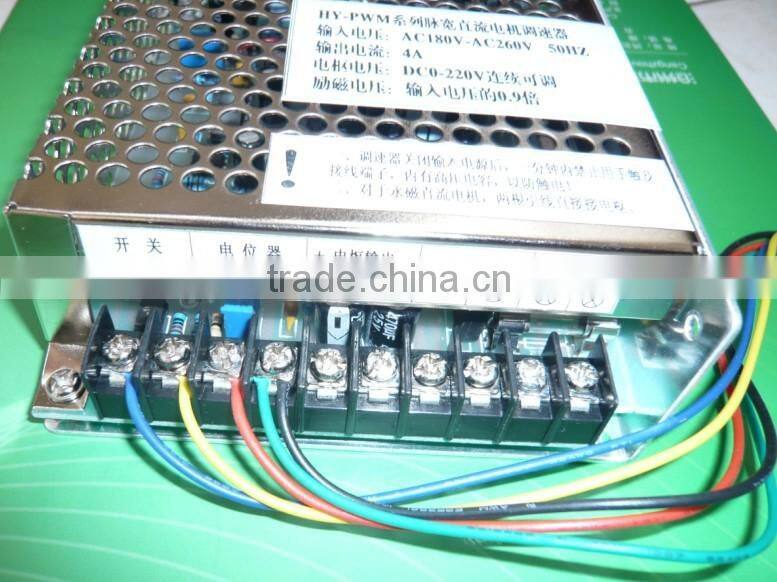

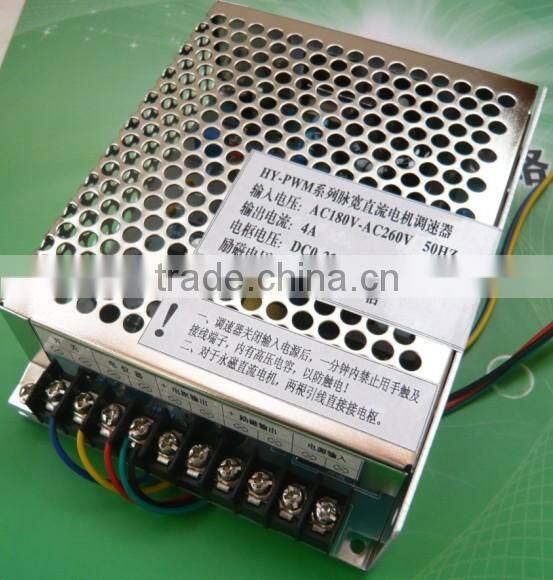

PRODUCT PICTURE

------------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES

The new product HY-PWM (ultra wide voltage AC180V-AC260V) small power DC motor speed regulator input. The governor adopts pulse width modulation technology, selection and design of switch devices in today's advanced production, has the advantages of small volume, no working noise, high efficiency, and has the function of short circuit protection advanced, and the armature of the high stability of the output voltage, the armature voltage from zero to the rated value can be adjusted continuously, which makes the motor speed is very convenient. Governor because of high working frequency, so as to ensure that the motor can work stably at low speed (i.e. not crawl), is the ideal products to replace silicon controlled speed regulator. Widely used in wire, cable, light industry, textile, papermaking, chemical industry, printing and dyeing, metallurgy, rubber, wire drawing, extrusion machinery, medical equipment, food production, printing and packaging and other industries, for small DC motor armature supply, realize constant torque stepless speed make DC motor.

Two, the detailed technical parameters:

1, the input voltage: AC180-AC260V 50/60Hz (ultra wide voltage power grid voltage fluctuations for bad)

2, the output current: 4A

3, matching motor power: 50W ~ 500W

4, the armature voltage: DC0 ~ 220V continuously adjustable

5, the excitation output voltage: 0.9 times the current 1A input voltage

6 dimensions: length 130mm, width 98mm and height 38mm

7, connection: terminal type (convenient)

Three, the work environment:

1, the ambient air temperature: -10 to 40 degrees C

2, the air relative humidity below 85%, good ventilation

3, installed in the ventilation is good, no violent shock, no vibration, no explosion danger medium and no conductive metal particles occasions

Four, product characteristics:

1, using pulse width technology makes the velocity more stable, low speed big efforts

2, with over current protection cut-off device to make more reliable performance

3, with the soft start device to eliminate the motor starting current is too large

4, the preparation of a multi function interface and flexible

In five, the matters needing attention:

In 1, governor close the input power, the hand's reach terminal prohibits a minute, in which a high voltage capacitor, to avoid the electric shock!

2, for the two lines of the permanent magnet DC motor, the two leads connected directly to the armature. Ban is connected to the excitation!

Six, product wiring diagram: switch standard diagram, connect the motor rotation, off to stop.

-----------------------------------------------------------------------------------------------------------------
SHIPPING TERMS

1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST

2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.

 ------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS

1.We accept PAYPAL, TT, WESTERN UNION, ESCROW

2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0

-------------------------------------------------------------------------------------------------------------------
GUARANTEE PERIOD

    3 Months, if the quality have any problems, We have a good after sale

service team will slove the quality problems for you.

1.If you test the products and it doesn't work, pls keep it and send it to us in

   1 month, we will send the good one to you with the following order.

2.If the product is already used by you, then no warranty.

3.If the product is broken by man-made, then no warranty.

----------------------------------------------------------------------------------------------------------------------
