Cnc Machine Center ZG850 , high speed precision cnc vertical maching center with best price
1.Adopting the high-speed&high-precision spindle(12000/24000RPM),stable internal mechanical structure and excellent processing function, ZG850 Machine Center is suit for processing auto parts and communication aluminium alloy cavity.
2.Drilling and tapping is ultra high-speed/high performance/high-precision. Its tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 50M/MIN.
3.Long traverse length,satisfies different processing needs on a large scale.
Cnc Machine Center ZG850 , high speed precision cnc vertical maching center parameter
| Parts | items | unit | drilling and tapping center-ZG850 |
| Workbench | Size(L*W) | mm | 500*900 |
| Workbench load | kg | 350kg(even load) | |
| Spindle end to workbench face | mm | 150-650 | |
| Spindle | Spindle rotate speed | r/min | 12000/24000 |
| Spindle motor | kW | 5.5/7.5kW | |
| Hole conical degree | ISO | #30(BT30) | |
| Traverse | Travel X/Y/Z | mm | 800/500/500 |
| Rapid traverse speed X/Y/Z | m/min | 50/50/50 | |
| Cutting feed speed X/Y/Z | m/min | 20/20/20 | |
| Precision | Positioning accuracy | mm | 0.005/300 |
| Repeated positioning accuracy | mm | ±0.003 | |
| ATC | Magazine tool capacity | ea | 24+1(circle typl) |
| Max.tool Length | mm | 170 | |
| Max.tool dia | mm | 80 | |
| Max.tool weight | kg | 3 | |
| Tool to tool(T-T) | sec | 1 | |
| Power source | Power supply | kVA | 16 |
| Air source pressure | kgf/cm²(MPa) | 6(0.6) | |
| Motor | Dimension(L*W) | mm | L2200*W2700 |
| Dimension(H) | mm | 3000 | |
| Machine tool weight | kg | 4000 | |
| Cooling | Tank volume | L | 220 |
| Cooling pump flow | L/min | 60 | |
| Congtrol panel | Spec | MITSUBISHI/M70VB | |
| Screen | 8.4"Color TFT LCD | ||
| Storage of programme | KB | 500 |

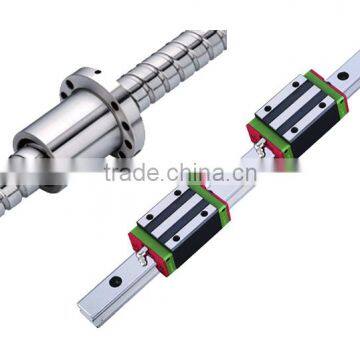

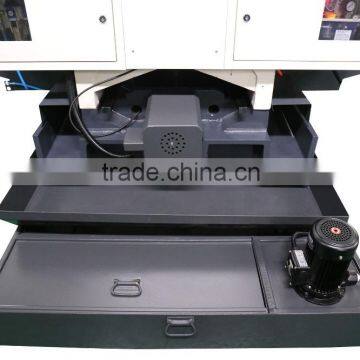

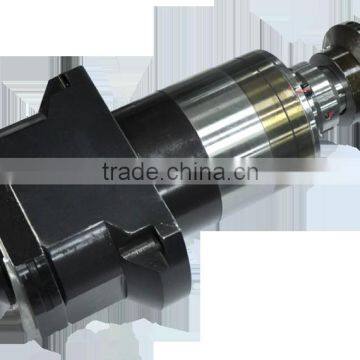

Cnc Machine Center ZG850 , high speed precision cnc vertical maching center pics
GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .
