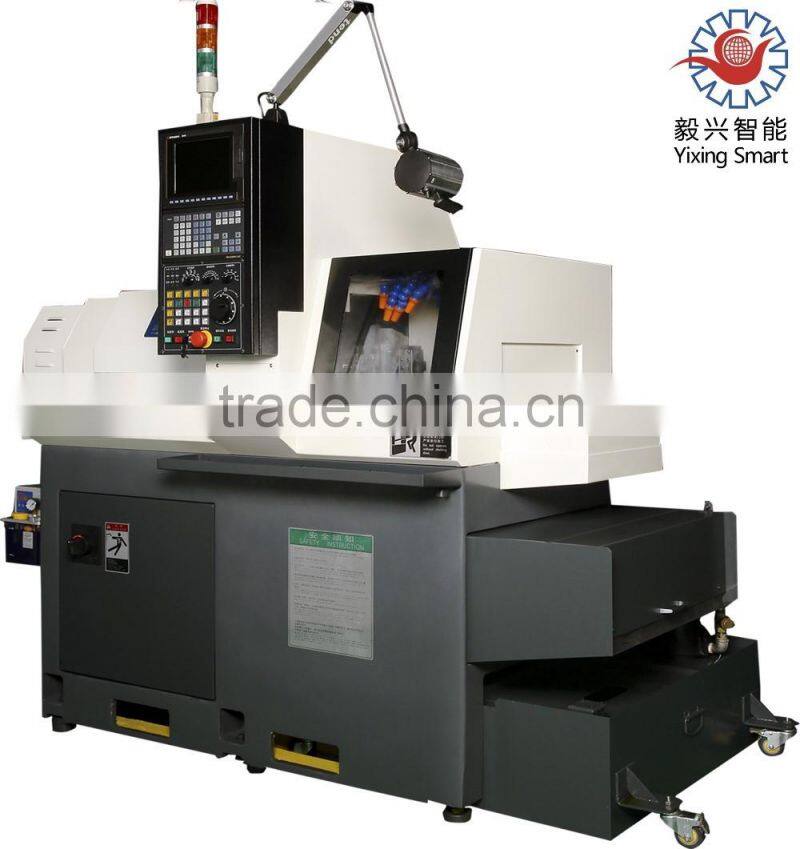

Yixing BS203 high precision new CNC double column vertical cnc lathe
1,This Cnc lathe use the axial can be expanding the scope of processing .
2, This Cnc lathe can be shorten the standby time .
3, This Cnc lathe leading axle fastest movement is 32m/min .
4. This Cnc lathe cutting tools distance was 28mm, can be reduce tool change time.
5, This Cnc lathe high speed ,high precision and easy operate .
| cnc lathe machine Specifications model BS203 205 | ||||
| Description | Unit | BS203 | BS205 | |
| NC System | NC UNIT | MITSUBISHI M70 A | ||
| Machining Range | clamping diameter | mm | 3~20 | |
| Max processing length | mm | 210(80/170:with giude bush/45mm(no guide bush) | ||
| Max drilling diameter of spindle | mm | 10 | ||
| Max tapping diameter of spindle | M10 | |||
| Max clamping diameter of back shaft | mm | 20 | ||
| Max drilling diameter of back shaft | mm | 8 | ||
| Max tapping diameter on back | M8 | |||
| Max drilling depth of spindle | mm | 6 (OP) | ||
| Max drilling diameter of side milling power head | mm | M5*0.8 (OP) | ||
| Max drilling on back | mm | 6 | ||
| Max thread capacity on back | M5 | |||
| Machining parametor | Spindle speed | m/min | 200-10000 | |
| Back shaft speed | m/min | 200-10000/min | ||
| Total cutting tools | pcs | 13 | 21 | |
| Cutting tools size | mm | 12*12*85 | ||
| Fast movement speed | m/min | 32(X1:24m/min) | ||
| Controllable axis | axis | 3(X/Y/Z) | 5 (X/Y/Z;X1,X2,Y,Z1,Z2) | |
| Electric motor | Spindle | kw | 2.2/3.7 | |
| Back shaft | kw | 0.75 | ||
| Z1 axis | kw | 1 | ||
| Y1/Z1/X2/Z2 axis | kw | 0.75 | ||
| The head horizontal power | kW | 0.75(OP) | ||
| Cooling oil pump power | kw | 0.44 | ||
| Lubricating oil pump | kw | 0.1 | ||
| Power and others | Machine weight | kg | 1700kg | 2100kg |
| Total electrical capacity | KVA | 8 | 11 | |
| Air pressure | mpa | 0.6-0.7 | ||
| Volume | NL/min | 30 | ||
| Cutting oilTank volume | L | 150 | ||
| Machine dimension(L*W*H) | mm | 2106*1162*1791 | 1964*1152*1791 | |

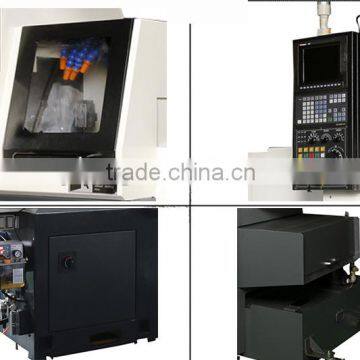

The CNC lathe machine pictures
1. Shorten the machining time :
- The CNC lathe axis movement commands can be called M (removable workpiece separator and drain the coolant)
- The CNC lathe axis movement move command (which coordinate positions so that other axis simultaneous machining and non-interference .
2. Operability :
- The CNC lathe automatic shut off: Press M or instruction can be executed automatically
- The CNC lathe automatic face processing : Press M or instruction can be executed automatically
- The CNC lathe automatic workpiece discharge : Press M or instruction can be executed automatically
- The CNC lathe automatic interference checking function: the back seat drill shaft and other tests
- The CNC lathe automatic optional function setting screen: optional mechanical data and other settings
3. Thermal displacement correction : The CNC lathe automatic can be cooled down directly into the production start .
4. Tip center height correction software : The CNC lathe just type in the two outer diameter of the actual value of the setting screen had been cut, the software automatically calculates the difference between the center height automatically adjust the data table knife
The cnc lathe package : one set in one standrd exporting woodencase .our packge size can be custom .
CNC LATHE MACHINE GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
