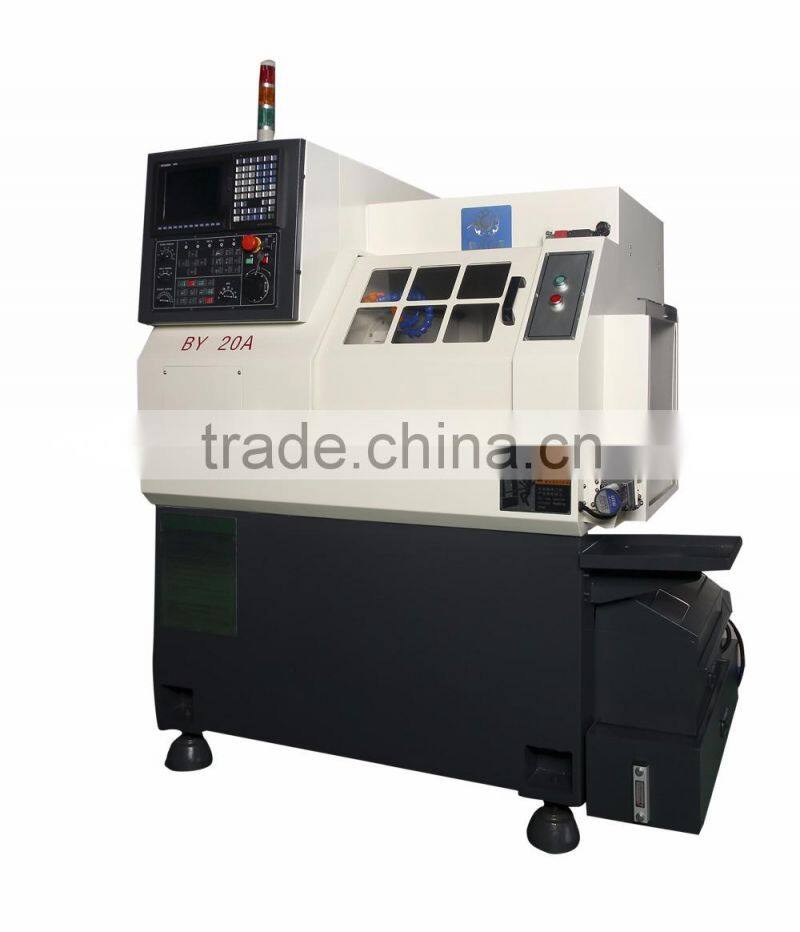

Yixing Model BY20A diameter 20 mm high precision Used CNC milling machine with C axis
1, The CNC milling machine usage MITSUBISHI M70 CNC system ,high precision,high stability and easy operate .

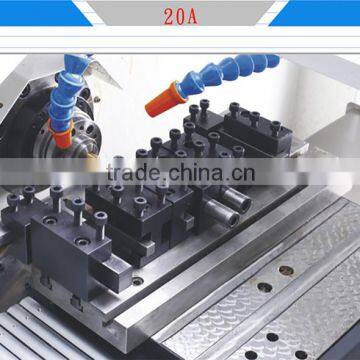

2, CNC milling machine is row of knife design.
3, The CNC milling machine spindle usage pneumatic clamping .
4, The CNC milling machine can be choice the oil film feeder ,achieved nobody unattended
5. The CNC milling machine can add the Y-axis control 4 power head make side for easy drilling, tapping and milling flat. While also increasing the three power head end surface of the flat end face milling, tapping, drilling can be easily implemented in complex parts can be solved .
| CNC milling machine specifications model BY20A | ||||
| Description | Unit | BY20A | BY20C | |
| NC System | NC UNIT | MITSUBISHI E60 | MITSUBISHI E60 | |
| Machining Range | clamping diameter | mm | 3~20(With flexible collet) | |
| Max processing length | mm | 100(with air pneumatic) | ||
| Max turning diameter | mm | 270 | ||
| Repeatability | mm | 0.003 | ||
| positioning accuracy | mm | 0.003 | ||
| Spindle end face runout | mm | 0.002 | ||
| Spindle radial runout" | mm | 0.002 | ||
| Spindle Indexing angle | 5°±1 | |||
| Machining parametor | Spindle speed | m/min | 6000 | |
| X axis travel | mm | 300 | ||
| Y axis travel | mm | 180 | ||
| Power head speed | mm/min | 4000 | ||
| Cutting base length | mm | 410 | 305 | |
| Cutting tools size | mm | 16*16 /12*12 | ||
| Fast movement speed | m/min | 32(X1:24m/min) | ||
| Controllable axis | axis | 2(X/Z) | 4 (X/Y/Z/C) | |
| Electric motor | Spindle | kw | 3.7 | |
| Power head | kw | 700W/0.75KW | ||
| X Y axis | kw | 1 | ||
| Cooling oil pump power | kw | 0.44 | ||
| Lubricating oil pump | kw | 0.1 | ||
| Power and others | Machine weight | kg | 1400 | 1450 |
| Total electrical capacity | KVA | 6.5 | 9 | |
| Air pressure | mpa | 0.6-0.7 | ||
| Volume | NL/min | 30 | ||
| Cutting oilTank volume | L | 150 | ||
| Machine dimension(L*W*H) | mm | 1635*1250*1635 | ||

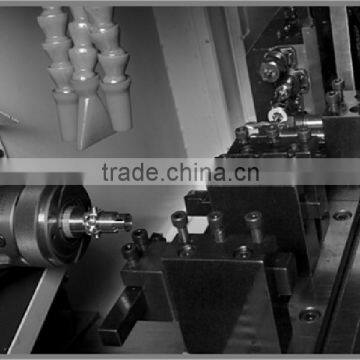

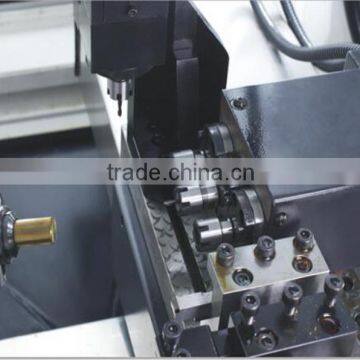

Yixing Model BY20A diameter 20 mm high precision Used CNC milling machine with C axis pictures
1. The CNC milling machine contains mechatronics design, beautiful exterior, and mature product mix. It is easy to operate, so that one worker can operate multiple lathes at the same time.
2. The The CNC milling machine bed is made of heavy casting. The heavy casting have went through at least twice aging quality tests and ultrasonic frequency quenching. The integral type casting make the machine tool harder, so that the lathe is more stable.
3. The CNC milling machine have X, Z axes contains with high-precision rolling screws mandrel, make a better dynamics and higher precisions.
4. The CNC milling machine double row cylindrical roller bearings and Double direction thrust angular contact bearing are used in principal axis. These precise bearings with special design for the main axial of the machinery equipment. These gives a optimized combination of high-precision, high loads and good running speed; moreover, it is more durable.
CNC milling machine package : one set in one woodencase .our packge size can be custom .
CNC MILLING MACHINE GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have build research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries, Our main products CNC lathe ,machine center ,bar feeder ,auto lathe . Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
