Classification, Function, Structure & Feature of Fire/Smoke Damper

(Model: CFHF70)

C---- Company code

FH------ Classify code:

FH(fire type), PY(smoke type)

F------ Feature code:

 T: Air Volume

 C: Electromagnetism

 Q:  Automatic On or Off

 Y: Remote Manual Operation

 X:  Action Signal Output

 Z: Dead Weight Fire Damper

 B: Refold Smoke Damper

 K: Air Outlet (Or Exhauster Outlet)

70------- Main Parameter

 70: 70°C Temperature Sensor Off When it Reaches 70°C

280: 280°C Temperature Sensor Off When it Reaches 280°C

No Numeric Code:  No Temperature Sensor

Remark: In order to simplify the model number, all electromagnetism which with signal, no feature code was added; all smoke damper which with electromagnetism, the feature code “C” was omitted.

Model & Fuction Table

Technical Parameter, Structure & Feature

Blade: 1.2~1.5mm

Blade Shaft: Φ10

Shaft Sleeve: Brass

Controller Classification:  emperature Sensor, Manual, Electric, Automatic

Manner of Execution:  Temperature Sensor, Manual, Electric

Voltage Rating(V):  DC24V±10%

Rated Current(A):  <0.5A

Micromove Switch:  Contact Rating 380V 0.3A

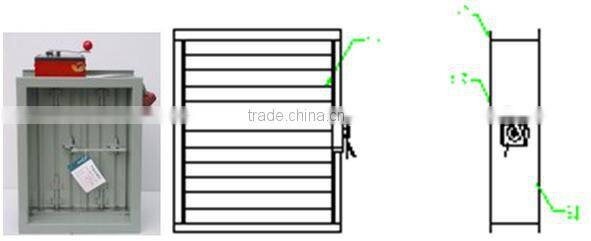

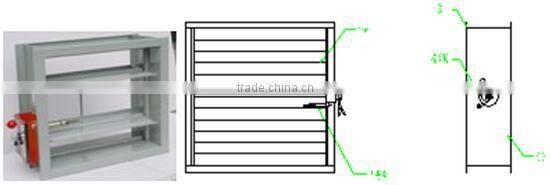

I.  Dead Weight Damper (Gravity Fire Damper) CFHZ70(280)

• Usually it keeps opening, fuse action temperature is 70°C(or 280°C)
• When smoke temperature reaches 70°C(or 280°C), the fuse will melt, and damper closes automatically.
• According to client’s requirement, electric Interlock signal device can be added.

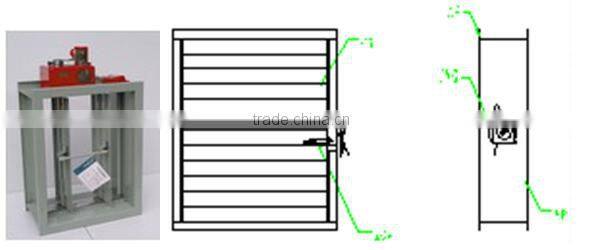

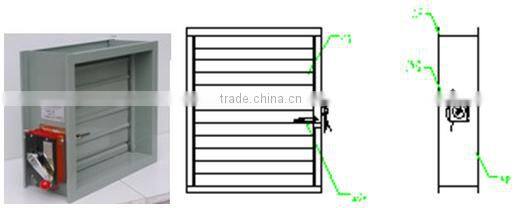

II.  Fire Damper CFHF70(280)

• Usually it keeps opening, fuse action temperature is 70°C(or 280°C)
• When smoke temperature reaches 70°C(or 280°C), the fuse will melt, and damper closes automatically.
• Manually close, Manually reset available

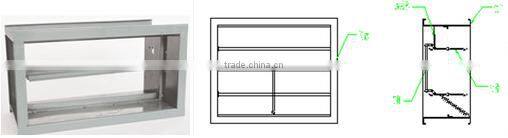

III. Fire Regulative Damper CFHT70 (280)

• Usually it keeps opening, fuse action temperature is 70°C(or 280°C)
• When airflow temperature inside the duct reaches 70°C(or 280°C), the fuse will melt, and damper closes automatically.
• Manually close available
• The damper has six grades to regulate air volume.
• The Damper can be reset manually.

IV. Fire (Smoke) Regulative Damper (with Signal) CFHTX 70(280)

• Usually it keeps opening, fuse action temperature is 70°C(or 280°C)
• When airflow temperature inside the duct reaches 70°C(or 280°C), the fuse will melt, damper closes automatically.
• Manually close available.
• Output electric close signal. The damper has six grades to regulate air volume.
• The Damper can be reset manually.

 V.  Smoke (Fire) Regulative Damper CFHTC70 (280)

• Usually it keeps opening, smoke (temperature) sensor outputs electric signal (DC24V) through control center when fire happens, actuator powers on, damper closes automatically, and output close signal.
• When airflow temperature inside the duct reaches 70°C(or 280°C), the fuse will melt, damper closes automatically.
• Manually close available.
• Output electric close signal, interlock with fan.
• The damper has six grades to regulate air volume.
• The damper can be reset manually.

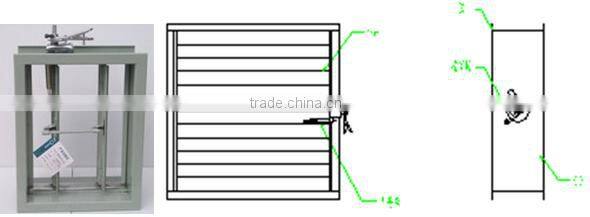

VI.  Automatic Fire (Smoke) Regulative Damper CFHTQ70 (280)

• Usually it keeps opening, smoke (temperature) sensor outputs electric signal (DC24V) through control center when fire happens, actuator powers on, damper closes automatically, and output close signal.
• When airflow temperature inside the duct reaches 70°C(or 280°C), the fuse will melt, and damper closes automatically.
• Manually close available.
• Output electric close signal, interlock with other fire equipment.
• The damper has six grades to regulate air volume.
• The Damper can be reset manually or elctrically.

Note:

1, When the air volume needs to be regulated, open to 90 degree, then adjust the regulative plate under the handle.

2, When the damper is electrically resetting, the motor should work untill it stops actomatically; Do no cut off the power supply when it is resetting.

VII.  Intelligent Automatic Fire Regulative Damper CFHTQZ70 (280)

• Usually it keeps opening, smoke (temperature) sensor outputs electric signal (DC24V) through control center when fire happens, actuator powers on, damper closes automatically, and output close signal.
• When airflow temperature inside the duct reaches 70°C(or 280°C), the fuse will melt, and damper closes automatically.
• Manually close available.
• Output electric close signal
• The damper has six grades to regulate air volume.
• Manually reset after damper works, or electric reset under power off.
• Interlock with fan, when the fan on, damper opens, fan off, damper closes.

VIII.  Smoke Damper CPY

Usually it keeps closing, smoke (temperature) sensor outputs electric signal (DC24V) through control center when fire happens, actuator powers on, damper opens automatically, and output open signal.

Manually open available.

Output electric open signal

Manually reset after damper works

IX.  Smoke(Fire) Damper CPY280

Usually it keeps closing, smoke (temperature) sensor outputs electric signal (DC24V) through control center when fire happens, actuator powers on, damper opens automatically, and output open signal. When smoke temperature reaches 280°C, damper recloses.

Manually open available.

Output electric open signal. Manually reset after damper works.

When smoke temperature reaches 280°C, damper recloses.

X.  Remote Control Smoke Damper CPYY

Usually it keeps closing, smoke (temperature) sensor outputs electric signal (DC24V) through control center when fire happens, the electromagnetism in the actuator powers on, damper opens automatically, and output open signal.

Remote manually open available.

Remote manually reset after damper works.

XI.  Remote Control Smoke(Fire)Damper CPYY280

Usually it keeps closing, smoke (temperature) sensor outputs electric signal (DC24V) through control center when fire happens, actuator powers on, damper opens automatically, and output open signal.

When smoke temperature reaches 280°C, damper recloses.

Remote manually open available.

Remote manually reset after damper works.

When smoke temperature reaches 280°C, fuse was melt, damper closes automatically.

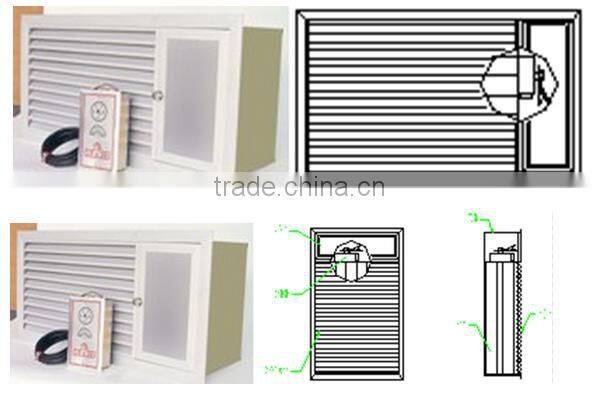

XII.  Fire ( Smoke) Air Outlet CFHFK70(280)

Usage: Fire air outlet combines aluminum monolayer regulated shutter and thin fire damper. It is widely used on the exit of supply air duct or Intake of return air duct in HVAC system, which has fire protection requirements. Normally it is installed in the side of duct, terminal of duct or on the wall, also can be used as air outlet for regulating air flow direction.

Features:

• Usually it keeps opening, when air flow temperature reaches 70°C (280°C), driven by shape memory alloy or action by temperature fuse, damper closes automatically.
• Used as air outlet to regulate the air flow direction.
• When the temperature gets normal, damper opens automatically.

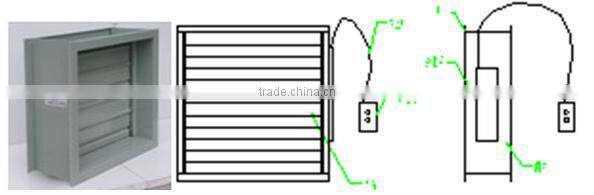

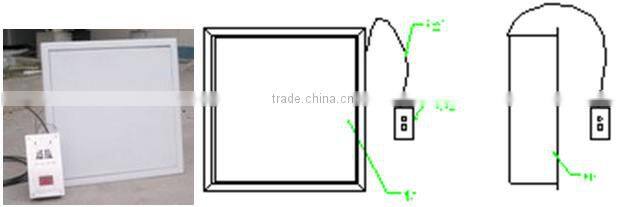

XIII.  Remote Control Panel Smoke Outlet CPYKB

• Usually it keeps closing, smoke sensor outputs electric signal (DC24V) through control center when fire happens, the electromagnetism in the actuator powers on, damper opens automatically, and output open signal.
• Remote manually open available.
• Manually reset, remote manual reset after damper works. (Remote electric reset available under total automatic).

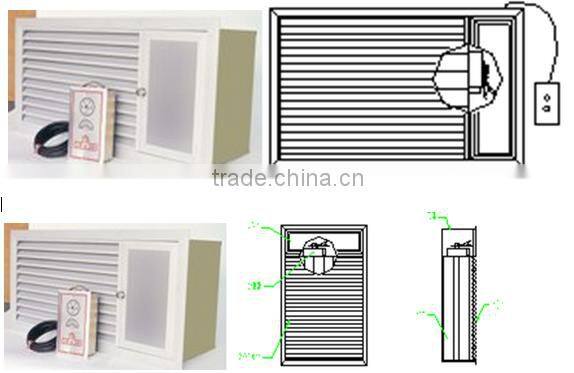

XIV.  Remote Control Horizontal (or Vertical) Smoke /Air Outlet CPYYK

• Usually it keeps closing, smoke sensor outputs electric signal (DC24V) through control center when fire happens, actuator powers on, damper opens automatically, and output open signal.
• Remote manually open available.
• Remote manually reset after damper works.

XV.  Horizontal (or Vertical) Smoke Outlet/ Air outlet CPYK

• Usually it keeps closing, smoke sensor outputs electric signal (DC24V) through control center when fire happens, the electromagnetism in the actuator powers on, damper opens automatically, and output open signal.
• Manually open available.
• Manually reset after damper works.
