Specifications
1.Six forming profiles are available2.Six functions in one machine
3.Suit for metal sheet process

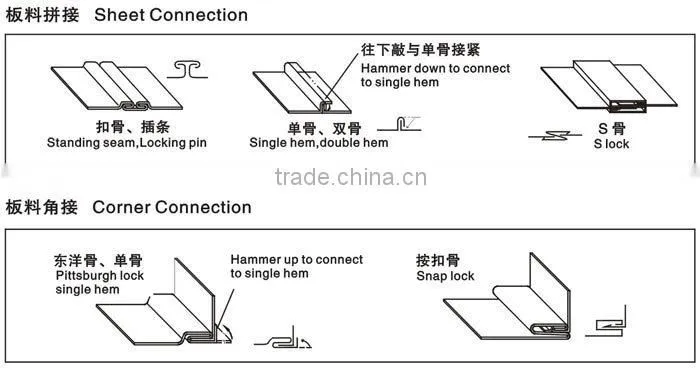

4.Forms C and S cleat
COMIFO Pittsburgh Lock Former,also called 1.pittsburgh lock former machine.lockformer.pittsburgh lock former, is a versatile machine which allows you to perform the most common applications with one machine!
Specifications:
√ No adjustment for material 18-27ga (0.4-1.2mm)
√ Arc welded steel stand, heavy top plate

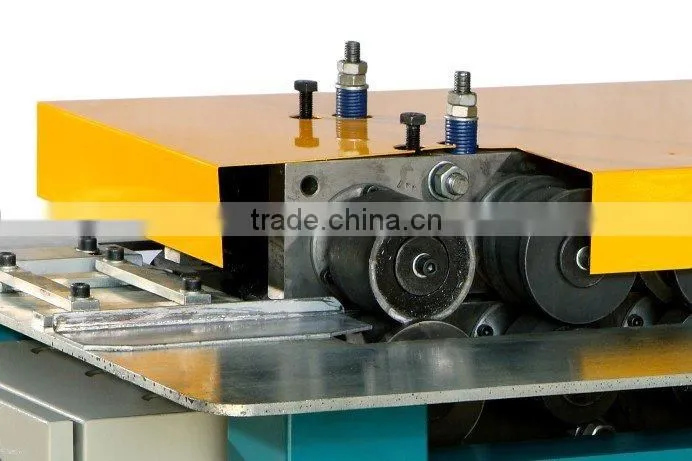

√ Roller material: GCr15
√ Roller shaft material: Thermal refined 45#
√ Transmission: V-belt

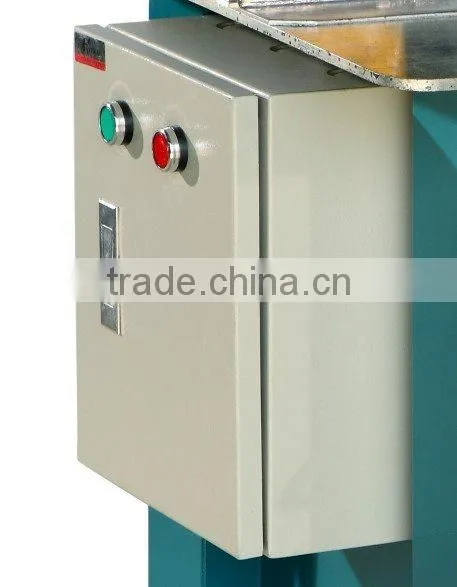

√ Control: Normal electric control
√ Motor : 1.5KW,
√ Speed: 26 FPM(9M/min)
RF-12DR

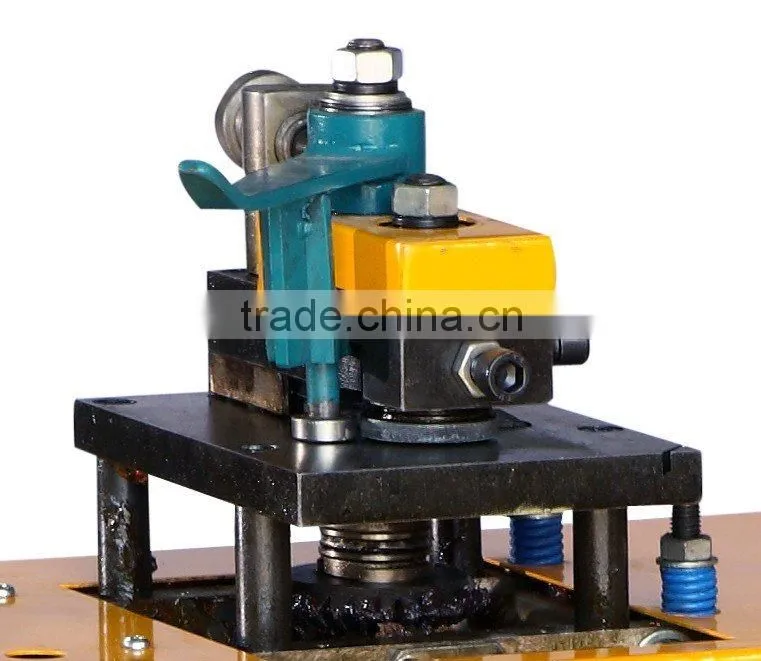

This 9-station lock former offers 6 forming positions, Pittsburgh and auxiliary double seam(ACME),right angle flange, drive cleat (size of 25mm) with slitter, as well as top mounted power flanger.
RF-12M
RF-12M is featured of S cleat rollers. It has pittsburgh, double seam (ACME), as well as drive cleat (size of 28mm).
RF-08S/RF-12S (BUTTON LOCK)
Button Lock is the most popular lock former of HVAC workshop. The Button Lock roll former comes with "male" tooling on one side and "female" on the opposite side. A fast, effective way to rollform Male & Female Button Lock in one machine.
Model No. |
Thickness Range |
RF-08S |
0.4-0.8mm (22-30ga) |
RF-12S |
0.8-1.2mm (18-22ga) |
RF-08B
Snap Lock is a special lock former designed for round/oval pipe.
9-station machine which fabricate both male and female forms for reeves-type snap lock with thickness range of 22-31ga. Each lock is formed on flat sheets with no restriction on the diameter of the finished pipe. This type of lock is more air-tight with better seam.
