Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
(L*W*Hmm) Floor Space |
CAL5-1.2x1300 |
1300mm
|
0.4-1.2mm (18-30ga)
|
0-18m/min (0-59FPM) |
±0.5mm |
±0.5mm |
12900*4200*1400 |
CAL5-1.2x1600 |
1600mm
|
12900*4200*1400 |

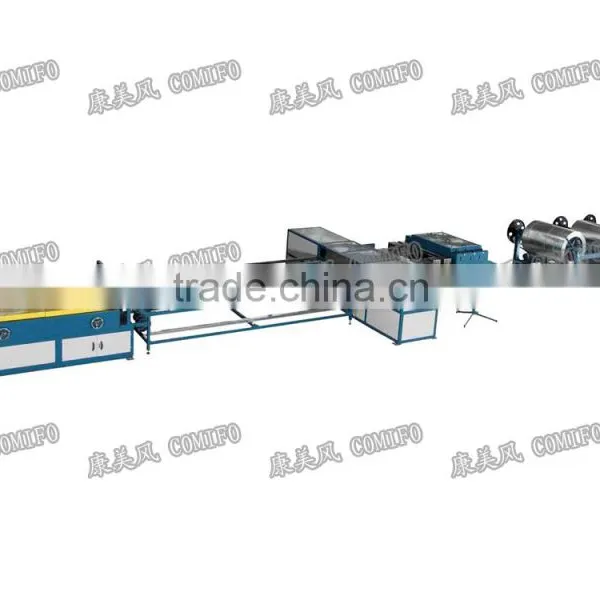

Compact Line V consists of cradle style decoiler, straightening, beading, punching, notching, hydraulic folding, hydraulic shearing and automotion pittsburgh lock forming, coil conveyor, duplex TDF flange forming and hydrauli TDF folding. It processes maximum coil width 1300mm or 1600mm galvanized steel for 18 to 30 gauge material into blank for TDF integrated flange duct, TTF/LT mate flange duct or angle iron flange duct.
Features:
l Modular design allows adding a section at a time
l Two sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
l Straightening/flattening - Pneumatic controlled straightener
l Pneumatic controlled ring type beading rolls with five beading rings-which can be removed
l Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
l Duplex TDF flange former, forms TDF flange by double sides
l Optimizes floor space by inline position of machines, guarantees high efficiency
l Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Other Specific Features of Comifo Coil Line:
- 1. Formula Programmed, which insure setting and producing different sizes, different quantities in one time.
- 2. Coil Draw Back, draw back coil is not needed; Comifo coil line can draw back the coil automatically for further prodution, which saves time and no waste material.
Stations: coil-straightening-beading-punching square-notching-shearing-folding-automotion pittsburgh lock forming-coil conveyer (optional)-duplex TDF flange forming -hydraulic folding
- 1. Cut to length or cut blank for plasma cutting machine
2.1 Punching and notching for “C” “S” cleat duct. It can cut different types of notches such as ”L”, “U” and “square”. It can also cut blank for “C” and “S” cleat flange machine.
2.2 Manufacture TDF flange duct automatically.
2.3 Cutting blank for angle iron flange or “Z” shape flange machine.Used with a vertical seaming machine to get a full wrap duct.
3. Cutting blank for TTF/LT mate flange. Used with a vertical seaming machineand mate flange machine to get a full wrap duct.
With coil conveyer: the length of coil conveyer is 4000mm, which limits single sheet metal plate of the duct may not longer than 4000mm.
Without coil conveyer: no limitation for the duct size.
