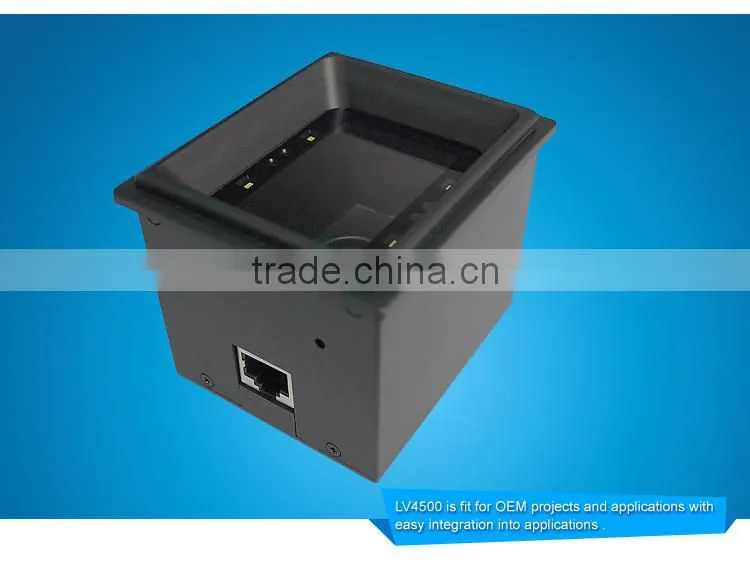

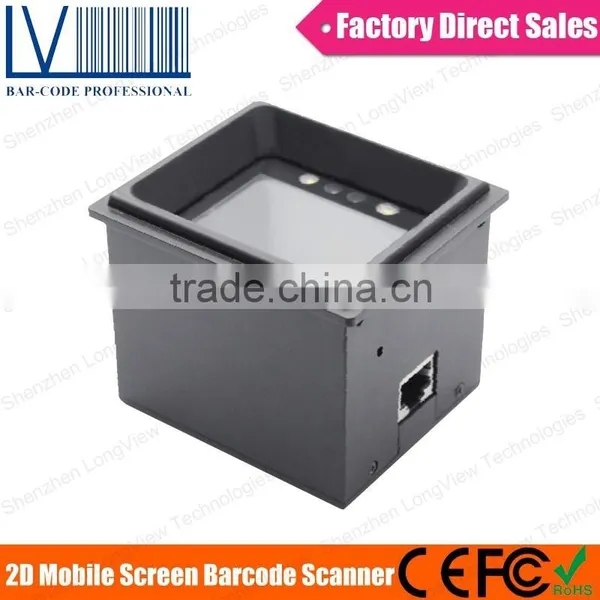

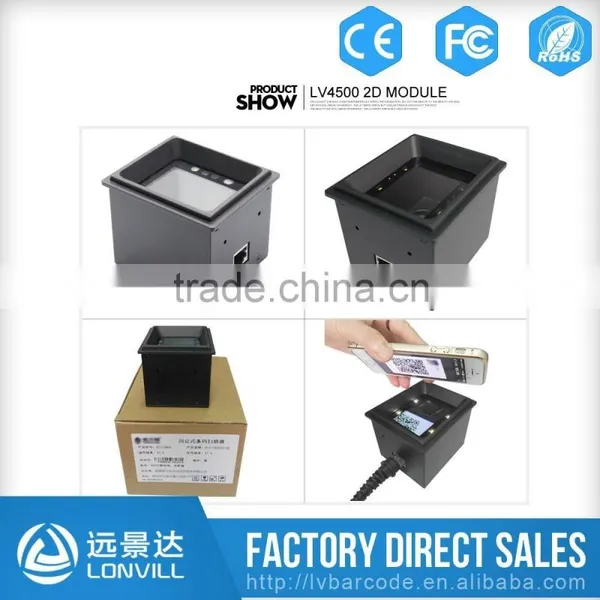

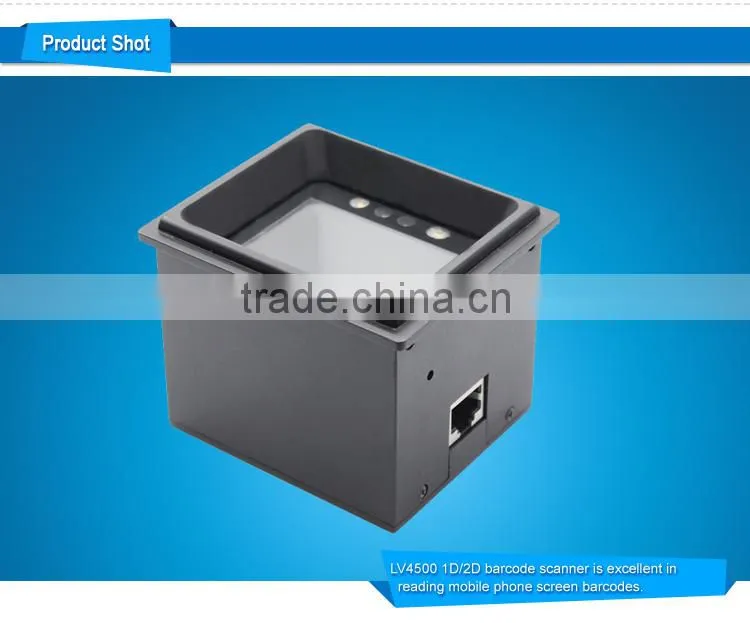

LV4500 NEW Mobile Phone Screen
1D 2D Barcode White LED QR Code Scanner USB

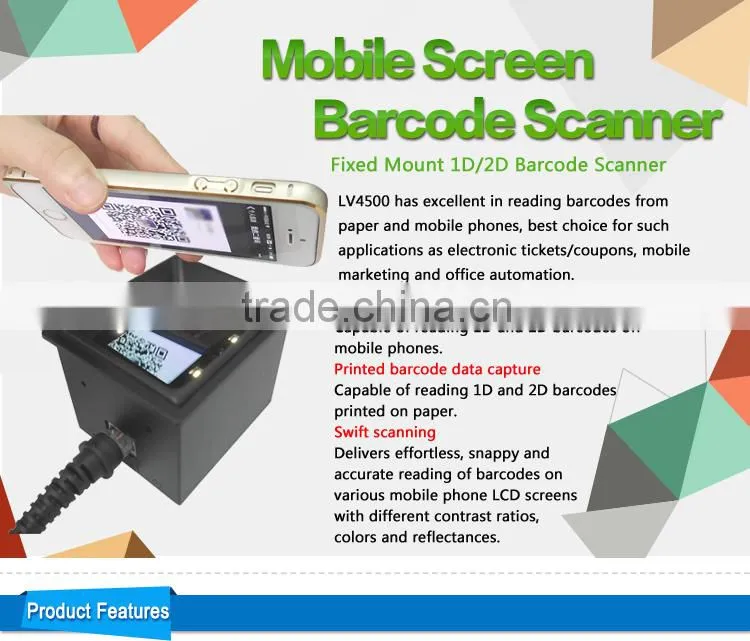

Product Features:
1. Digital barcode data capture

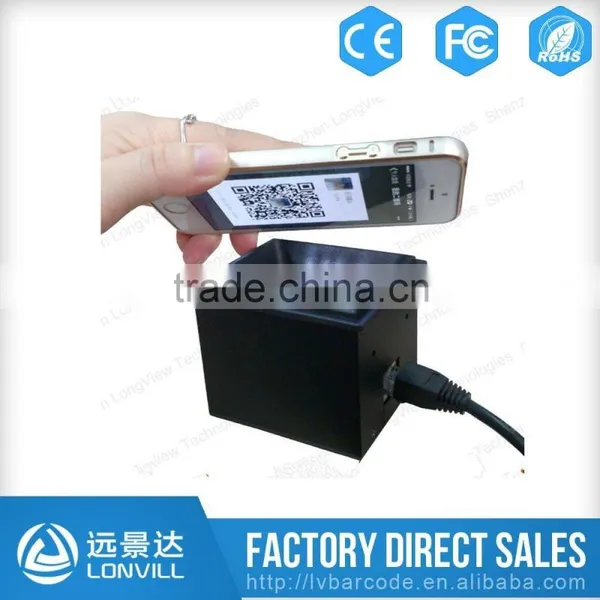

Capable of reading 1D and 2D barcodes off mobile phones.

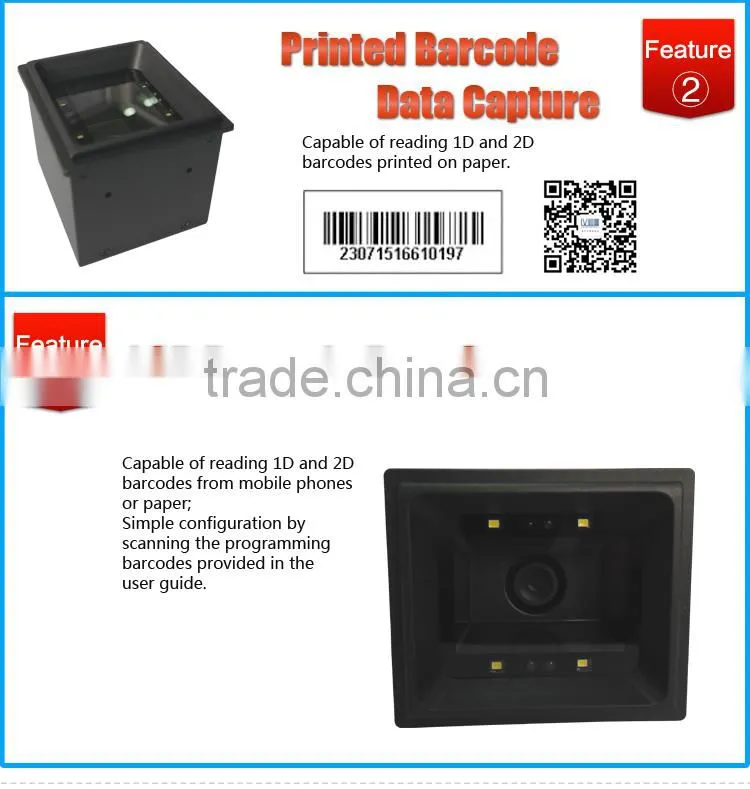

2. Printed barcode data capture
Capable of reading 1D and 2D barcodes printed on paper.
3. Swift scanning
Delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios, colors and reflectances.
4. Easy to use

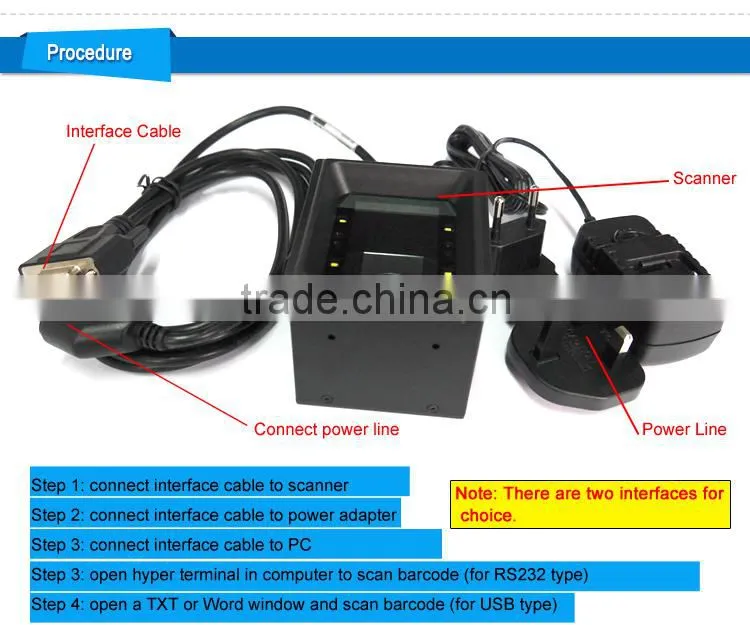

Simple configuration by scanning the programming barcodes provided in the user guide.
| Performance | |
| Image Sensor | 752×480 CMOS |
| Light Source | White LED |
| Symbologies |
2D: PDF417, Data Matrix, QR Code
|
| Reading Precision | 10 mil |
| Depth of Field |
UPC-A: 55-245mm (13mil) PDF417: 50-155mm (6.67mil) Data matrix: 45-160mm (10mil) QR code: 45-235mm (20mil) |
| Symbol Contrast | ≥30% |
| FOV | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° |
| Scan Window | 38.3mm*60.4mm |
| Mechanical/Electrical | |

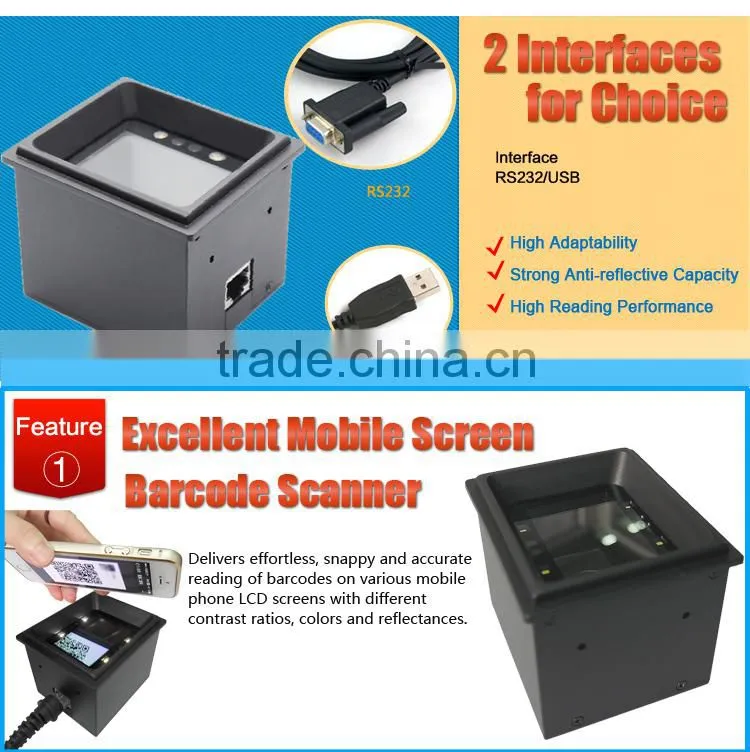

| Interface | RS232; USB |
| Power Consumption | 1.75W (max.) |
| Power Adapter | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |

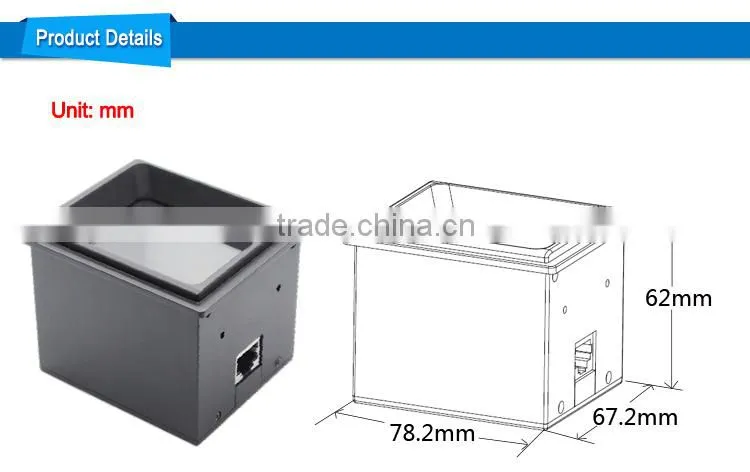

| Dimensions | 78.2mm(L) X 67.2mm (W) X 62mm(H) |
| Weight | 300g |
| Environmental | |
| Operating Temperature | -10℃ to + 50℃ |
| Storage Temperature | -20℃ to + 60℃ |
| Humidity | 5 to 95% RH (non-condensing) |
| Ambient Light | 0-100,000 lux (natural light) |
| Certificate | FCC Part15 Class B, CE EMC Class B |
Payment
1.We can accept T/T and Western Union and Money Oder,the best way is direct online payment,you can choose yourself.If you want other payment terms please let us know before when you oder.
2.Full payment must be made within 7 days after placing your oder,or the oder will be invalid or canceled by the system.
3.Make sure that you have completed all the detailed information like cantact person,address,post code and telephone number when filling in your buyer's information.
Shipping
Note:DHL/Fedex express usually takes about 3-5 working days to the destination.And it is about 5-8 work days by EMS or TNT.Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 to ship to worldwide.
1.We will send the goods within 3 business days after the full payment has been confirmed.If the payment is not availible,your oder will be closed automatically.
2.The buyer are responsible for any insurance problems and damage which caused by shipping service such accidents,delays or other issues.Besides the buyer should to be responsible for any tax and/or duty charged by their country.And the goods will be marked as "GIFT" or "SIMPLE" for your easy customs clearance and less charge.(If you want to declare the goods as other item name,or specify an value for custom,please inform us when making the oder)
Return and Warranty
1.All the goods are inspected before shipment,so if you are not satisfied with the purchase,you can exchange the items in one week and you must contact us within 24 hours of the receipt of your purchase.
2.The shipping and handling change is not refoundable and customer should be responsible for all the charges of returning and reshipping.
3.All return items must be in its original conditions,including box and accessories.Men made defects are not guaranteed,such as broken ,scratched and so on.
4.For any items,please send by EMS or your local post when send back.
Feedback
1.Buyer's early confirmation will be highly appreciated after recieving the items.
2.Since your feedback is very important to our business's development,we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service.It will just take you 1 minute,but this 1 minute has the extremely vital significance to us.
