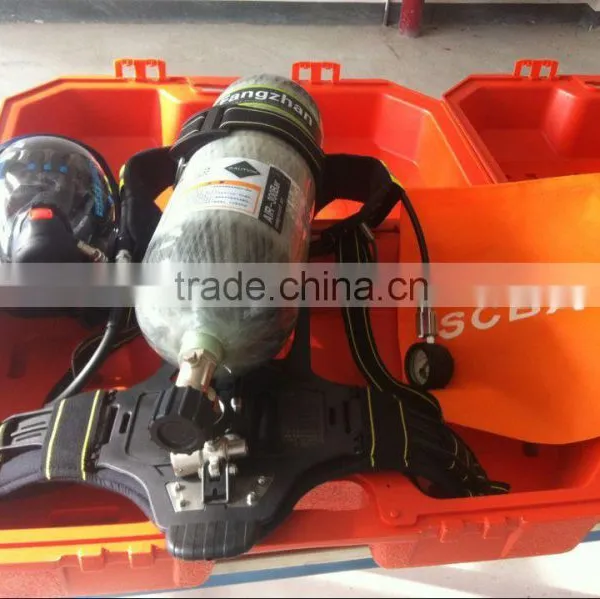

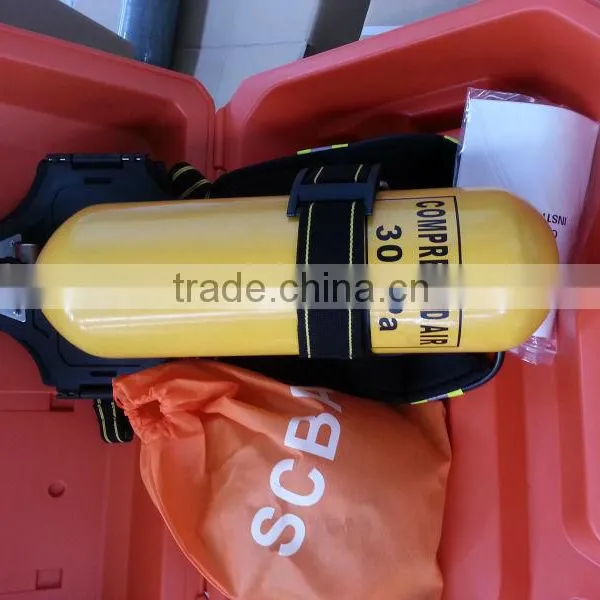

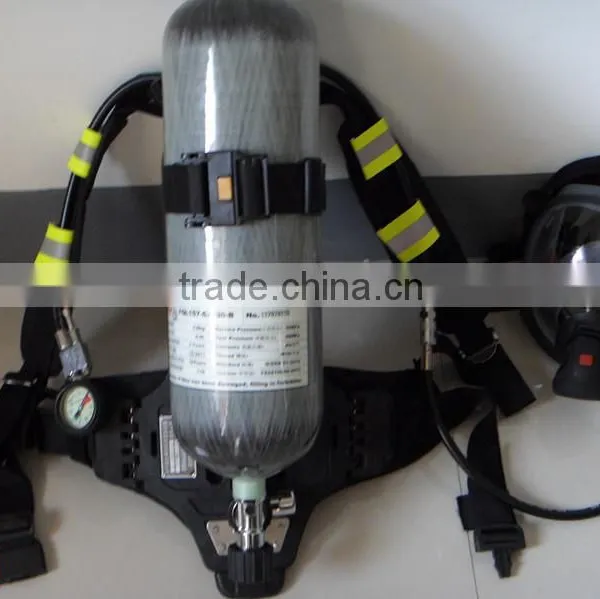

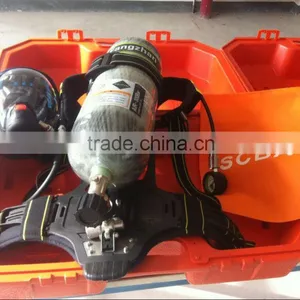

Breathing Apparatus SCBA

Specifications

air breathing respirators
Working pressure:30Mpa
Hours of use:one hour





1.Technical Specifications:







It is composed of high-strength aluminum alloy liner and fully wrapped
carbon fiber composite material, which is high strength, light weight.
for protecting your respiratory system against irrespirable toxic/oxygen
deficient atmosphere.
Service time: It depends on the amount of compressed air and
the air consumption of the user and the air consumption depends
on the user’s work nature.
Operating condition: Very high: 60°C + 3°C; Very low: -30°C + 3°C
Air consumption: 5 L/ minute
Cylinder Filling Pressure:200 Bar Min.
Frequency: 3800HZ
Alarm: Whistle sounds at 50 +- 5 Bar.
Self Life: 20 years





Specification:



Model	Cylinder volume (L)	Working pressure (MPA)	Air storgare capacity (L)	Alert pressure (MPA)	Service time (min)	Weight (kg)	Package size (cm)
YTKY-5/30	5	30	1500	5-6	50	≤14	77X30X49
YTKY-6/30	6	30	1800	5-6	60	≤15	77X30X49
YTKY-6.8/30	6.8	30	2040	5-6	60	≤10.5	77X30X49
YTKY-6.8X2/30	6.8X2	30	4080	5-6	120	≤17	77X30X49
YTKY-9/30	9	30	2700	5-6	90	≤11.5	77X30X49







.
