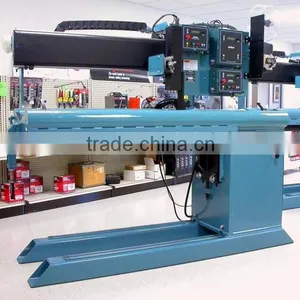

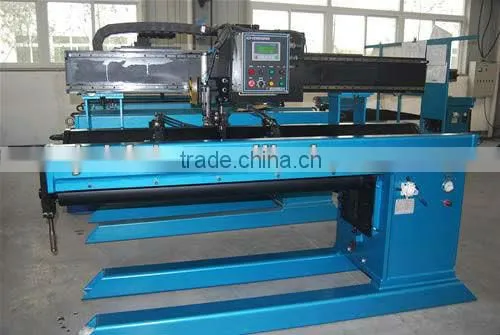

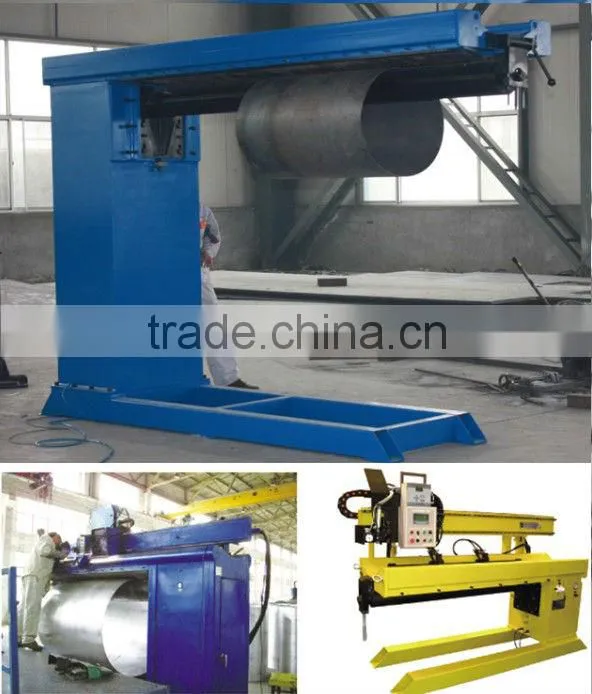

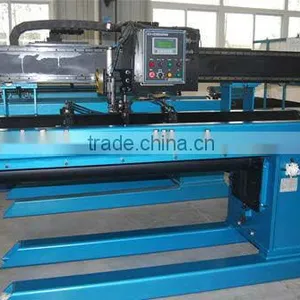

Automatic Longitudinal Seam Welding Machine/Automatic welding machine
Automatic Longitudinal Seam Welding Machine is a gerneral automatic welding machine which can complete the welding of thin cylinder,cone tank, plate and square box with one open mouth with thickness 0.5-5mm characterized good-quality, high efficiency and distortionless. Automatic Longitudinal Seam Welding Machine can be used to weld carbon steel, low alloy steel,stainlesss steel , aluminum and its alloy and so on. Argon arc welding (wire filling or not filling) gas metal arc welding ((CO2/MIG/MAG), plasma welding are optional to complete one set of longitudinal seam welding system.
Automatic Longitudinal Seam Welding Machine is widely used to aerospace vehicles,thin-walled pressure vessel,auto spares parts,household appliance ,medical devices ,architectural ornament ,food machinery and other industries which need longitudinal seam welding.
Main technical parameters of automatic longitudinal seam welding machine
ZF-2000
Workpiece thickness (mm) |
0.5~5 |
Workpiece effective length (mm) |
≤2000 |
Workpiece max diameter (mm) |
∠850 |
Workpiece min diameter (mm) |
≥180 |
Sliding plate moving speed (mm/min ) |
0-2000 |
Sliding plate moving precision (mm) |
0.5 |
Welding torch pneumatic lifting stroke (mm) |
100 |
Manual adjust distance x,z (mm) |
100 |
Overall dimensions (mm) |
2900x1050x2100 |
Weight (kg) |
2300 |
Power (KW) (excluding welding machine) |
1.0 |
ZF-1500
Workpiece thickness (mm) |
0.5~5 |
Workpiece effective length (mm) |
≤1500 |
Workpiece max diameter (mm) |
∠730 |
Workpiece min diameter (mm) |
≥150 |
Sliding plate moving speed (mm/min ) |
0-2000 |
Sliding plate moving precision (mm) |
0.5 |
Welding torch pneumatic lifting stroke (mm) |
100 |
Manual adjust distance x,z (mm) |
100 |
Overall dimensions (mm) |
2400x950x2100 |
Weight (kg) |
1700 |
Power (KW) (excluding welding machine) |
1.0 |
ZF-1000
Workpiece thickness (mm) |
0.5~5 |
Workpiece effective length (mm) |
≤1000 |
Workpiece max diameter (mm) |
∠730 |
Workpiece min diameter (mm) |
≥115 |
Sliding plate moving speed (mm/min ) |
0-2000 |
Sliding plate moving precision (mm) |
0.5 |
Welding torch pneumatic lifting stroke (mm) |
100 |
Manual adjust distance x,z (mm) |
100 |
Overall dimensions (mm) |
1750x900x2050 |
Weight (kg) |
1250 |
Power (KW) (excluding welding machine) |
1.0 |
l Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .
l Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine
l one year warranty, life-long maintenance services through email or telphone .Please feel free to use.
l Supply all kinds of accessories and replacement.
1. 12 MONTHS
2. prompt technical support immediately when you required
1. sea worthy package with film and wooden case or as per your requirement
2. photos will be taken and sent to you before ,during and after package
WELCOME TO VISIT OUR FACRTORY
IF YOU HAVE ANY QUESTIONS ,PLEASE FEEL FREE TO CONTACT US, WE ARE ALWAYS AT YOUR SERVICE
If you have any questions, please feel free to contact us, we are always at your service!
Skype:huafei0531
Tel:0086-15053136913
