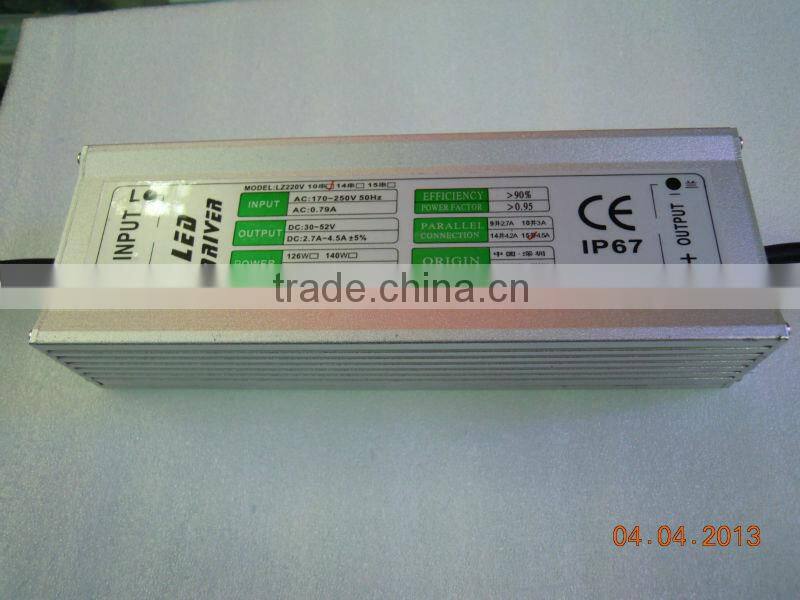

2700mA Constant current led driver 150W Waterproof ac/dc power supply
- 30000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | tresun/oem | Model Number: | LZ220V150W |
Output Power: | Other, 150w 2700mA-4500mA | Output Type: | Single | Input Voltage: | Other, 85-265Vac |
Output Voltage: | 30-52Vdc | Output Frequency: | 50-60Hz | Output Current: | 2700mA-4500mA option |
Product Description
Specifications
1, 2700mA constant current driver 150w2, 85-265vAC input
3, 30-52v output
4, 100% burn-in test
5, 2 year warranty
150w led driver constant current waterproof 3000mA 10 series and 15 parallel
OEM and ODM service is available and tech support for your circult and light source design
Model Number | LZ220V150W |
Place of Origin | China |
Brand Name | tresun |
Output Power | 10 in series and 15 in parallel |
Output Type | Single |
Input Voltage | AC 85-265V |
Output Voltage | DC 30-52V |
Output Frequency | 50-60Hz |
Output Current | 3000mA |
Power Factor | 0.7-0.95 (optional) |
LED Connection Type | COB LED, integrated high - power |
Color | Silver or Grey |
Material | Aluminum, PC |
Size | 229x70x43mm |
IP Rating | IP67, waterproof, dustproof |
Lifespan | 30,000-50,000 hours |
Warranty | 2 years |
Certificate | CE, RoHS |
Feature
Waterproof Constant Current LED Driver 150w 2700mA-4500mA from tresun
.International full-range input voltage
·Protection: shortcircuit/overload/overvoltage/overheat
·Natural air cooled
·100% full load aged
·Idle power < 1.1W
·All capacitors are 105°C long-life electrolytic
·Capacity of surge of 300VAC: 5 seconds
·Working temperature up to 70°C
·Passes 5G vibration test, 150w 3000mA led driver
·High efficiency, long life & high reliability
· High quality, high efficiency>85%
· Waterproof, dustproof, IP67
· With CE certificate, complied RoHS standard
· Over-heat, short-circuit & over-load protection with self-setting
· Rigorous ripple and low noise
·2-year warranty for 150w led driver 3000mA constant current
Very lower cost and fast delivery, wholesale and ship from factory, feel free to constact us today, sample and datasheet are available upon requested
Advantage:
1, The factory entered the waterproof LED Power Supply and industirial driver at the very begining in China mainland
2,10 years focus on the LED Power Supply Research and development, Production
3, Serviced customers both in China mainland and overseas markets all over the world, no moq for constant current led driver
4, High reliability and good stability, for many kinds of large-scale outdoor lighting project
5, LED driver is the heart of the LED lamps and transformers is the core component of LED Power Supply. For control the quality, we made the transformer by professional factory, this also for the power supply is stable and reliable
6, Complete certification, UL, CE, SAA, EMC etc., no moq and fast delivery for constant current led drivers
7, Electrolytic capacitors and other components are made of giant brand, high-end products with Ruby etc.
8, After-sale guaranteed, real integrity transactions, 1:1 replace the faulty item, but many small factory often irresponsible when face the quality problem
9, Strictly process control, even same techniques, the same material, follow the process we are not the same, we think and do more for our customers in led driver field
10, Strong r&d team, r&d team has more than 30 people and fast response if any technical problem occur
11, Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery within 3 days if have semi-finished products in stock
12,Compare with MeanWell, we have competitive price and short lead time and much more care of your need, contatc us today for constant current led driver 150W 300mA
