Specifications
1, 36w 600mA constant current driver2, 85-265vAC input
3, 45-64v output
4, 100% burn-in test
5, 2 year warranty
36w led driver constant current waterproof 600mA 15 to 18 series and 2 parallel
| Model Number | LZ220V36W |
| Place of Origin | China |
| Brand Name | tresun |
| Output Power | 15 to 18 in series and 2 in parallel |
| Output Type | Single |
| Input Voltage | AC 85-265V |
| Output Voltage | DC 45-64V |
| Output Frequency | 50-60Hz |
| Output Current | 600mA |
| Power Factor | 0.7-0.95 (optional) |
| LED Connection Type | COB LED, integrated high - power |
| Color | Silver or Grey |
| Material | Aluminum, PC |
| Size | 105x41x30mm |
| IP Rating | IP67, waterproof, dustproof |
| Lifespan | 30,000-50,000 hours |
| Warranty | 2 years |
| Certificate | CE, RoHS |
Feature

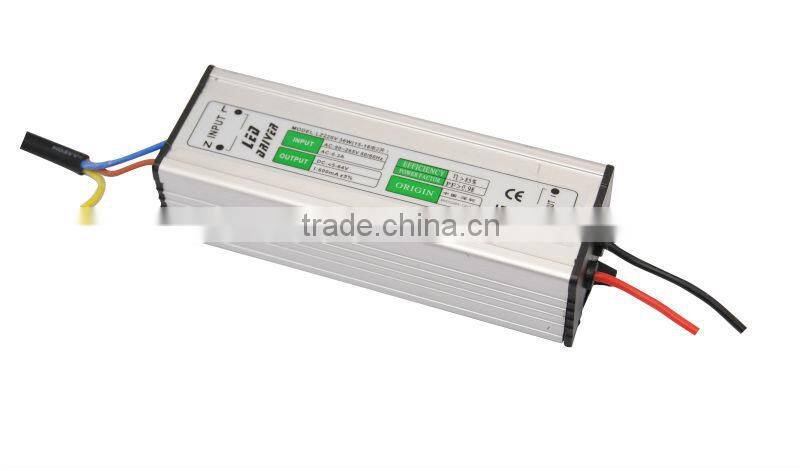

Waterproof Constant Current LED Driver 36w 600mA from tresun
.International full-range input voltage
·Protection: shortcircuit/overload/overvoltage/overheat
·Natural air cooled
·100% full load aged
·Idle power < 1.1W
·All capacitors are 105°C long-life electrolytic
·Capacity of surge of 300VAC: 5 seconds
·Working temperature up to 70°C
·Passes 5G vibration test, 36w 600mA driver
·High efficiency, long life & high reliability
· High quality, high efficiency>85%
· Waterproof, dustproof, IP67
· With CE certificate, complied RoHS standard
· Over-heat, short-circuit & over-load protection with self-setting
· Rigorous ripple and low noise
·2-year warranty for 36w led driver 600mA constant current
Very lower cost and fast delivery, wholesale and ship from factory, feel free to constact us today, sample and datasheet are available upon requested
