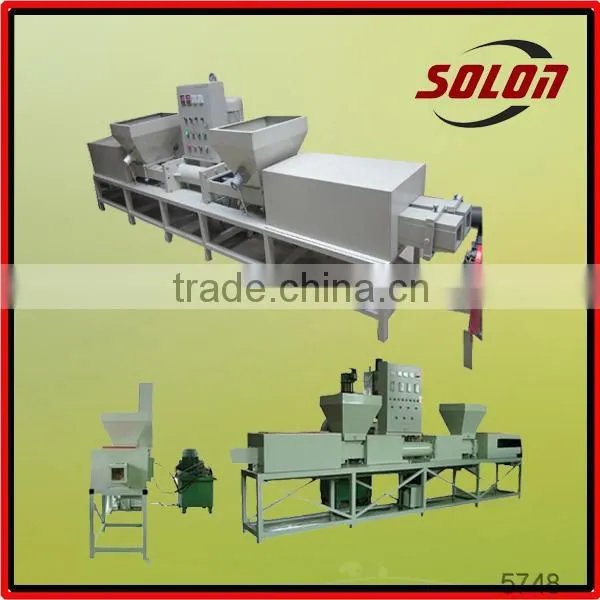

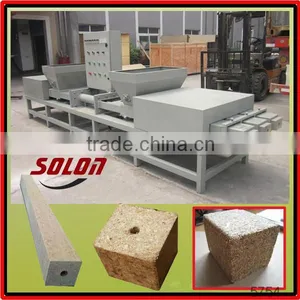

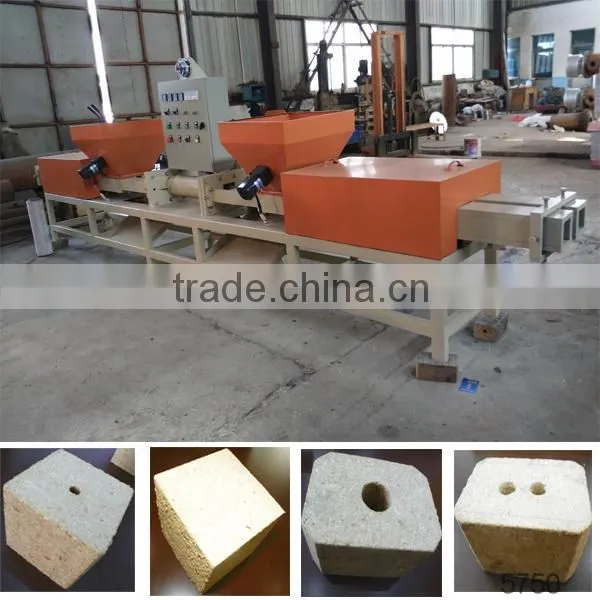

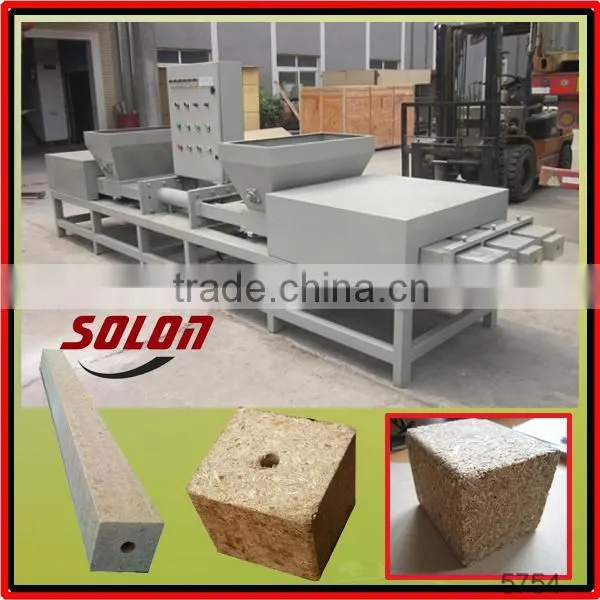

Eco-friendly hot press machine for wood sawdust block
- 100 Set / Sets per Month
- Qingdao or Shanghai
- T/T Credit Card PayPal
- advanced design easy operation mushroom slice cutting machine
- advanced design easy operation shitake slicer machine
- advanced design easy operation spiral vegetable slicer
- advanced design easy operation automatic vegetable mushroom slicer
- advanced design easy operation multifunctional vegetable cutter
- advanced design easy operation vegetable slicer/mushroom slicer
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | SL |
Model Number: | SLWP | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Application

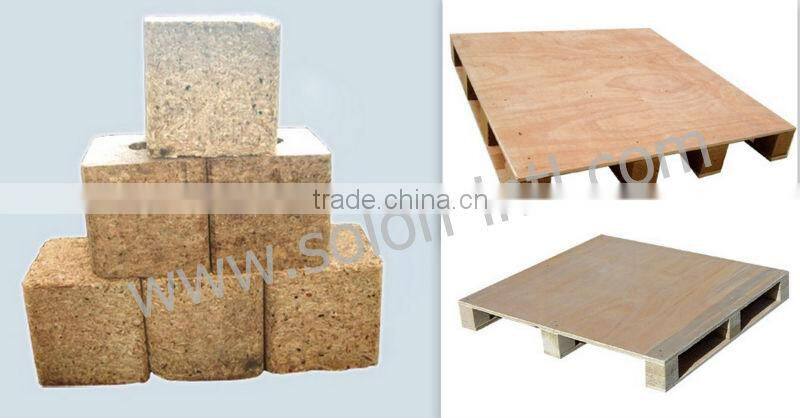

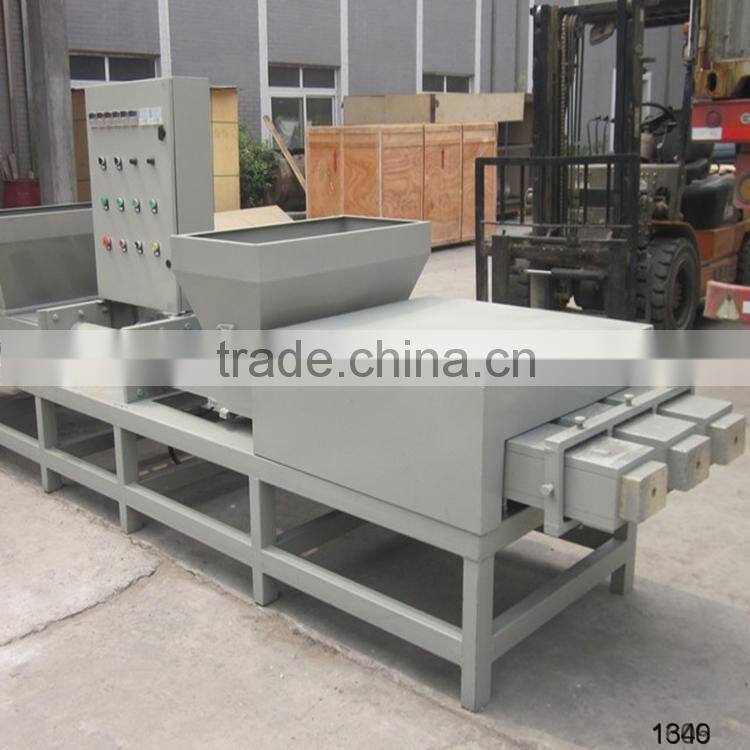

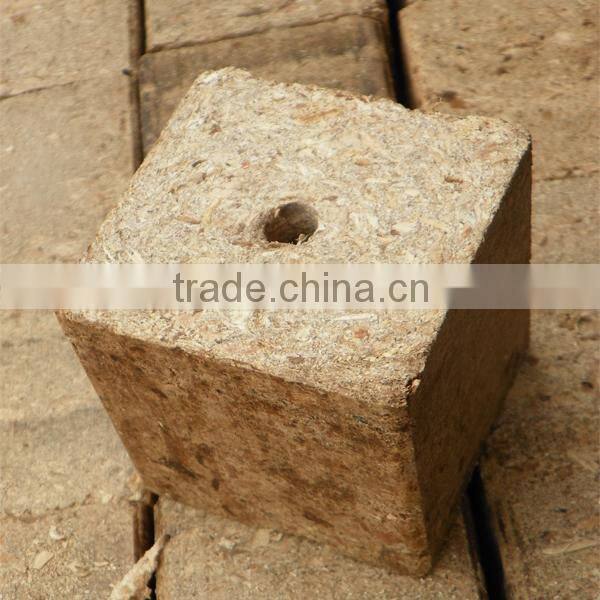

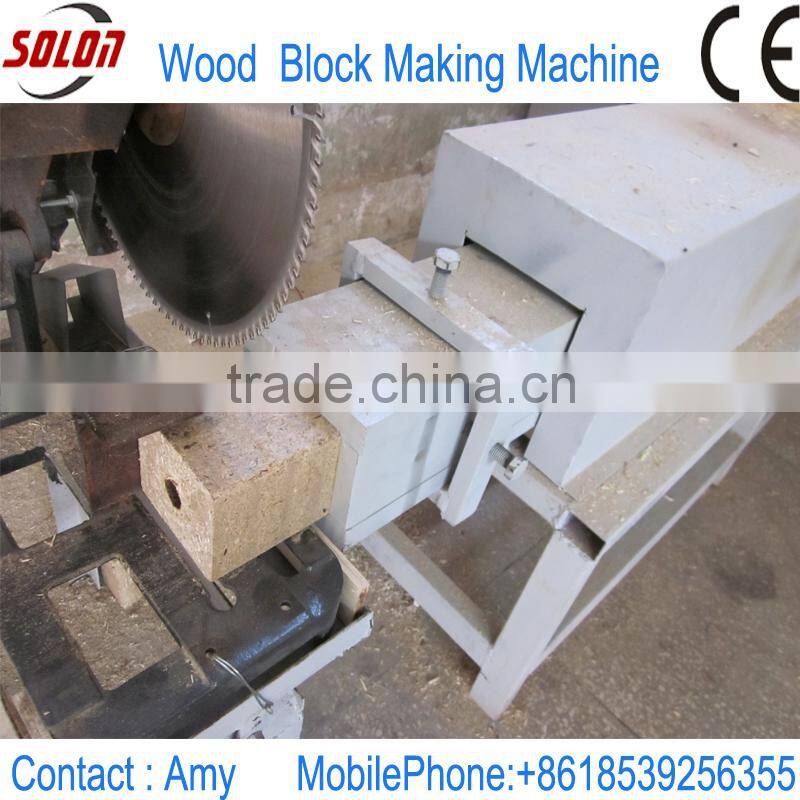

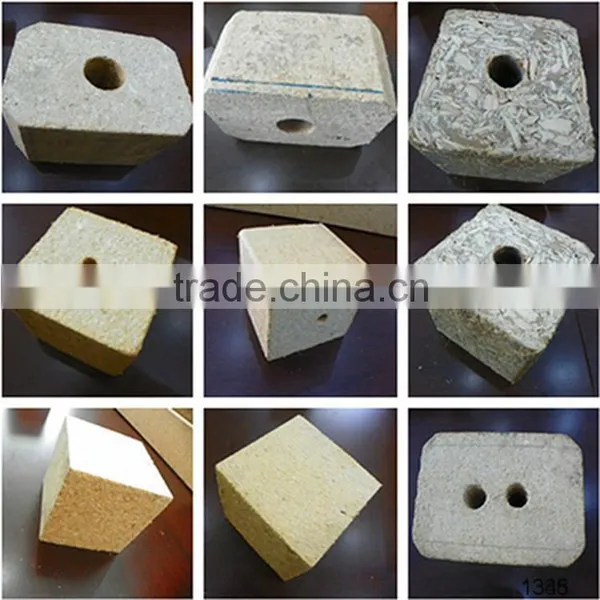

Wood block machine is the new designed machine with high quality,that produced blocks have smooth surface and water-proof,which can be in water for 48hours without breaking.Also the blocks have strong power to hold nails and inner strength to 1.07Mpa,that is the vertical power is 1590N and horizontal power as 1660N.And the blocks are exempted and smoked-free when exported,which are perfect materials for pallet feet instead of real wood pallets. We can make the block mould as customer request.
Main Features
1) Compared with plywood, it has the unified specifications, consistent appearance, improved appearance and product quality;
2) smooth surface, no need polish; waterproof (no cracking soaked in water for 48 hours and exposed to the sun and wind ). Different from the entire board cut of wood piers, surface roughness easily dregs;
3) Uniform heated and the glue completely cured, high strength;
4) Smooth surface water impermeable, with wood shavings fiber itself binding force, so that the product has excellent water resistance.
5) As the raw material itself has much crude fiber, with strong structure, so it is not easy to cracking after nailing.
6) We can customized the different size molds according to customers’ need, the product our machine made is non fumigation for exporting, formaldehyde emission (E2 can provide SGS) are in line with national standards.
7) The equipment has less investment, less than one third of the cost of an ordinary press machine. Due to different production process principle,the gloss and waterproof of the block is much better than which made of thick wood shaving press and sawdust board.
Machine Parts

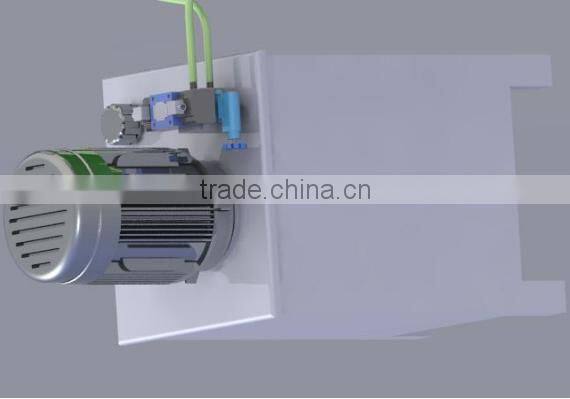

Name: The hydraulic station
The driving force of wood block machine is provides by small hydraulic station, this hydraulic station is small, delicate appearance, energy saving and low prices, the using of Operation is also simple
Machine Parts

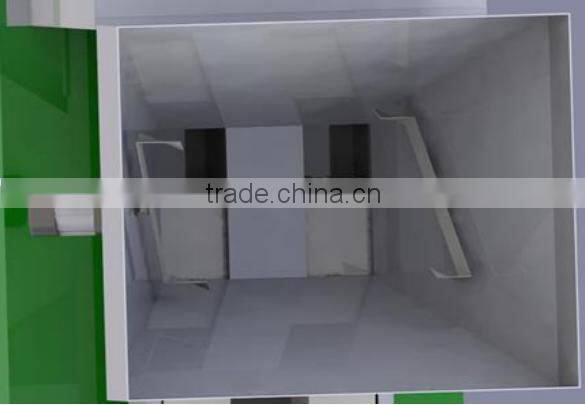

Name: Under the hopper
Each hopper has two Feed blades, driving by small motor , prevent the imported material vacancy, Feeding blades machine is discontinuity rotational, residence time is controlled by electrical box of time relay, generally the round disc pointer set to 2-5 seconds, According to the final product determined
Machine Parts

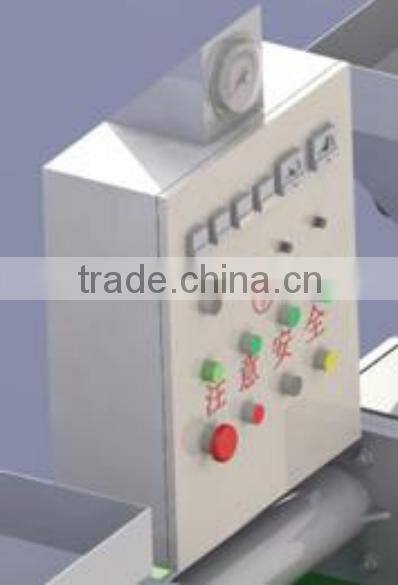

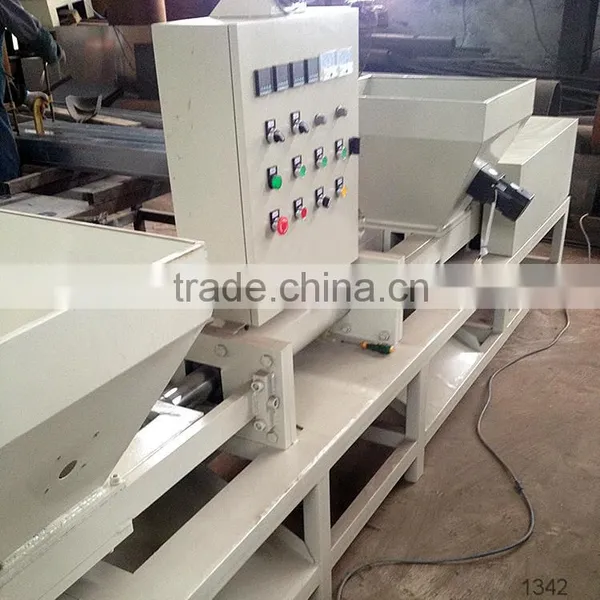

Name: Electric cabinet
Electric cabinet contains multiple low voltage switch equipment and related control, measurement, signal, protection, control equipment, used to control the host of the overall operation,Each button has the following note instructions, the operation is simple
Machine Parts

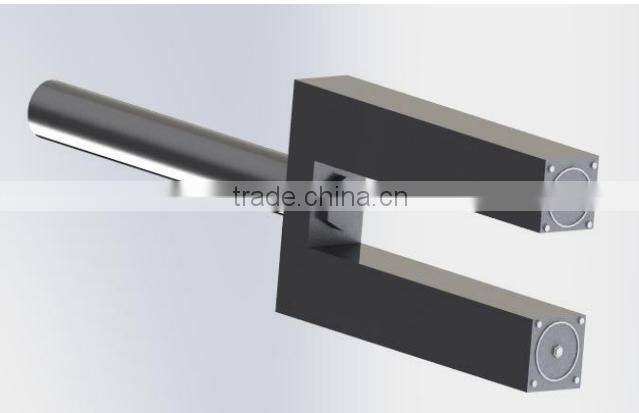

Name: Push rod
Double head Mold core, drive by hydraulic cylinder , will push Mold core press the sawdust to extrusion molding, in addition,we also have single core and three cores,Each device has two sets of equipment.
1. Is the time of hydraulic piston can be controlled,like increase or reduce?
Answer:Yes,the time can be controlled,just adjust the time relay in cabinet.
2. The temperature can be increase or reduce for each head?
Answer:Just set the temperature according to the output blocks and it will automatically keep constant temperature.
3. Glue info
Answer: The glue adding volume is about 15%-22%,and will depend on the raw materials and glue quality.
4. Is other adhesive to add during mixing glue?
Answer:No.
5. Is any wax to add for products more beautiful?
Answer:will depend on the custom request.If need,can add some.
6. Which part is easy ware out?
Answer:the main part no easy damage.Spare parts are some small electric elements,like travel switch,small relays and so on.
7. Is there any part to change often?
Answer:no parts need to change often,except the spare parts.
8. If spare parts need to change,how long can I get it?
Answer:If buy in local market,it’s easy,if we send to you,it will take about 7days.
9. The machine can add screw feeder?
Answer: now the machine is feeding by manual,but if you need,we can make for you.
10.Is the block can be without hole?
Answer:yes,the output block can be with hole or without hole.
11.If with hole,what is the hole size?
Answer:It will depend on your block size and your request.
12.What should we do after machine stop?
Answer:When process stop,let the piston in center;then clean the materials in mould and add lubricating oil.
13.What is the warranty?
Answer:one year

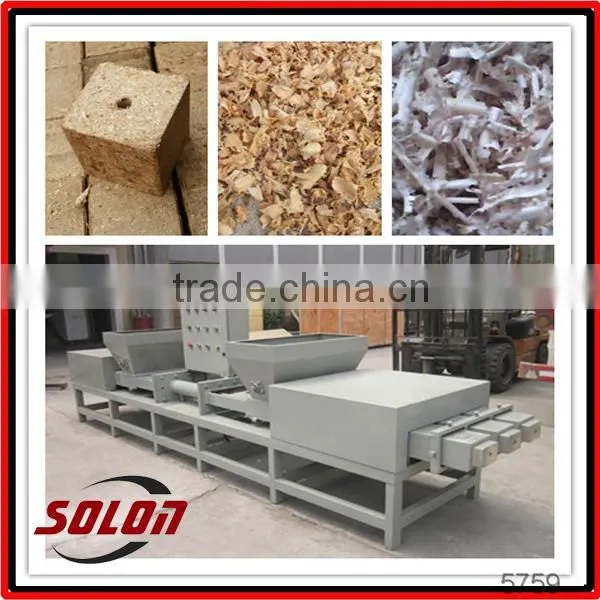

15.Is only sawdust or powder can make block?
Answer:Not good,it’s better to add half wood shavings for strength.
16.What is raw materials size and moisture?
Answer:The raw materials is better at 1*1cm,and moisture is about 10%.If over,it’s better to day.
17.What is the block density?
Answer:it’s usually 550-600kg/m3,but it depend on your request.
18.What is processing temperature?
Answer:it’s about 195-200.
19.What is processing pressure?
Answer:it’s usually 5Mpa,no over 7Mpa.
20.What is the load capacity for output blocks?
Answer:the static capacity is 3-4t,and load capacity is 2-3t.
