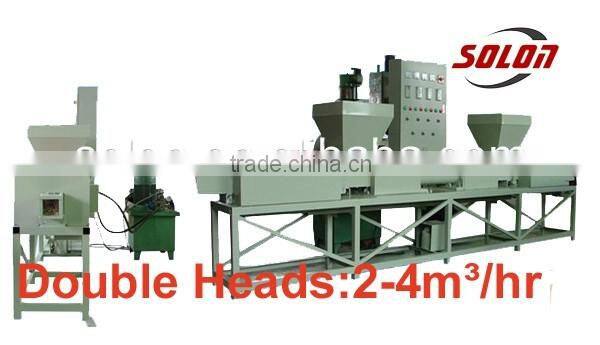

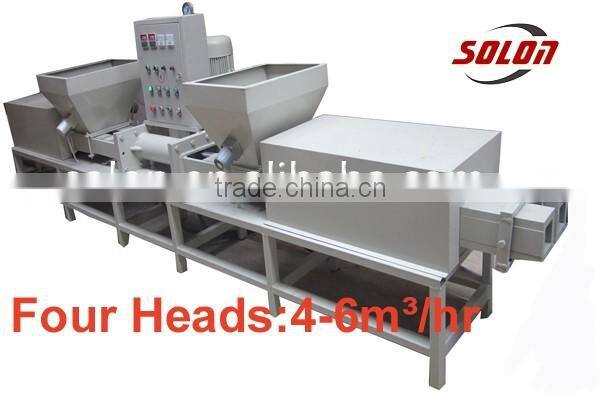

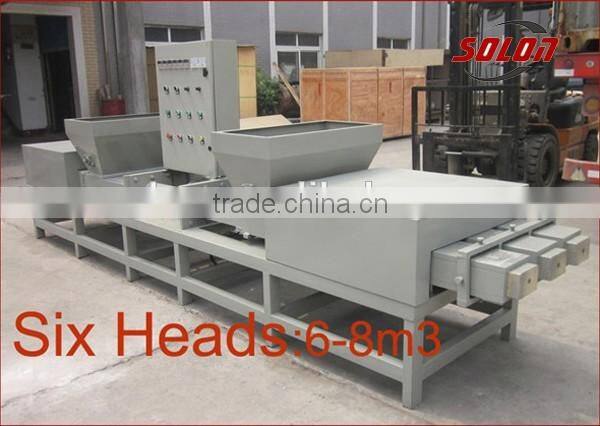

Environment friendly wood sawdust board making machine with low heat consumption
Introduction of Wooden Pallet Block Making Machine
1.The production line consists of FIVE PARTs which is as follows:
Crusher,Dryer, Gluing Machine, Press Machine and Saw to cut up the block.
2. The raw material is sawdust, wood shavings, waste wood, used pallet etc.
NOTE: If the raw material size is not very big we do not suggest crushing first.
3. The wood block size can be customized according to your needs.Size range
from 20 mm to 145mm and 90*90mm,100*100mm are the common styles.
Model |
Power (kw) |
Dimension (mm) |
Capacity (m³/24h) |
Supports the density(kg/m³) |
Weight (kg) |
|
SLHP75*75/2 |
15 |
5000*600*1300 |
3 |
550-600 |
1000 |
|
SLHP80*100/2 |
15 |
5000*600*1300 |
3.5 |
550-600 |
1200 |
|
SLHP80*130 |
18 |
5000*600*1300 |
3 |
550-600 |
1200 |
|
SLHP80*90/2 |
15 |
5000*600*1300 |
3.5 |
550-600 |
1200 |
|
SLHP90*90/2 |
15 |
5000*600*1300 |
4 |
550-600 |
1200 |
|
SLHP100*100/2 |
18 |
5000*600*1300 |
4.5 |
550-600 |
1200 |
|
SLHP100*115 |
18 |
5000*600*1300 |
3 |
550-600 |
1300 |
|
SLHP100*130 |
18 |
5000*600*1300 |
3.5 |
550-600 |
1400 |
|
SLHP140*140 |
18 |
5000*600*1300 |
3.5 |
550-600 |
1500 |
Warm prosecution type:PID adjusts the merit accentto press the control
1.Crusher: Raw material can be wood sawdust,wood shavings,wood waste etc.
if the material is bigger than 5mm, we need to crush the material into 5*5mm for further processing;
2.Dryer: If the material's moisture is above 15%, we need to dry the material before mixing with glue;
3.Gluing machine: 15-18% glu for 100kg raw material, glue water amount 100-120kg/m3.

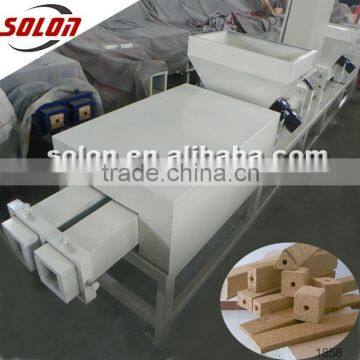

4.Hot press machine(press the material into wood blocks )
This machine can make the pallet block with hole and without holes .
5.The size of the wood blocks are as per your request, such as 75*75mm,90*90,90*140,100*100,etc.
Final Product

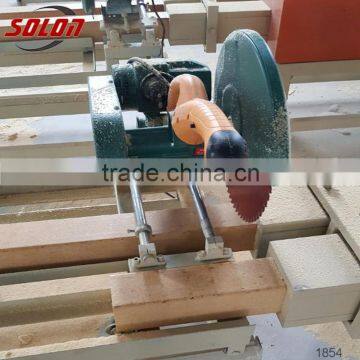

Block Cutting Machine:Manual and Automatic types
Wood Pallets Machine Features:
1. Recycle wood waste, heat treatment or fumigation;
2. High temperature, high pressure can press the material into pallet feet one tim, standard size,
without metal material in the pallets;
3. Pallets can be used in export package, free fumigation, and free quarantine; don't need any test before export;
4. According the the European standard, biodegradability;
5. Good water proff, insect prevention, and protection against termites and do not easy to burn;
6. Strong bearing capacity, no deformation and can be reused;
7. Can be forked from four directions, easy to use the pallets;
8. Can be store in bulk, save room, easy to be transport

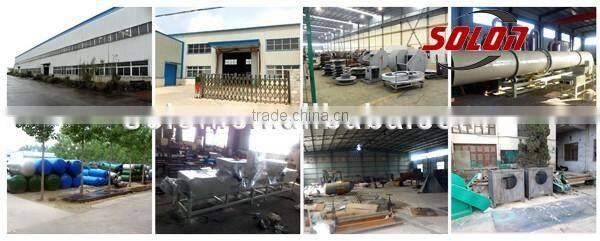

Zhengzhou Solon Import&Export Trading Co. Ltd. is located in Zhengzhou,where is the largest railway center of China.
Owing high talents and professional techniques,Zhengzhou becomes the largest machinery manufacturing base of China.
The main products are wood working machines,food processing machines,feed processing machines and fruits processing
machines and so on. All of those can be customized and try to meet clients’ requirements.
Relaying on efficient team,we provide clients practical,durable and easy-using series projects to improve customers’
competetive power and economy benefits.
Keeping the way of High Development,Essential Quality,Sincere Sevices and High Reputation,we focus on global trading
with this as our leading motivation.
If you are have any question about this machine, please send your Inquiry Details in the Below,
Click "Send" ,or you can send me message on whatsapp :+8618539256355.
