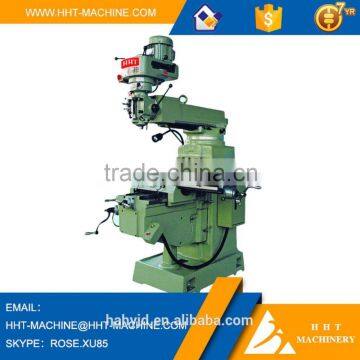

4E turret milling machine 80-5440/16 steps, 60HZ
Main Introduction:
- A turret mill is a more versatile mill that is commonly known as a Bridgeport milling machine. Its spindle has more range of motion and can be set into a variety of positions. This makes the mill a little more flexible and allows it to create more products. Parts, and even plaques, can be made on these types of mills.
Function
- A mill can cut metal, wood or plastic with cutting tools such as end mills, which are specifically designed for roughing and finishing material, and drills. The head can be tilted for angled cutting and drilling and you can rotate it for betting positioning over your work piece. Mills are multi-purpose devices and crucial in any machine shop environment.
Quill and Quill Feed
- The quill contains the tool and spindle being used for the cutting process. It moves in a vertical fashion and is controlled by the quill feed. By using this handle, you can raise and lower the tool to the desired depth. There is also a lock for this quill where you can cut multiple production pieces to the same depth.
Work Table
- The work table is where the raw material is held for machining and can be moved in three directions, X, Y and Z. X is a movement from left to right, Y is front to back and Z is up and down. The table can be manipulated in many ways and moved quite far in any of the possible directions for maximum flexibility in cutting. The table also contains slots to secure vises for work-holding.
Head, Motor and Spindle
- The head is the main top area of a manual mill, the most popular mill in use today. It contains the motor as well as the spindle. The motor uses a belt-driven system to rotate the spindle and speeds can be from 50 to over 4000 RPM depending on the gear used. The spindle moves in either a clockwise or counter-clockwise position and is the part responsible for allowing the tool to cut as the tool itself is attached to the spindle.
1. Parameters:
|
Unit |
4E |
3E |
4EA |
2E |
|||
Working table |
mm |
1270*254*90 |
1270*254*90 |
1370*280*90 |
1067*254*72 |
|||
Travel |
X longitudinal axis |
mm |
900 |
900 |
1000 |
750 |
||
Y transverse axis |
mm |
395 |
395 |
385 |
315 |
|||
Z vertical axis |
mm |
340 |
350 |
340 |
370 |
|||
Spindle travel |
mm |
127 |
127 |
127 |
127 |
|||
Distance between spindle nose to working table |
mm |
400 |
400 |
470 |
400 |
|||
Spindle |
speed |
rpm |
80-5440/16 steps, 60HZ |
80-5440/16 steps, 60HZ |
80-5440/16 steps, 60HZ |
80-5440/16 steps, 60HZ |
||
Taper |
|
R8 |
R8 |
R8 |
R8 |
|||
Motor |
HP |
3 HP |
3 HP |
3 HP |
3 HP |
|||
Rotary angle |
longitudinal |
|
±45° |
±45° |
±45° |
±45° |
||
transverse |
|
±90° |
±90° |
±90° |
±90° |
|||
Dimension |
mm |
1500*1700*2150 |
1500*1700*2150 |
1500*1800*2200 |
1600*1600*2000 |
|||
Net weight |
Kg |
1400 |
1280 |
1550 |
1200 |
|||
Standard accessories:
- Milling head
- Electronic box
- Hand wheel
- Worklamp
- Pull rod
- Feed lever
- Rings
- Lifting block crank
- Operation manual
- Oil lubricator
- Chip cover
- Tool box with tools
Optional accessories:
1. Digital readout
2. water pump
3. Optical scale
4. R8 collet chuck
5. waterpond
6. flat cutting pliers
7. Power feed unit
8. Others
