Widely used poultry feed processing equipment/fish feed production plant
- 100 Set / Sets per Month
- Qingdao/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Solon |
Model Number: | DGP-70 | Type: | Feed Pellet Machine | Voltage: | 380V |
Power(W): | 18.5 | Dimension(L*W*H): | 1790*1470*940mm | Weight: | 600 kg |
Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

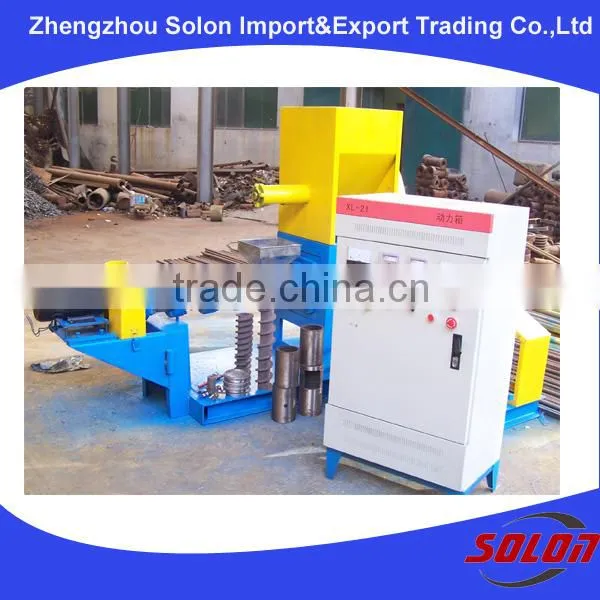

This poultry feed processing equipment
can be used for producing floating fish feed and sinking fish feed.
poultry feed processing equipment is suitable for small and middle-sized farm, also can expand corn, rice, broad bean, fish meal, bone meal, blood meal, feather meal. The main fodders are Pet feed, fish feed, bullfrogs feed. It is your best help for raising Mink, fox, rat, dog,fish.
The raw material can be:
Features of the poultry feed processing equipment
1.Low power consumption,high output,simple operation and high work reliability.
2.Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is Φ0.6-16mm.
Promising fodder output evenly and continuously.
3.New designed pact structure and high efficiency
4.The fish food can keep over the water more than 12 hours.
There have two types of the poultry feed processing equipment ,the dry type(DGP series) and wet type (DGP series)
Technical parameters of the poultry feed processing equipment

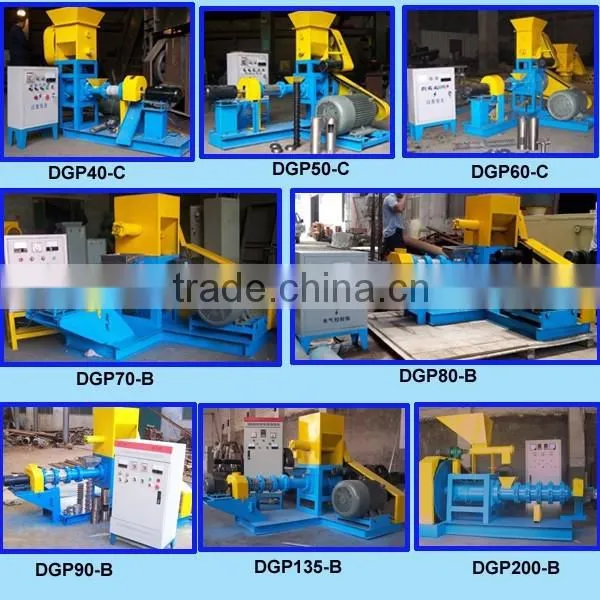

Dry type poultry feed processing equipment
Model | Capacity (t/h) | Main power | Feeding Power (kw) | Screw Dia.(mm) | Cutting Power(kw) |
DGP40-C | 0.03-0.04 | 5.5 | 0.4 | Φ40 | 0.4 |
DGP50-C | 0.06-0.08 | 11 | 0.4 | Φ50 | 0.4 |
DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 |
DGP70-B | 0.18-0.25 | 18.5 | n | φ70 | 0.75 |
DGP80-B | 0.3-0.35 | 22/27 | n | φ80 | 1.5 |
DGP90-B | 0.4-0.45 | 30/37 | 1.1 | φ90 | 1.5 |
DGP120-B | 0.5-0.7 | 55 | 1.1 | φ120 | 2.2 |
DGP135-B | 0.8-1.0 | 75 | 1.1 | φ133 | 2.2 |
DGP160-B | 1.2-1.5 | 90 | 1.5 | φ155 | 2.2 |
DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0 |

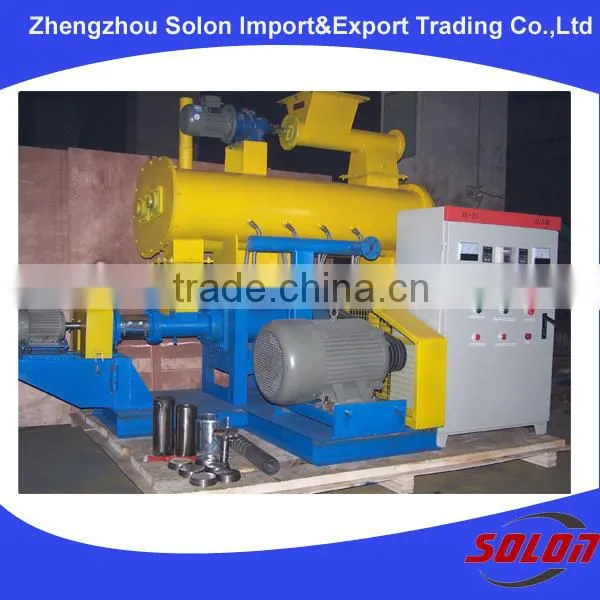

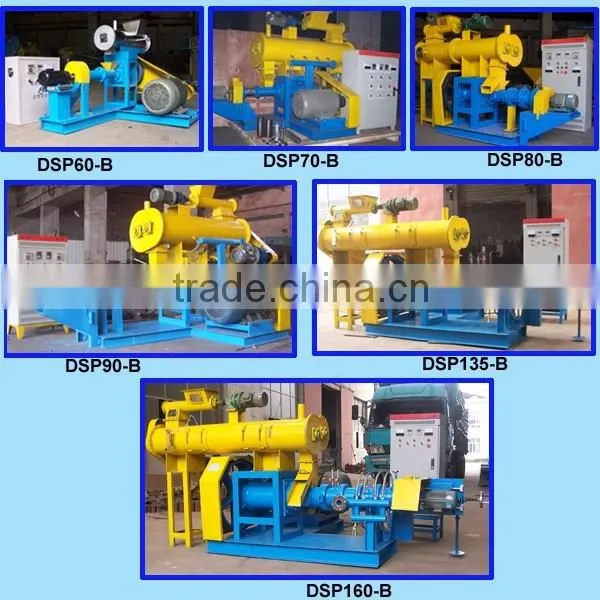

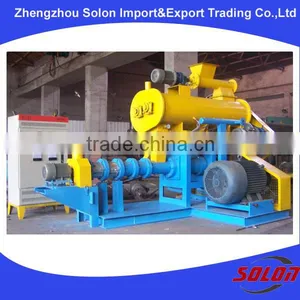

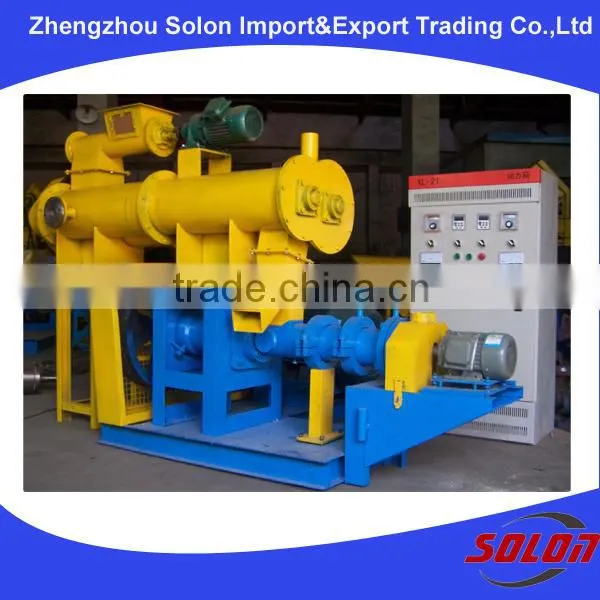

Wet type poultry feed processing equipment
Model | Capacity (t/h) | Main power | Feeding power | Screw dia | Cutting power | Tempering power |
DSP60-B | 0.18-0.2 | 15 | 0.4 | Φ60 | 0.4 | 0.75 |
DSP70-B | 0.25-0.30 | 18.5 | 0.6 | Φ70 | 0.6 | 0.75 |
DSP80-B | 0.35-0.40 | 22 | 1.1 | Φ80 | 0.8 | 1.1-1.5 |
DSP90-B | 0.50-0.60 | 37 | 1.1 | Φ90 | 1.1 | 2.2 |
DSP120-B | 0.70-0.80 | 55 | 1.1 | Φ120 | 1.5 | 2.2 |
DSP135-B | 1.0-1.2 | 75 | 1.5 | Φ135 | 2.2 | 2.2 |
DSP160-B | 1.8-2.0 | 90 | 2.2 | Φ155 | 2.2-3.0 | 3.0 |
DSP200-B | 3.0-4.0 | 132 | 2.2 | Φ195 | 3.0-4.0 | 4.0-5.5 |

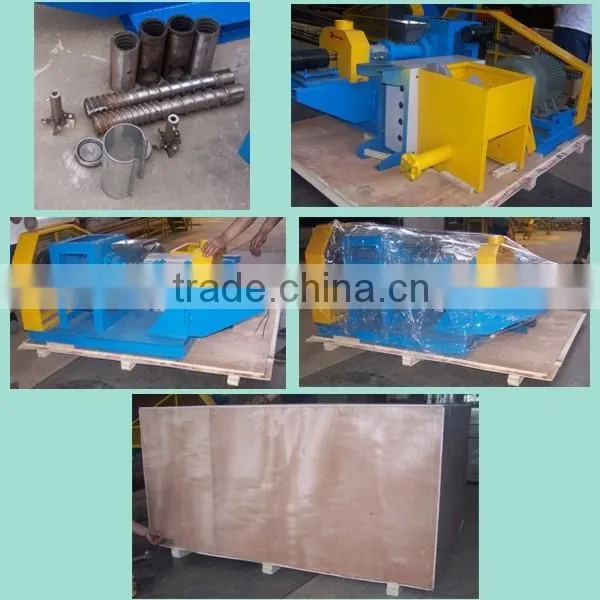

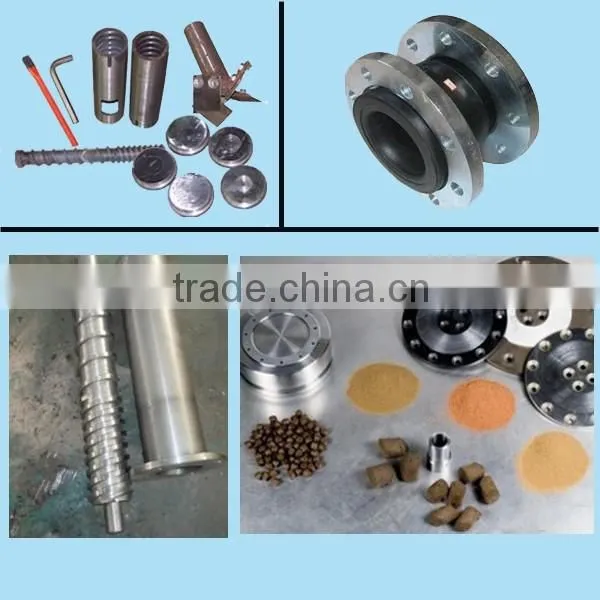

Finished products and spare parts of the poultry feed processing equipment

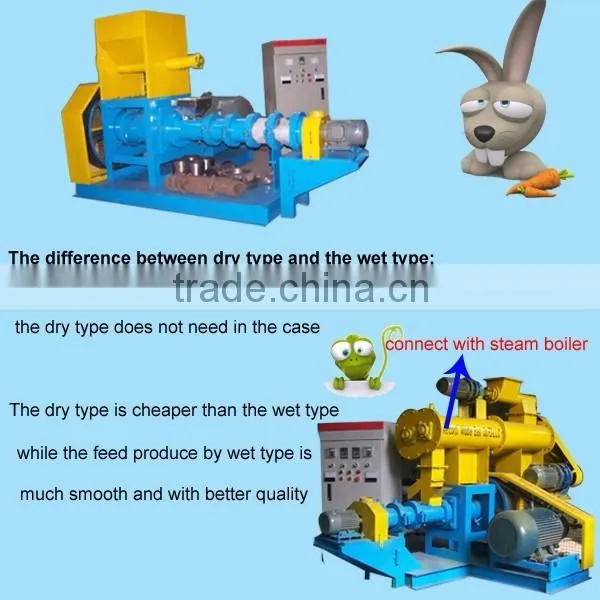

F: what is the differenc between the dry type and wet type poultry feed processing equipment?
A:Please see the below picture to show you the difference.
If you need further informations or have any questions,please feel free to contact:
Jane Sun
Skype:jean311329
Mob/viber/whatsapp:0086-139 4908 5692

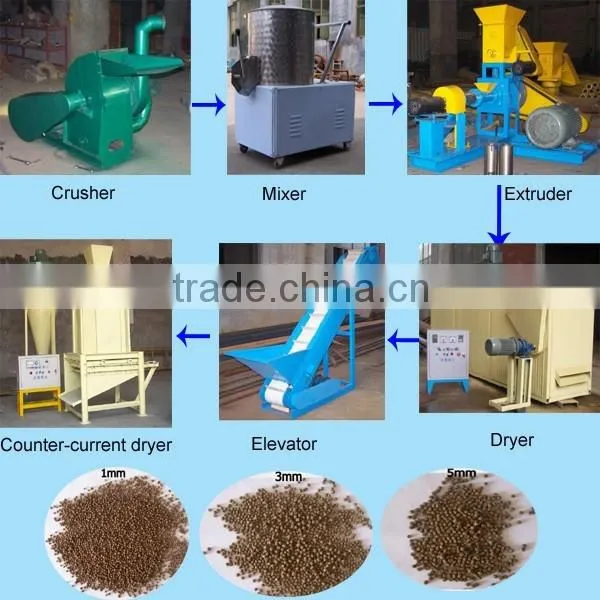

Of course ,as for the machine,we also can equip the line for you,the below is a simple line
we also can equip according your needs
