HBD5

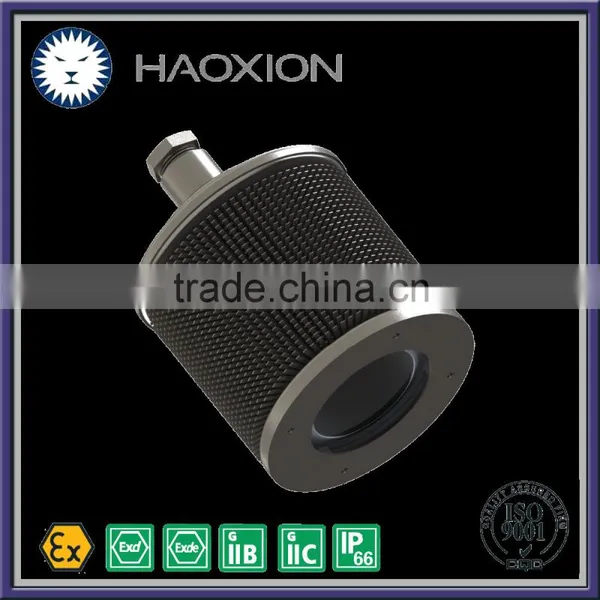

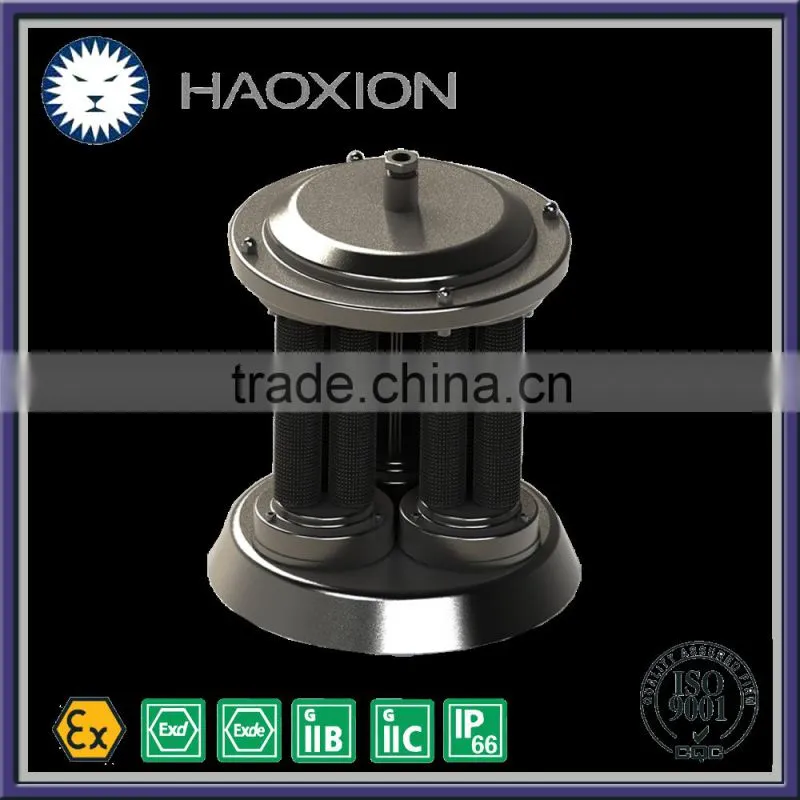

Explosion-proof LED Lamp (The Series Of All Stainless Steel, Nerve Source Technology)
Shell invention patent number: 2016100352866
Shell utility model patent number: 2016200525555
Invention patent number:2016103474954
Utility model patent number:2016204774928
Explosion-proof, Anti-corrosive, Waterproof, Dustproof, Shockproof, Cold-resistance.
1,This product is applied to petroleum, chemical industry, marine, military, nature gas, oil tanker and terminal, tunnel, combustible dust processing in the flammable and explosive hazardous working environment.
2,Using the bionic neural source cooling technology and micro groove group composite phase change heat transfer technology, with a large area of heat dissipation and air power slot structure. This structure effectively solved the current problem of heat dissipation of the high power LED lamp. This makes the stainless steel heat dissipation rate increased by more than 30%.
3,According to phase change technology, the capability of to taking heat and conducting heat is strong. The heat flux in heat transfer can be reached 400W/cm2, its capacity is 1000 times higher than the cool water, and it is about 100 times higher than the heat pipe.
4,The radiator temperature distribution is uniform, and the surface temperature uniformity of the radiator is within ±2 degrees Celsius.
5,Without power cooling:Passive heat dissipation, without fan pump, without cooling energy consumption.
Powre(W) |
Specifications(MM) |
Luminous flux |
Installation method |
20-30 |
40 x 260 |
≥110 |
Ceiling type,Set type,Wall type(30 °,90°),Boom type,Flange type,Fence type |
40-80 |
80 x 260 |
||
90-180 |
120 x 260 |
||
200 |
200 x 260 |
1,Ex-mark: ExdeⅡCT6 Gb/Ex tD A21 IP66 T80℃
2,Rated voltage:AC220V 50Hz
3,Type of light source:LED light engine
4,Texture of material:316LL;(Other materials are customized)
5,Shockproof level:Level D
6,Protection level:IP66
7,Anti-corrosion level:WF2
8,Introducing device:G3/4"inlet specification,applying to the cable of Φ10mm-Φ14mm
9,Connecting terminal:The wire can be connected when it is less than or equal to 2.5mm2
Carton box /wooden case with pearl cotton. Or according to customer's requirement.
1. Design & Engineering
A.Experienced and skilled team of designers including PROE and CAD designers; 10 years explosion proof products’ experience has the capacity to deliver outstanding designs for your project.
B. Simple design service is free of charge to all clients to ensure customer.
C. We look forward to delivering exceptional designs and advice for your project.
2. How to buy your ideal products?
A. You can provide us your drawings, requirements; and we will produce led flood light as your drawing. Or we can design as your requirements if you do not have a clear plan.
B. According to products description, choose what you needs; any questions, please contact with us at anytime.
3. How to pay?
A.T/T and L/C at sight are acceptable; T/T will be more appreciated 30% deposit before producing, 70% balance before loading by T/T.
B.Other terms of payment, contact with us, reach an agreement.
4. What is the delivery time?
A. It depends on order quantity.Generally, the delivery time will be within 5 to 10 days.
5. Package information
A.For inner packing and outer box are made as per international standards, and we can make special designed for you if need.
B. If necessary,will be packed in plywood case to avoid any damage and convenient to transport.
6. How long to make a sample?ls it free?
A. 7 DAYS depending on the sample’s complexity.
B. Normally, our sample is free.Pay the charge in advance, after completed 10 PCS(Order quantity depend on the different products.) order, return the sample charge.
7.What’s the shipping documents?
A. Instruction
B. Factory inspection report
C. Warranty
D. Others as your requirements
