Specifications
1)Suitable for few type while large quantity goods.2)High utility ratio of the warehouse
Industrial warehouse heavy steel push back rack
Structural feature:
1.By using roller rail system and pallet with rollers and under the influence of gravity, push back racking can achieve “first in and late out” easily, in and out from the same way.
2.It is used for storing large quantity of goods with the same kind, and make full use of the space.
3.The depth of the racking should be less than that of five pallets’.
4The weight of the single pallet with goods is normally less than 1500kg.
How Push Back Racks work:
Pallets are placed by forklift on nested carts riding on inclined rails. Each pallet is then pushed back by subsequent pallet loading, exposing the next cart. When removing product, the forklift takes out the front pallet, allowing the pallets on carts behind it to roll gently to the front of the rack. The nested carts make placement and retrieval easy.
A push back rack system fills the storage cube with product, not aisles. Instead of single pallet-deep selective racks, a Pushback rack system lets you store pallets 2 to 5 deep while retaining easy access to a variety of different SKUs.
The SK3600 Pushback rack system also offers the unique advantage of a single source solution. Steel King manufactures both the cart system and the racking, so there is never a chance of one vendor playing against the other. You get everything from one source who takes full responsibility. The system is also easy to install: simple, drop-in cart rail assembly shortens installation time and reduces the chances of errors or delays. Rigid rail design is constructed from 55,000 PSI high-strength steel. The fully welded frames offer greater rigidity than lesser rack systems. This rack is maintenance free and offers a very long service life, along with safer operations and better product protection.
Why choose pushback rack system?
1 |
Better use of warehouse space - push back offers up to 90% more product storage than selective rack systems |
2 |
Store a variety of SKUs on different levels of lanes for easy product access |
3 |
Interlocking carts help prevent dangerous jamming and costly product damage |
4 |
Up to 400% more selectivity than drive-in racks makes pushback more versatile for a greater number of SKU's |
5 |
High storage density coupled with selectivity for faster pick rates |
6 |
Color coded carts for easy visual inventory |
7 |
Large target for loading and unloading |
8 |
Maximizes space utilization by filling the vertical cube |
9 |
Last in, first out" inventory |
10 |
Unlike drive-in racks, each level is independently accessible |
| Feature of Push back racking | |
| Surface treatmet: | power coated; |
| Packing: | Neutral paper box or in bulk or upon clients requirements; |
| Size | As customer's request; |
| Container load: | 10-15 ton per 1x20 container, 20-25 ton per 1x40 container |
| Payment terms: | TT/ Sight LC |
| MOQ: | 1*20ft container |
| Delivery terms: | 15 days for 1x20 container, 20 days for 1x40 container |

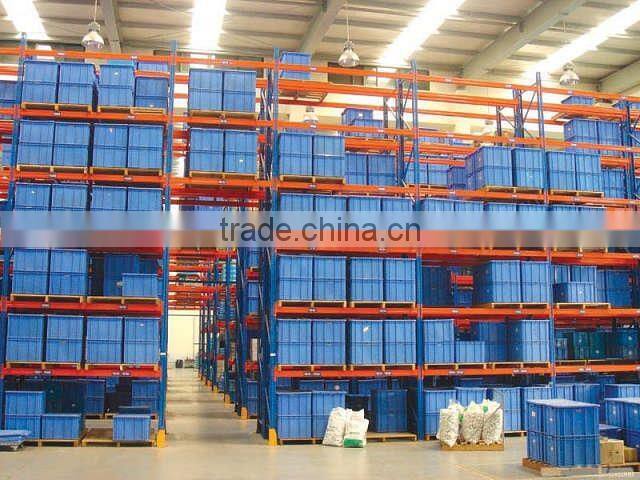

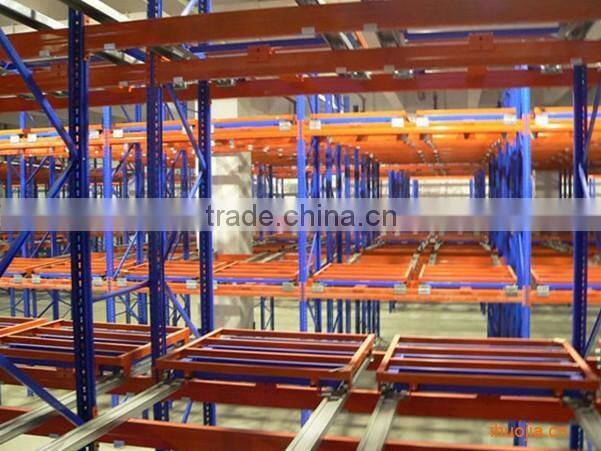

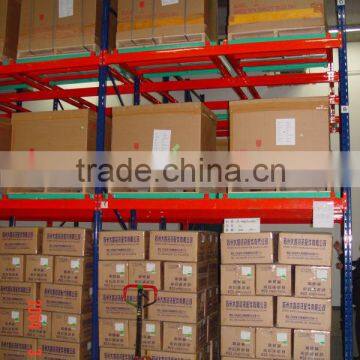

Product Show Case:
Jiangsu Nova Logistic System Co., Ltd
Established in 1997, Jiangsu Nova Logistic System Co., Ltd has developed into a medium-sized group with three factories and a joint venture company ,being considered as the leader in its field now. From the very beginning, the group has been devoting itself to developing, manufacturing and marketing of a variety of logistic products. Moreover, we have consultancy experts and an experienced installation team of more than 50 people to provide excellent pre& after sales service.
Welcome you to contact with Mia for more information:
Skype: Mia Shen (Nova)
Tel: 86-025-51873964
Whats app: 13260992372
