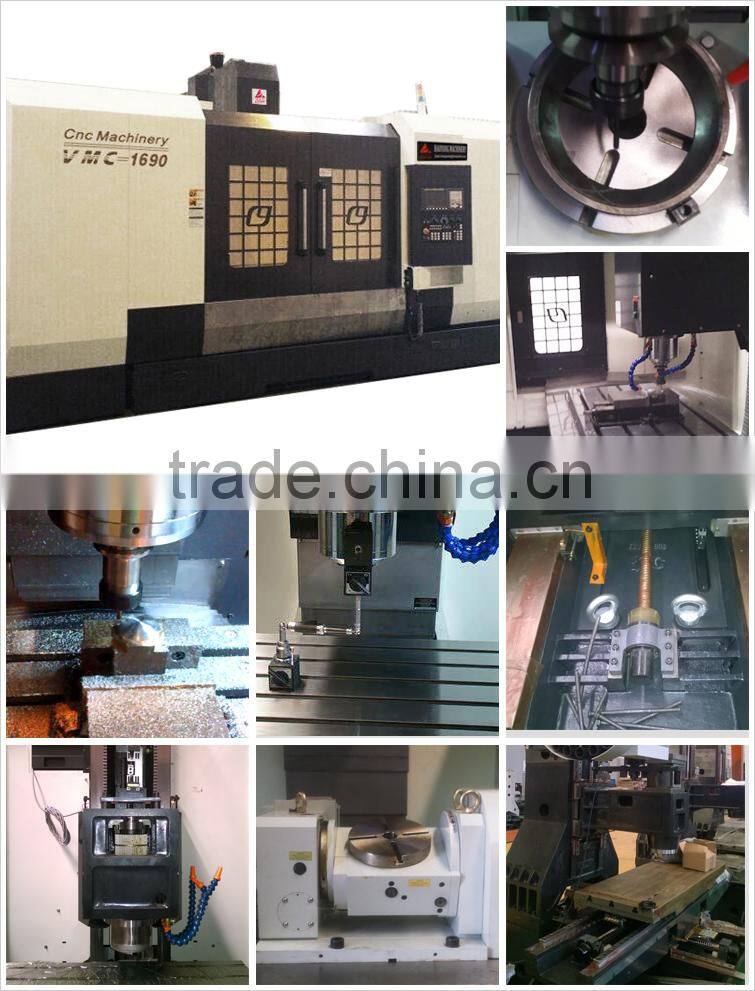

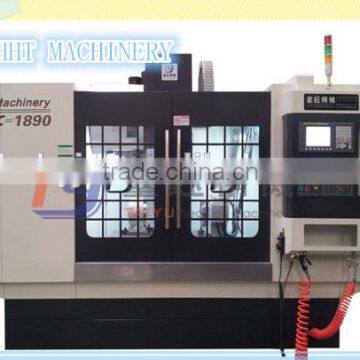

Help CenterVMC-1690 1890 Cnc Milling Machine With Rotary Table
Related Products
-
VMC-1690 1890 Cnc Wood Milling Machine Drilling FunctionUS$ 20,000 - 40,000MOQ: 1 Set -
VMC-1690 1890 Vertical Wood Cnc Milling Machine With Milling HeadUS$ 20,000 - 40,000MOQ: 1 Set
-
VMC-1690 1890 Best Wood Cnc Milling Machine Quality WarrantyUS$ 20,000 - 40,000MOQ: 1 Set
-
VMC-1690 1890 Cnc Wood Milling Machine With Working VideoUS$ 20,000 - 40,000MOQ: 1 Set
-
VMC-1690 Cnc Milling Machine Wood With Hard RuidewaysUS$ 20,000 - 40,000MOQ: 1 Set
1. what are cnc machine milling machine vertical china manufacturer?
A vertical machining center (VMC) is a machining center with its spindle in a vertical orientation. High-end VMCs are high-precision machines often used for tight-tolerance milling, such as fine die and mold work. Low-cost vertical machining centers are among the most basic CNC machine tools. A low-cost VMC is often a new machine shop’s first machine tool purchase.
- Vertical milling machines have a cutting blade that is vertically positioned over a table. The blade points directly down into the surface of the metal that it is going to cut. This cutting blade moves up and down while the table moves below it to position the metal for the cut. This allows different sections of the object to be cut, drilled or carved away by the cutting tool. This is the most common milling machine.
- The milling machine is the workhorse of the machine shop. In essence, a vertical mill is like a drill press except it is fitted with sturdy bearings capable of handling side as well as end loads. Normally up to 85% of machining jobs will require a mill rather than a lathe.

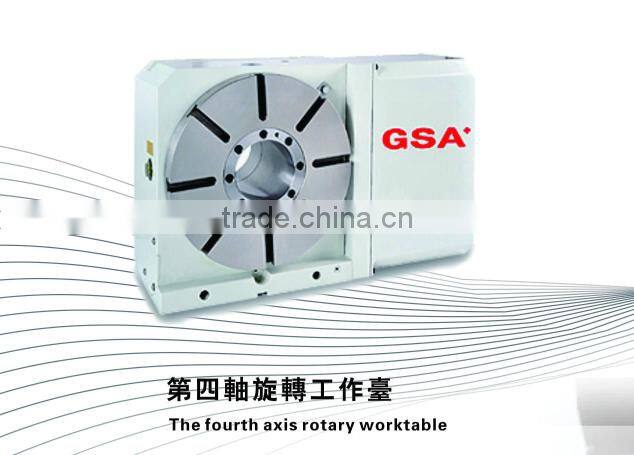

- The 4th axis of a milling machine is the rotary axis (called the A-axis) provided by an optional rotary table. A mill with a rotary table is a powerful combination. Technically, a mill with a rotary table is the minimum combination of tooling required to reproduce itself: that is, make another mill and rotary table.

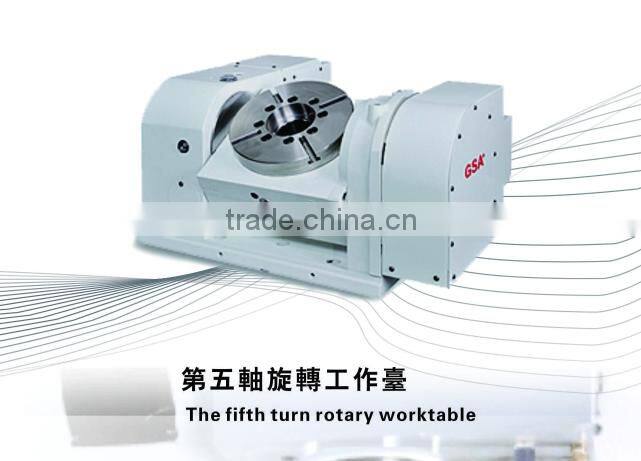

The 5thaxis of a milling machine is the tilting rotary table provide by an optional tilting rotary table.
2. What are specifications for cnc machine milling machine vertical china manufacturer?
Specifications X/Y/Z AXIS HARD GUIDEWAYS | |||||||
Item Model |
Unit |
VMC-1270 |
VMC-1370 |
VMC-1580 |
VMC-1690 |
VMC-1890 |
|
working tale size |
mm |
700x1360 |
710x1400 |
800x1700 |
900x1800 |
900x2000 |
|
X/Y/Z travel |
mm |
1200/700/600 |
1300/700/650 |
1500/800/700 |
1600/900/680 |
1800/900/680 |
|
Distance between spindle end and table |
mm |
150-750 |
150-800 |
170/870 |
160/840 |
160/840 |
|
Distance between spindle center and column guide way |
mm |
785 |
785 |
800 |
950 |
950 |
|
Maximum weight of working table |
kg |
1000 |
1000 |
1500 |
1600 |
1600 |
|
table-T-slot |
mm |
5-18-152.5 |
5-18-152.5 |
5-22-135 |
5-22-165 |
5-22-165 |
|
X/Y/Z axis rapid feed |
M/min |
18 |
18 |
16 |
16 |
16 |
|
three axis working rapid speed |
mm/min |
8000 |
8000 |
8000 |
8000 |
8000 |
|
X.Y.Z axis screw mandrel size |
mm |
5010 |
5010 |
6310/6310/5010 |
5508 |
5508 |
|
positioning accuracy |
mm |
±0.005/300 |
±0.005/300 |
±0.005/300 |
±0.005/300 |
±0.005/300 |
|
repeat positioning accuracy |
mm |
±0.003 |
±0.003 |
±0.005 |
±0.005 |
±0.005 |
|
spindle speed |
rpm |
8000 |
8000 |
8000 |
8000 |
8000 |
|
spindle taper |
mm |
BT50/155 |
BT50/155 |
BT50/155 |
BT50/190 |
BT50/190 |
|
control system |
/ |
MISTUBISHI M70VA/SIEMENS 828D BASIC/FANUC0I-MD |
|||||
torque force of spindle motor |
nm/kw |
70/15 |
70/15 |
95.5/18.5 |
95.5/18.5 |
118/22 |
|
torque force of X.Y.Z motor |
nm |
22.5-64 |
22.5-64 |
37.2-122 |
37.2-122 |
37.2-122/49-152 |
|
pneumatic source requirement |
Kg/Cm2 |
6 |
6 |
6 |
6 |
6 |
|
power consumption |
kva |
30 |
30 |
30 |
30 |
35 |
|
machine size |
mm |
3300*2800*2250 |
3350*2850*2250 |
4110*3100*3200 |
4310*3100*3300 |
4310*3100*3300 |
|
machine weight |
kg |
9000 |
9500 |
12300 |
12800 |
13500 |
|
3. What are the accessories for cnc machine milling machine vertical china manufacturer ?
Standard accessories: |
Optional accessories: |
* Full closed guard |
*Tool setting system |
* Electrical box heater exchanger |
*Spindle oil cooler |
* Belt drive |
*Chain type chips conveyor |
* Cutting coolant unit |
* Spiral type chips conveyor |
* Cutting air blowing device |
*Spindle speed:10000rpm |
* Axis extend guard |
*Spindle speed: 12000rpm |
*Operation maintenance Manual |
* Spindle speed: 15000rpm |
* DNC computer transmission line |
*bamboo hat type tool magazine 20T |
* 3 axis Pretensioned Ball Screws |
*bamboo hat type tool magazine 24T |
*Warning light of three color |
*Circular tool magazine 20T |
* Spindle air blast |
*Circular tool magazine 24T |
* Rigid tapping |
*Spindle central water discharge |
* Program storage |
*voltage stabilizer |
* Automatic lubrication system |
|
* Horizontal bolts and pads |
|
* Explosion-proof work light |
|
* Plug type hand wheel |
|
* Tool box |
|
4. Accessories partners for cnc machine milling machine vertical china manufacturer
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
a. Engineers available to customers’ place
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
Mother machines we use in our factory, imported from Italy and Spain

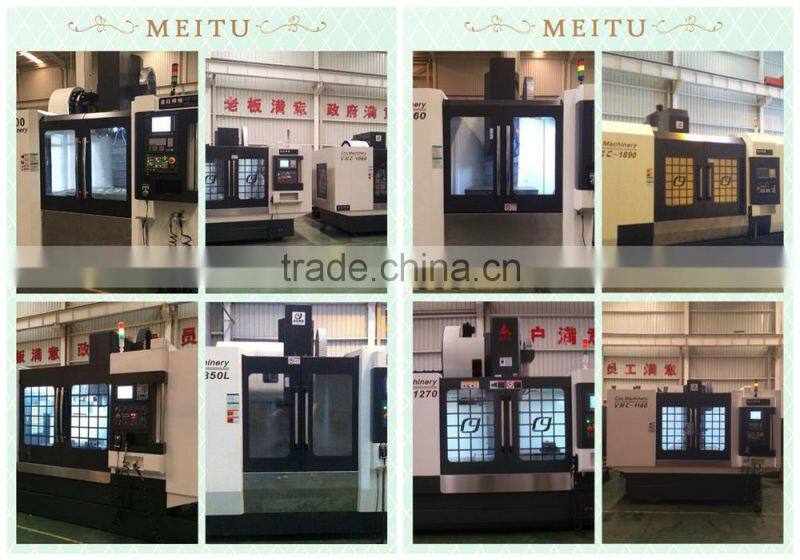

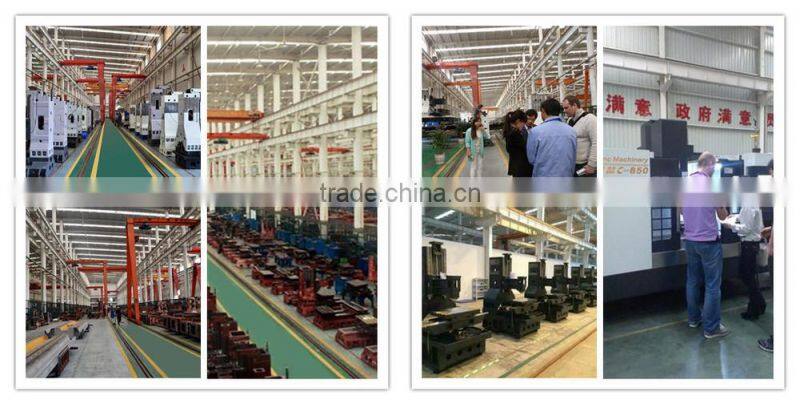

Workshop View
Photos at Exhibitions in Russia and Columbia
Looking for agents worldwide
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q5: Do we need to install the machines?
A5: For small machines like VMC and CNC Lathe, there is no need to install. We will send the machines as whole part. For large machines, like Gantry Milling machines and Boring Milling machines, you need to install the machines, or we will send our engineers to your place for installation, if it is necessary.
