HD42

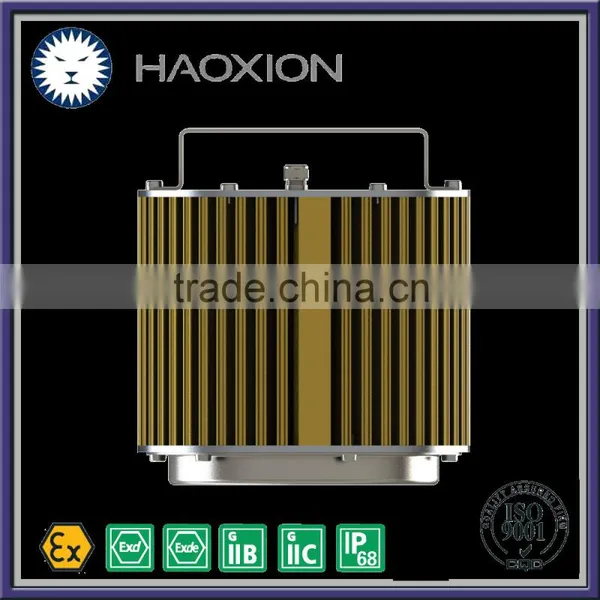

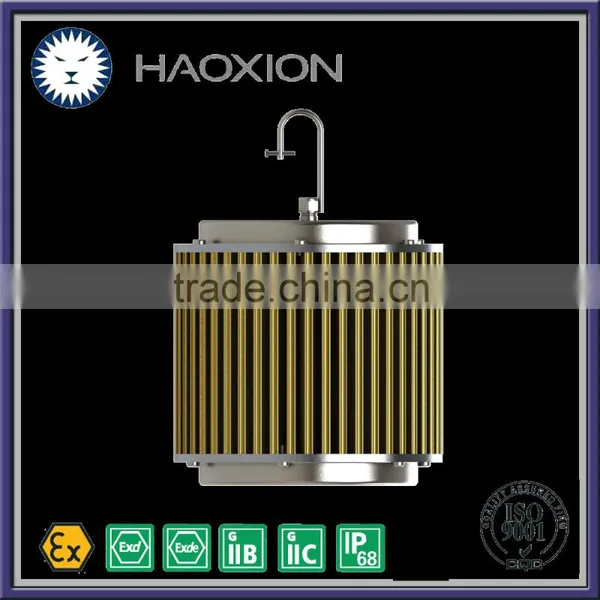

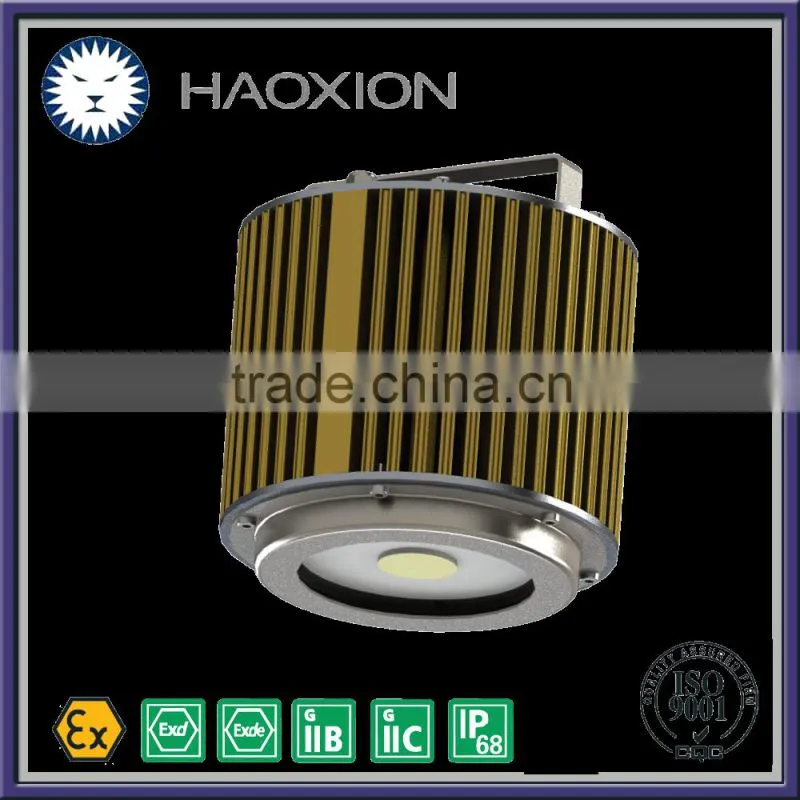

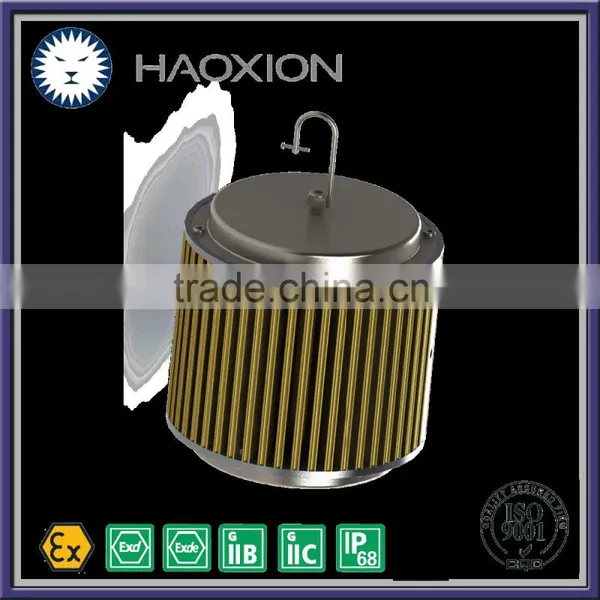

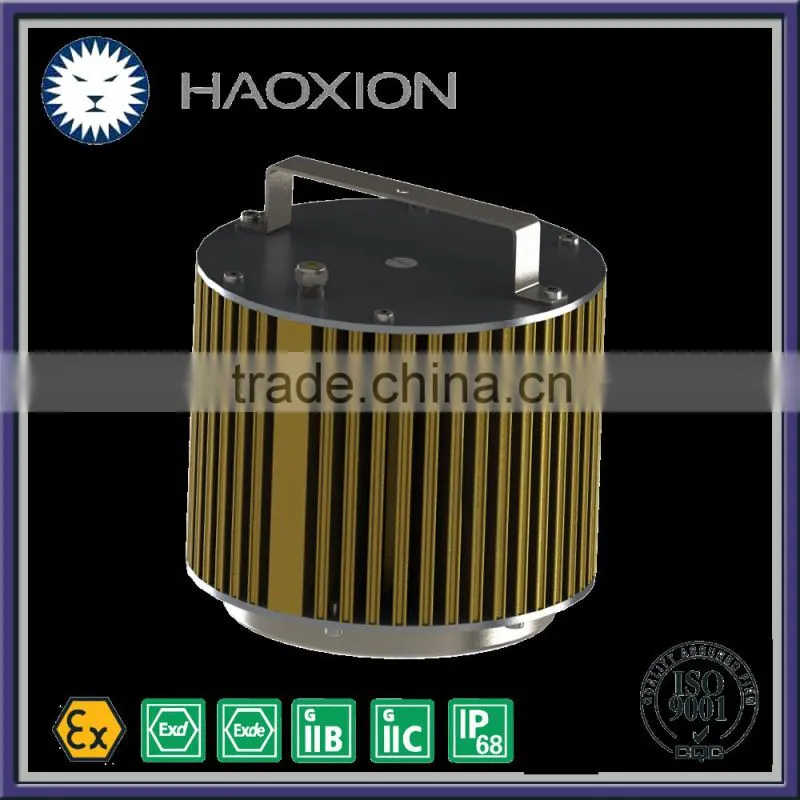

LED Lighting Lamp (Phase change technology series)
Invention patent number:2016100350447
Appearance patent number:2016300481726
Anti-corrosion,Waterproof,Dustproof,Shockproof
1,This product is applied to lighting in the marine, military, stadium, public railway, tunnel, airport, station, dock, ship, power plant, factory, common ditch, cold shortage, urban landscape and so on.
2,A new generation of vacuum cooling technology with the international advanced level is adopted to improve the heat dissipation rate by more than 30%.
3,The radiator adopts the anodic oxidation method, and the corrosion resistance is good.
4,According to phase change technology, the capability of to taking heat and conducting heat is strong. The heat flux in heat transfer can be reached 400W/cm2, its capacity is 1000 times higher than the cool water, and it is about 100 times higher than the heat pipe.
5,The radiator temperature distribution is uniform, and the surface temperature uniformity of the radiator is within ±2 degrees Celsius.
6,Without power cooling:Passive heat dissipation, without fan pump, without cooling energy consumption.
Power(W) |
diameter×height(mm) |
Luminous flux |
Installation method |
50-60 |
¢160×60 |
≥110 |
Ceiling type,Set type,Wall type(30 °,90°),Boom type,Flange type,Fence type |
60-80 |
¢160×90 |
||
80-100 |
¢160×110 |
||
100-120 |
¢160×150 |
||
120-150 |
¢160×225 |
||
|
|
|
|
80-120 |
¢200×100 |
≥110 |
Ceiling type,Set type,Wall type(30 °,90°),Boom type,Flange type,Fence type |
120-150 |
¢200×150 |
||
150-180 |
¢200×200 |
||
180-200 |
¢200×250 |
1,Rated voltage:AC220 50/60Hz
2,Wave voltage:AC180-265;Color temperature:6000-6500K;Power factor:PF≥95
3,Shockproof level:Level D
4,Protection level:IP68
5,Anti corrosion grade:WF2
6,Introducing device:M20×1.5,Cable outside diameter 6-12mm
7,Terminal:The wire can be connected when it is less than or equal to 2.5mm2
Carton box /wooden case with pearl cotton. Or according to customer's requirement.
1. Design & Engineering
A.Experienced and skilled team of designers including PROE and CAD designers; 10 years explosion proof products’ experience has the capacity to deliver outstanding designs for your project.
B. Simple design service is free of charge to all clients to ensure customer.
C. We look forward to delivering exceptional designs and advice for your project.
2. How to buy your ideal products?
A. You can provide us your drawings, requirements; and we will produce led flood light as your drawing. Or we can design as your requirements if you do not have a clear plan.
B. According to products description, choose what you needs; any questions, please contact with us at anytime.
3. How to pay?
A.T/T and L/C at sight are acceptable; T/T will be more appreciated 30% deposit before producing, 70% balance before loading by T/T.
B.Other terms of payment, contact with us, reach an agreement.
4. What is the delivery time?
A. It depends on order quantity.Generally, the delivery time will be within 5 to 10 days.
5. Package information
A.For inner packing and outer box are made as per international standards, and we can make special designed for you if need.
B. If necessary,will be packed in plywood case to avoid any damage and convenient to transport.
6. How long to make a sample?ls it free?
A. 7 DAYS depending on the sample’s complexity.
B. Normally, our sample is free.Pay the charge in advance, after completed 10 PCS(Order quantity depend on the different products.) order, return the sample charge.
7.What’s the shipping documents?
A. Instruction
B. Factory inspection report
C. Warranty
D. Others as your requirements
