Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Flameproof Cable Gland M25

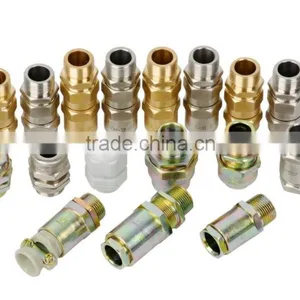

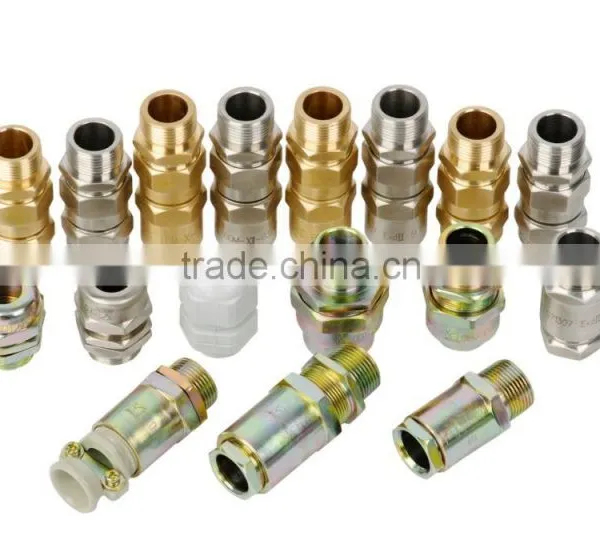

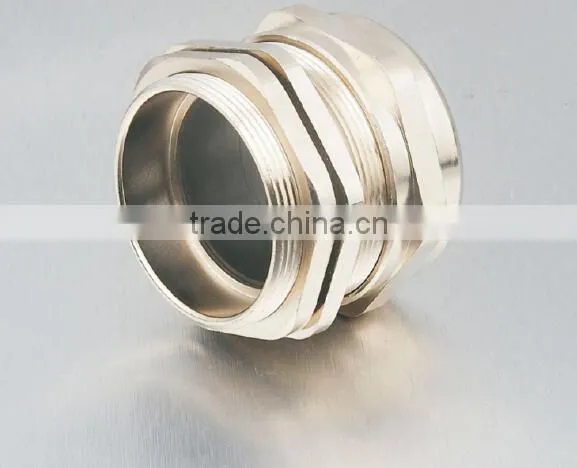

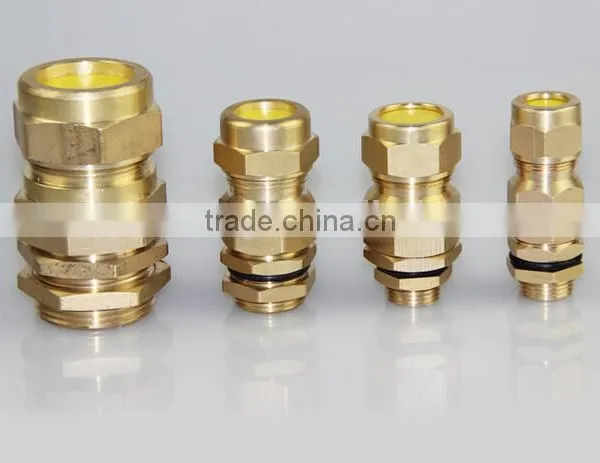

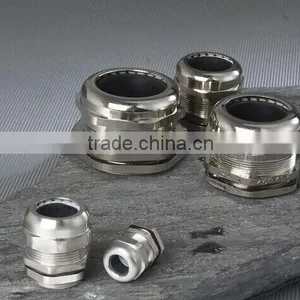

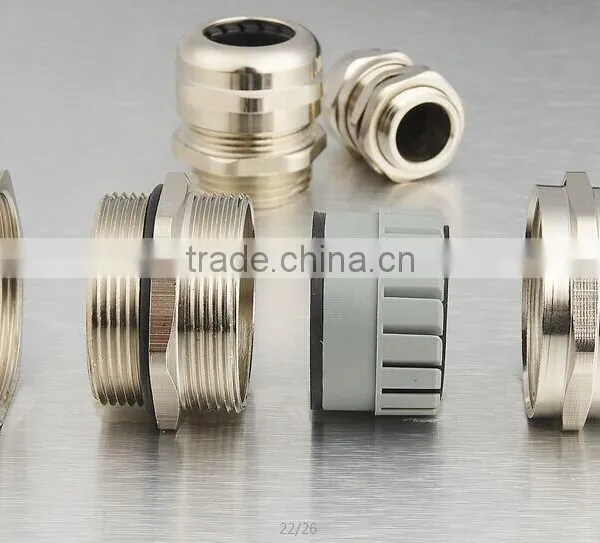

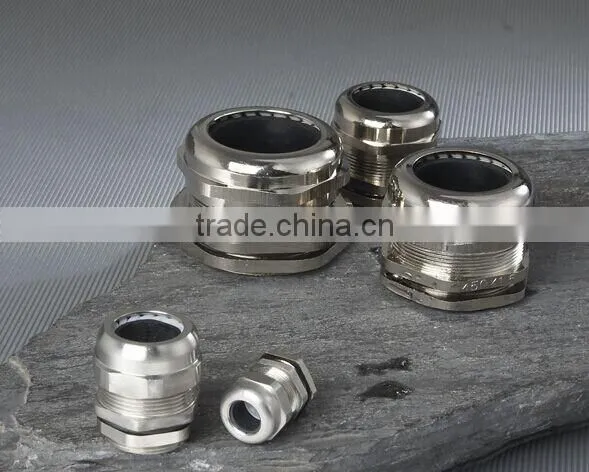

Flameproof Cable Gland M25

Name: Flameproof Cable Gland M25
Brand: HAOXION
SKU: 121052033

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

HAOXION

Model Number:

BDM

Contact Supplier Request Quote Chat Now

Haoxion Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HAOXION

Model Number BDM

Type Other, Cable gland

Application Other, Industry

Gender Female

Flamproof Cable glands M25

Product Description

Cable glands for armoured cables

Installation: Hazardous areas Zone 1 / 2 ( Gases ) - Zone 21 / 22 ( Dusts )

Classification: Group II - Category 2G / 2D

Mechanical characteristics

Body / cap; brass ; AISI-316L stainless steel ; aluminium ( AL)
Finishes; full nickel plating treatment ( brass material only )
Rubber rings; EDPM rubber-50-60 shore hardness
O-ring; silicon rubber-60 shore hardness
Skid washer; nylon 6
♦ON REQUEST ONLY. PLEASE CONTACT OUR SALES OFFICE FOR MIN QUANTITY TO ORDER♦

Application

For steel wire armoured cables, for steel tape armoured cables and for lead inner sheath cables
Double compression type for indoor and outdoor use
Provided armour calmping using clamping arrangements suitable for all armour wire / braid types
Internal lead device for electrical bond of cable lead inner sheath
Double compression-under armour and overall of armour cable ( inner and outer sealing )

REMARK: due to the development of the national and international specifications and of the technology, the above technical characteristics showed on this bulletin can be considered as binding on our confirmation only.

AISI 316 Stainless Steel Enclosure

Explosion protected stainless steel junction box

Flameproof stainless steel junction box

Stainless steel conduit outlet box

Stainless steel junction box

Stainless steel cable glands

Brass cable glands

LED Flood lights

THREAD SPECIFICATION

THREAD SPECIFICATIONS (PITCH & MAJOR DIA.)

NPT THREAD SPECIFICATIONS
THREAD SIZE	1/4" NPT	3/8" NPT	1/2" NPT	3/4" NPT	1" NPT	1-1/4" NPT	1-1/2" NPT	2" NPT
Major Dia. Inches (mm)	.54 (13.72)	.69 (17.15)	.84 (21.34)	1.05 (26.67)	1.32 (33.40)	1.66 (42.16)	1.90 (48.26)	2.38 (60.33)
Pitch (mm)	.056" (1.41)	.056" (1.41)	.071" (1.81)	.071" (1.81)	.087" (2.21)	.087" (2.21)	.087" (2.21)	.087" (2.21)
Threads per Inch	18	18	14	14	11.5	11.5	11.5	11.5

PG THREAD SPECIFICATIONS
THREAD SIZE	PG 7*	PG 9	PG 11	PG 13.5**	PG 16	PG 21	PG 29	PG36	PG 42	PG48
Major Dia. Inches (mm)	.49" (12.5)	.60" (15.2)	.73" (18.6)	.80" (20.4)	.89" (22.5)	1.11" (28.3)	1.46" (37.0)	1.85" (47.0)	2.13" (54.0)	2.39" (59.3)
Pitch (mm)	.05" (1.27)	.055" (1.41)	.055" (1.51)	.056" (1.41)	.055" (1.51)	.062" (1.59)	.062" (1.59)	.062" (1.59)	.062" (1.59)	.062" (1.59)

METRIC THREAD SPECIFICATIONS
THREAD SIZE	M6	M8	M12	M16	M20	M25	M32	M40	M50	M63
Major Dia. Inches (mm)	.24" (6)	.31" (8)	.47" (12)	.63" (16)	.79" (20)	.98" (25)	1.26" (32)	1.57" (40)	1.97" (50)	2.48" (63)
Pitch (mm)	.04" (1.0)	.05" (1.25)	.06" (1.5)	.06" (1.5)	.06" (1.5)	.06" (1.5)	.06" (1.5)	.06" (1.5)	.06" (1.5)	.06" (1.5)

. * PG 7 thread fits 1/4" NPT or 1/2"-20 UNF.

. ** PG 13.5 is also known as PG 13.

. Taps are readily available. Call for sources and more detailed PG thread specifications.

Company Information

Packaging & Shipping

FAQ

1. Design & Engineering
A.Experienced and skilled team of designers including PROE and CAD designers; 10 years explosion proof products’ experience has the capacity to deliver outstanding designs for your project.
B. Simple design service is free of charge to all clients to ensure customer.
C. We look forward to delivering exceptional designs and advice for your project.

2. How to buy your ideal products?
A. You can provide us your drawings, requirements; and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
B. According to products description, choose what you needs; any questions, please contact with us at anytime.

3. How to pay?
A.TT and L/C at sight are acceptable; TT will be more appreciated 30% deposit before producing, 70% balance before loading by TT.
B.Other terms of payment, contact with us, reach an agreement.

4. What is the delivery time?
A. It depends on order quantity.Generally, the delivery time will be within 5 to 10 days.

5. Package information
A.For inner packing and outer box are made as per international standards, and we can make special designed for you if need.
B. If necessary,will be packed in plywood case to avoid any damage and convenient to transport.

6. How long to make a sample?ls it free?
A. 7 DAYS depending on the sample’s complexity.
B. Normally, our sample is free.Pay the charge in advance, after completed 10 PCS(Order quantity depend on the different products.) order, return the sample charge.

7.What’s the shipping documents?
A. Instruction;
B. Factory inspection report;
C. Warranty;
D. Others as your requirements.
