Home > Industrial Equipment & Components > Power Transmission Parts > Speed Reducer > WB Series Micro Gearbox Store Cyclo Gear Reducer for Concrete Mixer Gearbox
WB Series Micro Gearbox Store Cyclo Gear Reducer for Concrete Mixer Gearbox
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Gearing Arrangement:
Cycloidal
Output Torque:
up to 12000Nm
Rated Power:
0.04~3kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WB Series Inline Gearbox Micro Gearbox Store Cyclo Gear Reducer for Concrete Mixer GearboxNegotiableMOQ: 10 Pieces -
X Seriescy Cloidal Speed Reducer Cyclo Gear Reducer Manufacturers for Mixer MachineUS$ 50 - 2,000MOQ: 10 Pieces
-
X Seriescy Cloidal Speed Reducer Inline Gearbox Manufacturers for Mixer MachineUS$ 50 - 2,000MOQ: 10 Pieces
-
X Seriescy Cloidal Speed Reducer Gearbox Support Manufacturers for Mixer MachineUS$ 50 - 2,000MOQ: 10 Pieces
-
X Seriescy Cloidal Speed Reducer Gearbox Cyclodial Reducer for Power Wheels ManufacturersUS$ 50 - 2,000MOQ: 10 Pieces
Gearing Arrangement
Cycloidal
Output Torque
up to 12000Nm
Rated Power
0.04~3kw
Input Speed
<2000rpm
Output Speed
0.16~161rpm
Place of Origin
Zhejiang, China
Model Number
WB65~WB1510
Brand Name
Flying knight

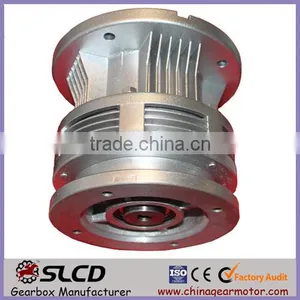

Product photos:
WB series reducer Technical Parameters:
| Model | Shaft Dia. | Center Height | Output Flange Dia. | Power | Ratio | Permitted Torque | Weight |
| Solid(mm) | (mm) | (mm) | (kw) | (Nm) | (KGS) | ||
| WB65 | 12 | 60h13 | 120 | 0.04~0.12 | 11~59 | 40 | 1.5 |
| WB85 | 14 | 70h13 | 140 | 0.09~0.37 | 9~71 | 90 | 2 |
| WB100 | 18 | 80h13 | 160 | 0.18~0.75 | 7~87 | 170 | 3.5 |
| WB120 | 30 | 100h13 | 190 | 0.25~1.5 | 7~101 | 250 | 6 |
| WB150 | 35 | 120h13 | 230 | 0.37~3 | 7~121 | 350 | 12.5 |
| WBE1065 | 18 | 80h13 | 160 | 0.04~0.12 | 121~5133 | 170 | 5.5 |
| WBE1285 | 30 | 100h13 | 190 | 0.09~0.37 | 121~5959 | 250 | 9 |
| WBE1510 | 35 | 120h13 | 230 | 0.18~0.37 | 121~5959 | 350 | 18 |
| Remark: the weight without oil and motor, shaft and flange input add 10%. | |||||||
| FAQ |
| Q1: I want to buy your products, how can I pay? |
| A: You can pay via T/T(30%+70%), L/C ,D/P, WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by . It is safe and effective. |
Q2: How can you guarantee the quality? |
| A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection. |
| Q3: How we select models and specifications? |
| A: You can email us the series code (for example: RC series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice. |
| Q4: If we don't find what we want on your website, what should we do? |
|
A: We offer three options: 1, You can email us the pictures, drawings or descriptions details. We will try to design your products on the basis of our standard models. 2, Our R&D department is professional for OEM/ODM products by drawing/samples, you can send us samples, we do customized design for your bulk purchasing. 3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, shoes machines and so on. |
| Q5: Can we buy 1 pc of each item for quality testing? |
| A: Yes, we are glad to accept trial order for quality testing |
| Q6: How about your product delivery time? |
| A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical gearbox. |
WB series micro gearbox store cyclo gear reducer for concrete mixer gearbox
we also have other various iterms, welcome to contect us for more detail information and inquiry.
