Help CenterXEL Flange Mounted Cycloidal Reducer
Related Products
Specifications
1,20 years' experience in cycloidal reducer2,Sincere cooperation
3,CE, ISO9001
4,Delivery in time
5,Credible quality

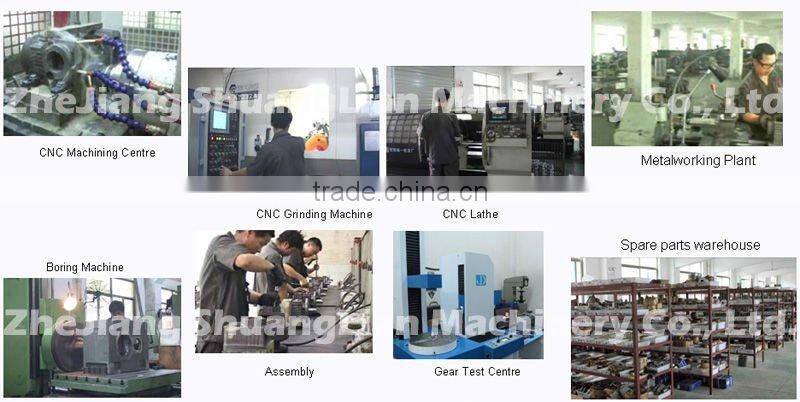

About us
We are the leading manufacturer specialized in designing and manufacturing different kinds of cycloidal reducer in China. Manufacturing according to the ISO9001:2008 quality control system guidelines. We help our customer develop special gearbox for their application and OEM service offered.
Product features
1. X series cycloidal gearmotor is a reducer designed by cycloid needle teeth coupled planetary transmission principle. simple structure, convenient maintenance
2. Cast iron housing,compact construction,steady running,high efficiency
3. The products have been mainly used in machinery fields, such as chemical agitator, metallurgy, mine transmission,printing and packaging,brick,leather,etc.
General Technical data
| Model | Shaft Dia. | Center Height | Power | Ratio | Permitted torque | Weight |
| Solid | (mm) | (kw) | (Nm) | (KGS) | ||
| X2 | 25k6 | 100h13 | 0.37~0.75 | 9~59 | 200 | 6 |
| X3 | 35k6 | 140h13 | 0.55~3 | 9~71 | 280 | 12.5 |
| X4 | 45k6 | 150h13 | 0.75~4 | 9~87 | 500 | 24 |
| X5 | 55m6 | 160h13 | 1.5~7.5 | 9~87 | 1000 | 48.5 |
| X6 | 65m6 | 200h13 | 2.2~11 | 9~87 | 2000 | 95 |
| X7 | 80m6 | 220h13 | 4~18.5 | 9~87 | 2700 | 190.5 |
| X8 | 90m6 | 250h13 | 7.5~30 | 9~87 | 4500 | 380 |
| X9 | 100m6 | 290h13 | 11~37 | 9~87 | 7100 | 760.5 |
| X10 | 110m6 | 325h13 | 15~45 | 9~87 | 12000 | 1520 |
| Remark: the weight without oil and motor, shaft and flange input add 10%. | ||||||
+Mechanical efficiency: ≥95%;

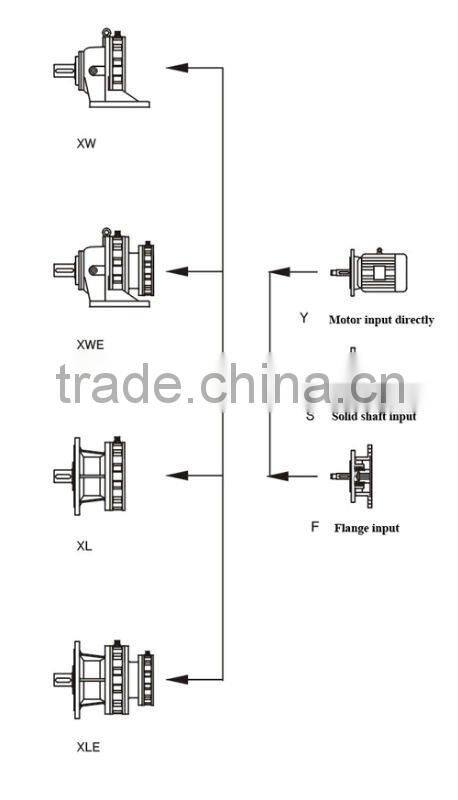

+Input form: direct motor input, flange input, shaft input;
+Materials of speed reducer body: HT200 cast iron;
+Materials of shaft and cyclo-wheel: GCr15 high-carbon chromium steel;
+Heat treatment: quenching;
+Large speed reduction ratio: up to 6177:1(two-stage)
+Noise of speed reducer: ≤50dB;
+Backlash of speed reducer: ≤60arc.min.

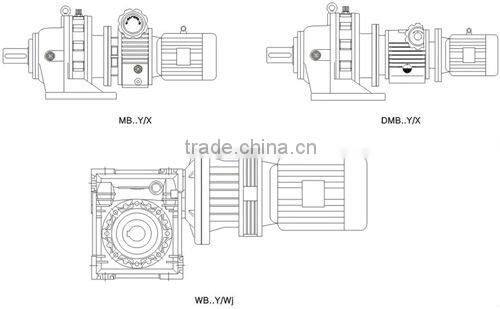

Combined system
Packages
For more parameters and dimensions, please contact with us. Welcome to send us inquiry!
