High Quality cnc horizontal portable line boring machine CTB110/130
High Quality for Low Price cnc table type horizontal milling boring machine CTB110/130
Main Specifications:
| CTB110 | CTB130 | |
| Spindle diameter | 110mm | 130mm |
| Diameter of milling spindle | 210mm | 221.44mm |
| Spindle speed | 10-1000r/min(optional 10-2000) | 10-1000r/min(optional 10-2000) |
| Spindle taper | ISO 50 7:24 | ISO50 7:24 |
| Power of Spindle motor | 15/20.5KW | 17/22.5KW |
| Shank | MAS BT-50 | DIN69871A |
| Pull stud | LDA-50 | LDA-50 |
| Transverse travel of table X | 1600mm | 1800mm(optional 2000) |
| Vertical travel of spindle head Y | 1400mm | 1600mm |
| Longitudinal travel of table Z | 1200mm | 1400mm |
| Axial travel of spindle W | 600mm | 600mm(optional 800) |
| Slider travel of facing head | 200mm(only for CTBF110) | 200mm(only for CTBF130) |
| Table rotation(any angle)B | 360° | 360° |
| Table size | 1200×1400mm(optional 1400×1600) | 1400×1600mm |
| Max. load | 5000kg | 8000kg |
| Rapid traverse X Y Z | 10000 8000mm/min | 10000 /8000 |
| W U | 5000 1000mm/min | 5000 /1000 |
| Rapid rotation | 2r/min | 2r/min |
| Feedrate X Y Z | 1-5000mm/min | 1-5000mm/min |
| W U | 1-3000 1-500mm/min | 1-3000 1-500 |
| Rotation rate B | 0.005-1.5r/min | 0.005-1.5r/min |
| Spindle torque | 1600Nm | 2200Nm |
| Torque of milling spindle | 2000N/m | 2800N/m |
| Feed resisting force X Y Z W | 15000N | 20000N |
| Positioning accuracy X Y Z | ± 0.01 mm | ± 0.01 mm |
| B | ±5 ″ | ±5 ″ |
| Repeatability X Y Z | ± 0.008mm | ± 0.008mm |
| B | ±3″ | ±3″ |
| CNC system | SIEMENS OR FANUC | SIEMENS OR FANUC |
| Weight | 28000kg | 34000kg |

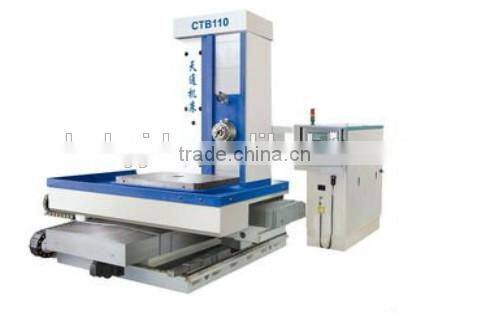

MACHINE PHOTO
EXIHIBITION

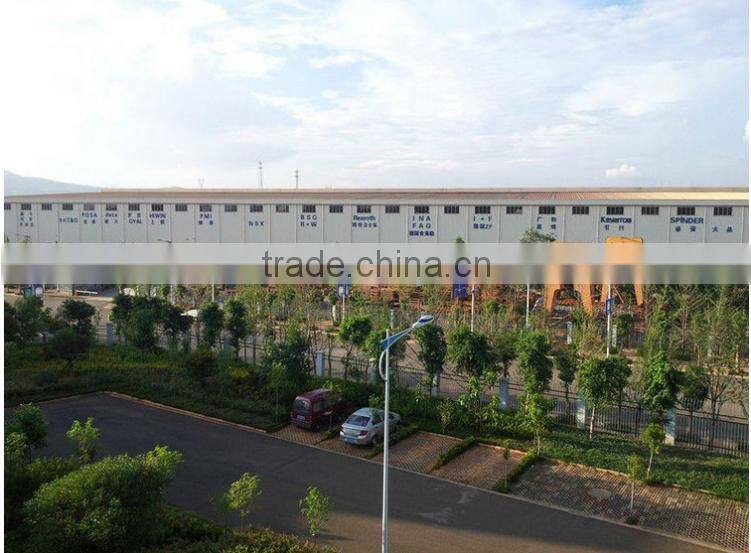

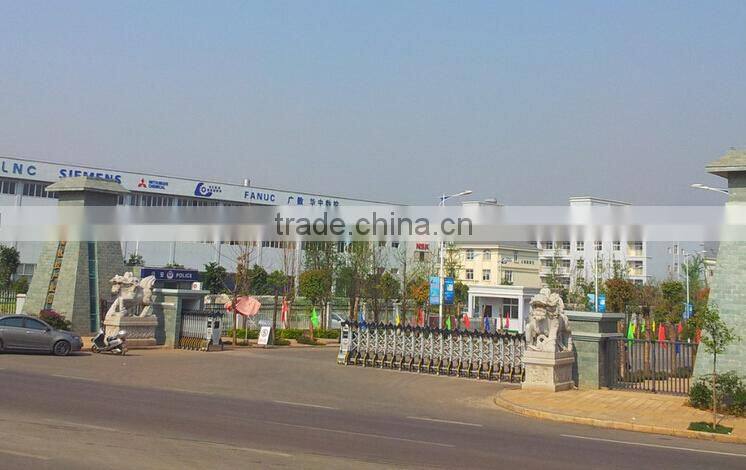

FACTORY
Products are dismantled into different parts, coated with rust-proof paint and wrapped with a plastic cover. The parts will be put into fumigated wooden cases and loaded into containers as planned. Inside the container, the parts will be fastened with iron cable.
1. Free installation and debugging
2. Free operator training
3. Free maintenance within 1 year
4. Long warranty and technology support
Huaian Haoyang Machinery CO., LTD., located in Jiangsu, one of the most developed province of China. We are an industry and combination enterprise with several years’ development. HAOYANG has gained its position of prominence over the years in the field of CNC Machining Center, CNC Lathe Machine, Boring and Milling Machines for large size components. HAOYANG boring and milling machines can be used in the fields like energy, aerospace, shipbuilding, diesel engine, defense, earthmoving and general mechanics.
We have already passed the ISO9001 and CE authentication. The trade part is the agent of CNC machines like boring machine, CNC Milling Machine, CNC lathe, machining centers and so on. They are well known for their strength, construction, durability, low maintenance cost and ease of operation.
We do business with sincerity and honesty, and welcome anyone who wants to establish business relationship with us.
If any products are of your interests, please do not hesitate to call us. Or contact at Skype: jianhai2012
In order to make you know more about us, here ntruduce more details to you:
1.After-sales service:
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
2. Delivery Date: it will be confirmed when you make the order.
3. Payment Terms:
3.1. 30% Deposit by TT before production and 70% payment by TT before shipment;
3.2. 30% deposit by TT before production and 70% L/C at sight before shipment;
3.3. 100% L/C at sight.
4. Our advantages:
4.1. We always offer what you want. We never recommend anything that you don’t need.
4.2. We have the best price for the similar machines of the same quality.
4.3. We always offer excellent after-sale-service. We are not the supplier who expect only once business with a customer, we always try to do the best for long-term business relationship.
Q1: what is your payment term?
A1: we prefer 30% TT as deposit and 70% TT before sending machine.
Q2: what is your warranty for the machine?
A2: The warranty for the machine is 12 month.
Q3: Can we visit your factory?
A3: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q4: How do we get the training for the machines?
A4: You can send your people to our factory and we will offer training free of charge; or we can send our engineer to our place.
