Specifications
-20 years' experience in worm reducer-CE, ISO9001
-Credible quality
-Delivery in time
-Long lifetime
About us
We are one of the leading manufacturers of gearbox in China, specialized in gearbox industry for 22 years. Our products have been reputed by our customers for long. Manufacturing according to the ISO9001 quality control system guidelines. We help our customer develop special gearbox for their application and OEM service offered.
Product features

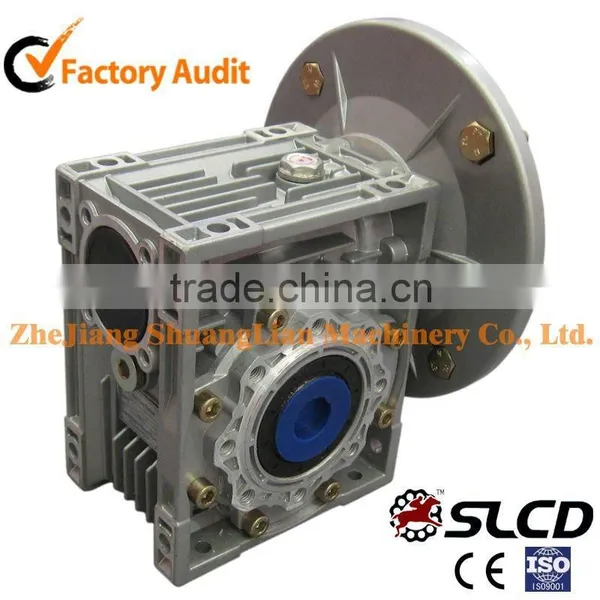

1. WJ series worm reducer adopt aluminium alloy or cast iron square housing, small size and elegant appearance.
2. It is flexible and convenient to install,steady running,efficent radiator,low noise,high carrying ability.
3. The products have been widely used for machinery equipment, such as chemical, plating, ceramic, pharmaceutical, leather, foods,beverage,etc.
General Technical data
| Housing material | ZL108 Al-alloy or HT200 cast iron |
| Worm wheel material | ZCuSn10Pb1 |
| Worm gear material | 40Cr |
| Lubricating oil | GB Gn230-460 Synthetic or Mineral oil |
| Efficiency | 50%~65% |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 50°C |
| Temp. rise (Oil)(MAX) | 60°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | C&U or other brand requested |
| Brand of oil seal | NAK--- Taiwan or other brands requested |
| Model | Shaft Dia. |
(mm) | Center Height | Output Flange Dia. | Power | Ratio | Permitted torque | Weight |
| Solid(h6) | Hollow(h7) | (mm) | (mm) | (kw) | (Nm) | (KGS) | ||
| Wj30 | 14 | 14 | 40 | 80 | 0.09~0.3 | 7.5~100 | 22 | 1.5 |
| Wj40 | 19 | 18/19 | 50 | 110 | 0.12~0.5 | 7.5~100 | 55 | 2.5 |
| Wj50 | 25 | 25 | 60 | 125 | 0.18~0.7 | 7.5~100 | 120 | 4 |
| Wj63 | 25 | 25 | 72 | 180 | 0.37~1.5 | 7.5~100 | 175 | 6 |
| Wj75 | 28 | 28 | 86 | 200 | 0.55~3 | 7.5~100 | 280 | 9 |
| Wj90 | 35 | 35 | 103 | 210 | 0.75~4 | 7.5~100 | 425 | 13.5 |
| Wj110 | 42 | 42 | 127.5 | 270 | 1.1~5.5 | 7.5~100 | 585 | 43 |
| Wj130 | 45 | 45 | 147.5 | 320 | 1.5~7.5 | 7.5~100 | 850 | 67 |
| Wj150 | 50 | 50 | 170 | 320 | 2.2~15 | 7.5~100 | 1500 | 100 |
| Remark: the weight without motor | ||||||||
Combined system
Packages
For more parameters and dimensions, please contact with us. Welcome to send us inquiry!
