Specifications
1) Designed with rollers, inclined properly2) First in and first out
3) Goods can be reser
4)powderp coated finish
Flow Through Racking
Overview of fluent shelves

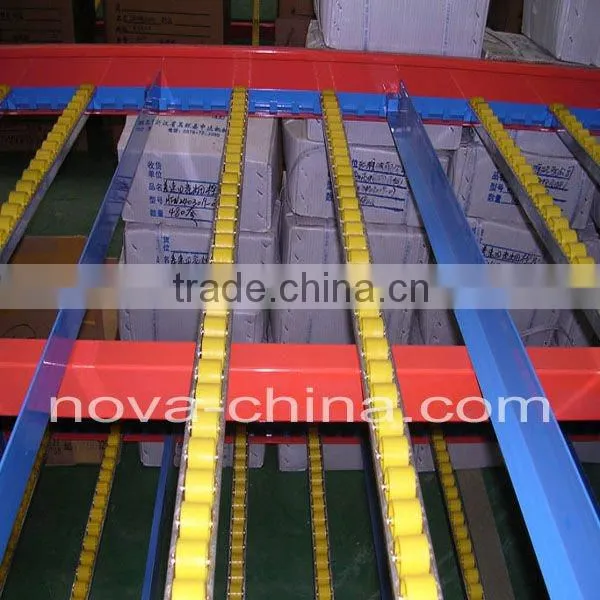

Carton flow rack is also called sliding type rack, using roller rail made of aluminum alloy, sheet metal. Because of the weight of goods rack, inventory from one side channel, pick up the goods on the other side channel to achieve FIFO, convenient storage, as well as a replenishment times pick up. Carton flow rack is of high storage efficiency, suitable for large quantities of goods of short-term storage and sorting. Can be equipped with electronic label, easy management of goods, commonly used containers with sliding turnover box, parts boxes and cartons, suitable for large quantities of goods and short-term storage and sorting.
Widely used in distribution center, assembly workshop and high frequency shipping warehouse.
Carton flow rack structure characteristics: flow rack rail connected directly to the front and rear cross beam and a middle supporting beam, and the beams directly hung on the uprights, flow rack installation gradient depends on the container size, weight and flow rack depth, usually from 5% to 9%. Flow roller bearing capacity of only 6kg per piece, when the goods are heavier, can install 3-4 more roller in a race way. Usually in the direction of depth every 0.6m mounted to a support beam to increase stiffness of the roller rail. When the race way is longer, can use a separation plate to sepeate the rolling rail. Pick up goods end need to install brake to decelerate the speed of the goods, reduce the impact.
