Help CenterShuttle Racking for Steel Pallet
US$ 0.95 - 1.1
MOQ: 6 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
NOVA
Type:
Drive-In Pallet Rack
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing port or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Radio Shuttle Racking From Chinese ManufacturersUS$ 0.91 - 1.01MOQ: 2 Tons -
Stable Big Rack ShuttleUS$ 0.91 - 1.01MOQ: 2 Tons
-
High Quality Shuttle RackUS$ 0.91 - 1.01MOQ: 2 Tons
-
Drive-In Pallet Rack Systems, Warehouse RackingUS$ 0.9 - 1.1MOQ: 2 Tons
-
Cold Store Racking Systems, High DensityUS$ 0.9 - 1.1MOQ: 2 Tons
Place of Origin
Jiangsu, China
Brand Name
NOVA
Type
Drive-In Pallet Rack
Material
Stainless Steel
Feature
Corrosion Protection
Use
Warehouse Rack
Certification
CE
Width
customized
Height
customized
Specifications
1.Radio shuttle racking2.ISO9001,14001
3.Strict quality control, manufacturing price
4.Standard or customized

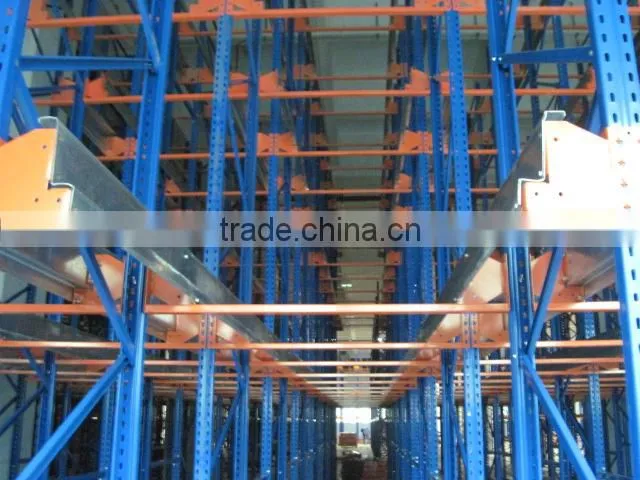

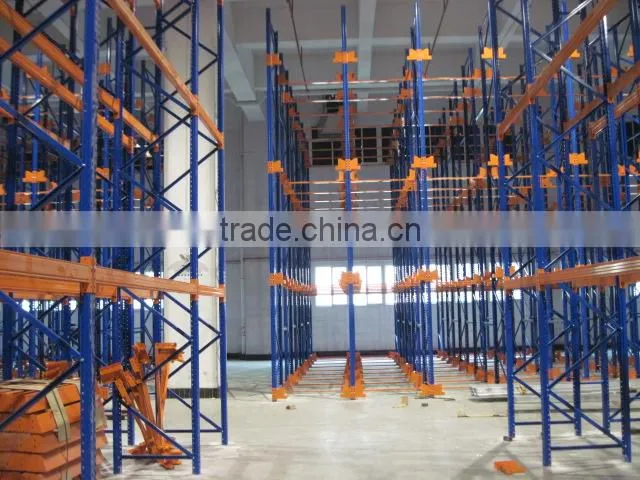

- shuttle racking
- 75 pitches adjustable

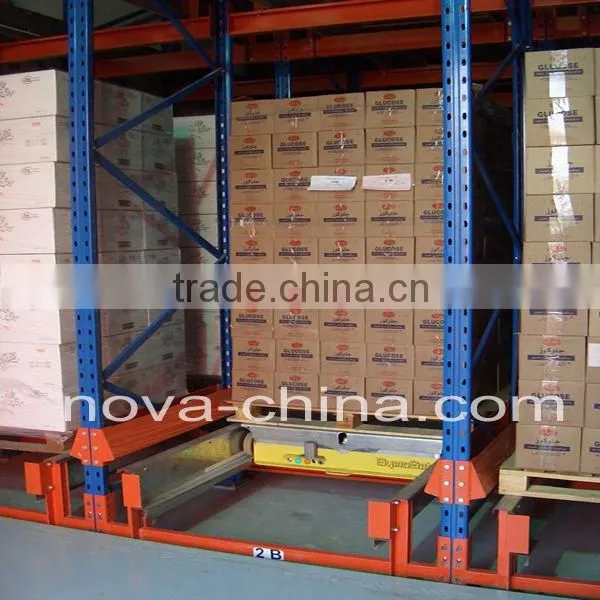

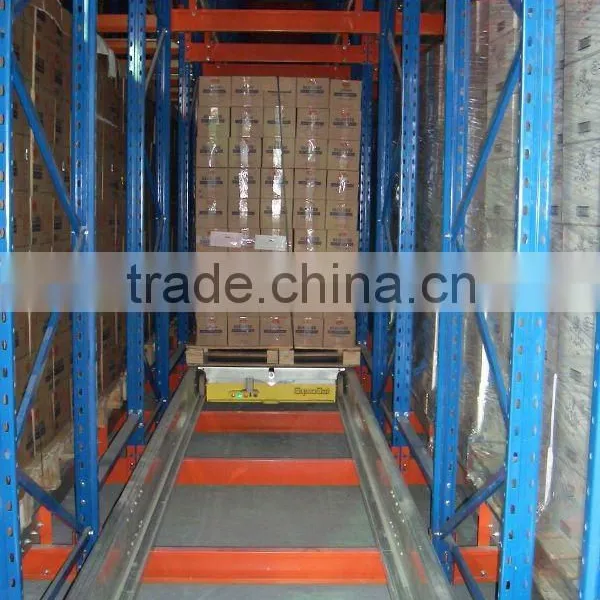

- conventional forklift handling and radio shuttle : protecting the frame from being hit by the forklift as the forklifte doesn't need to drive in the aisle.(the forklift just needs to wait for the radio shuttle coming)
- double bracket and railbeam
- powder coated in color orange (blue , grey ,yellow etc ) to prevent it from corrosion
- the size of double bracket depends on the size of upright
- blue powder coated railbeam
- above is the picture of our headquarter and factory
- the front of our factory
- If you are interested in our products, you are welcome to visit our factory and office any time at your convenience.
- Here is the route : Airplane to Nanjing lukou airport, then call us , we will pick you up there
The advantage of shuttle pallet rack:
- high density storage style, high warehouse utilization rate
- High work efficiency, greatly reduce operating time
- Operating flexibility, the access of goods can be FIFO, can also be FILO
- And good safety, reduce damage, improve safety productivity
The working principle of shuttle pallet rack
- Inventory: The goods are put on the front end of the storage tunnels by the forklift truck, through radio remote control shuttles, can carry pallets of goods in track operation;
- Pick: radio remote control shuttle carries the pallet from the farthest end of the storage tunnel to the nearest end of the racking system, put down the pallet from the racking system by the forklift truck;
- Mobile shuttle : The shuttle can be place in different storage tunnel by the forklift, several storage tunnels can share a shuttle. The quantity of shuttle is depend on the depth of the storage tunnel, total of goods, shipping quantity, shipment frequency and other factors
Shuttle rack technical parameters
- Load: 1000~1500kg
- Speed: 0.7-0.9 M / sec(unload)
- Speed:0.6-0.8 M / sec(load)
- Power unit: lithium manganese battery
- Rated voltage: 26 V
- Battery: time greater than 8 hours
- Sensing range: remote sensing range within 50 meters
Specification:
1.Upright: |
|
2.Beams |
|
3. Load Capacity & Dimension: |
|
4.Matieral and Finish |
|
5.Pallet support bar |
|
Others:
| Design: |
Professional design for your requirment:
|
| Price |
|
| Package |
|
| Payment |
|
| Shippment |
|
| Quick Delivery. |
|
| Certification |
|
About us
Jiangsu NOVA Logistics System Co.,Ltd. was founded in 1997 .
Our company has passed the International Agreements both on ISO9001:2000 quality system certificate and ISO14001:2000 environmental system certificate. Moreover Nova is the only one who got the certificate of ISO10012 management system in the field.
Our cilents are all over the world.
We have been suppliers of GE , TOYOTA , WAL- MART , SIEMENS , TOSHIBA , BOSH , IVECO , HONDA , LG etc.
Name : Liz
Positon: foreign trader
Skype:lizzy.ma1
Phone number: 86-25-51873963
Mobile : 86-13851540065
Company: Jiangsu NOVA logistics System Co.,LTD
Address: 9th Floor, Building 1, Zijinxicheng Center, No.118, Olympic Street, Nanjing, China
MORE INFO:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
30,000-50,000 square meters
Total Employees
301 - 500 People
