High Quality Metal AS/RS System Racking

Specifications

Pallet Racking:
1).Easy to pick heavy goods ;
2).High strength and durability;
3).Abundant accessories;
4).Suitable pric

Jiangsu Nova AS/RS System

Automatic warehouse racking system

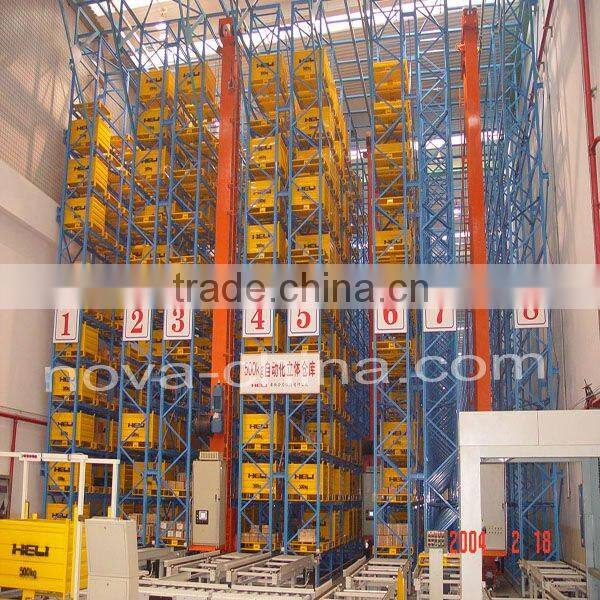

1. Racking

Structural feature: AS/RS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer. AS/RS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

2. Stacker

Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; all the way tracing technology by information transferring; electric components are imported from abroad; touching screen interface for easy operation; making manual, semiautomatic, automatic and linkage control come true; used in many situations by combining with other logistics equipment.

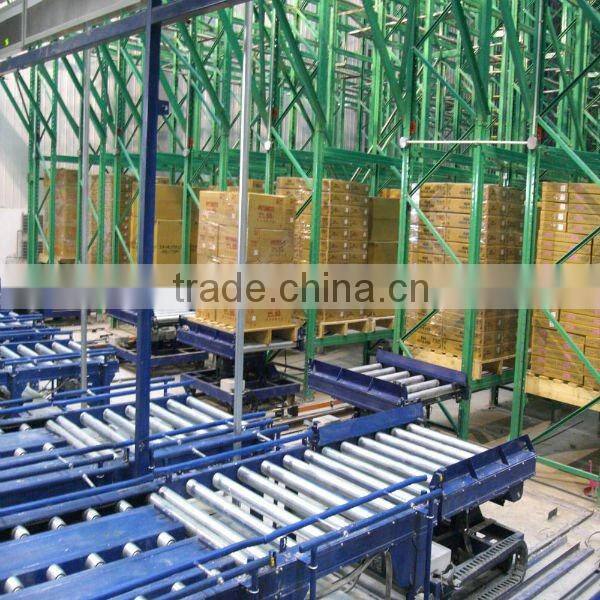

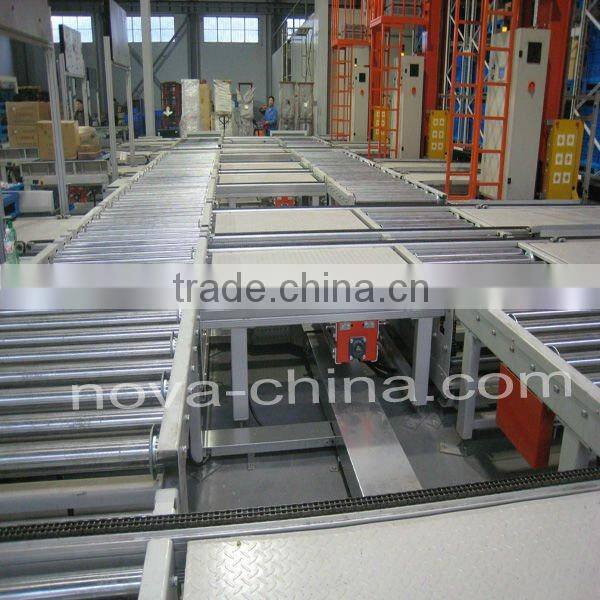

3 .Conveying system

Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.

4. Controlling system


Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller can operate all conveyors offline, doing conveying of goods automatically.
Please refer to the attached drawing for details of conveying system

5. WMS System

Hardwares of WMS System: star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.
Softwares of WMS System:
Operating system: WINDOW 2000X SEVER
Data-base: MS SQL SEVER 2000X
Warehouse management software: WMS
Equipment controlling software: ECS
Bar code management software: RFS

6. Other related equipment

Other related equipment include switching cart, rail cart, O/R table, automatic guided vehicle, auto-picking system, electronic label, pallet lift and so on.























1. What makes you different with others?







1) Our Excellent Service
For a quick, no hassle quote just send email to us







We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at 0086-25-51873964, we will answer your questions immediately.







2)Our quick manufacturing time
For Normal orders, we will promise to produce within 15 days.







As a manufactory, we can essure the delivery time according to the formal contract.



3)Our Special Export Design
We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.







4)Our Warranty Time
The High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty !







2. What is delivery times?







This depends on the product. Typically standard products are delivered within 20 days.
The delivery time of the special products is according to the time of setting up of the tooling.







3.What is the term of payment?







  1) T/T payment.







  2) Irevocable  L/C at sight







4. May I know the status of my order?







Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.







Welcome you contact with Mia for more informations:



Skype: Mia Shen (Nova)

Tel: 86-025-51873964

Whats app: 86-13260992372











Paying special attention to providing customers with quality products, the company has trained a professional team of engineers who always aim at developing advanced logistic equipment. Presently, our company is equipped with more than tens of automatic production lines, hundred sets of general equipment and three GEMA painting systems for producing a wide range of racks.



In its development ,“Customer First” is kept as our operational principle under which Nova has carried out thousands of big projects including sample storage racks and AS/RS System for companies both at home and abroad.







simple racking system for such multinational corporations such as WAL-MART, SIEMENS, BOSH, SEW, FEDEX, ALAZON, TOYOTA, AMAZON, DangDang On-Line, 360buy, FAW, Mercedes-Benz, Chery Global, Midea, Beijing Capital Airport, etc.





In Nova, the whole process including design, purchase of raw material, production, quality control, installation, after sales service, ect is complied strictly with ISO9001, ISO14001 and ISO10012.
