Special specifications is available

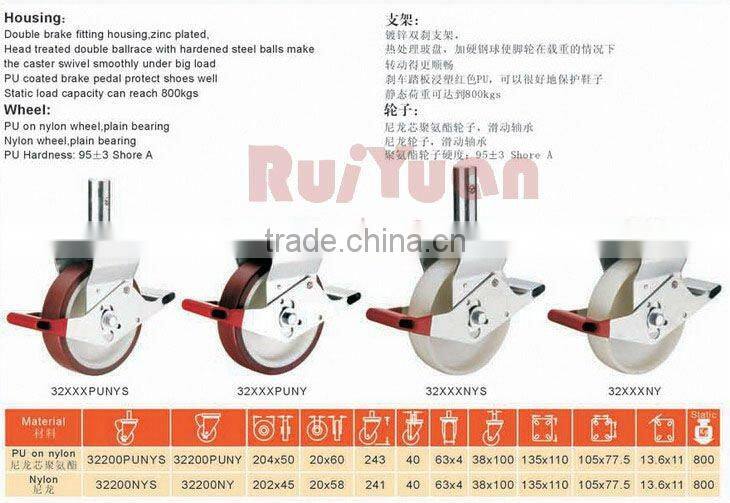

| Technical Data | |
| Wheel diameter | 202mm |
| Width of Tread | 50mm |
| Size of Plate | 135x110mm |
| Plate hole centres | 105x77.5mm |
| Plate hole | 13.6x11mm |
| Offset | 40mm |
| Overall height | 241mm |
| Load capacity(static) | 800kg |
| Hardness of tread | A 95 Shore |
1.Size:6" and 8"
2. Material: PU on Nylon
3.Fitting: Double brake & double pedal
4.Load capacity: 800 kg
5. Swivel models with optional single-pedal and double-pedal foot brakes
We builds and manufactures scaffold casters and wheels, keeping your scaffolding units mobile. In addition to keeping the workflow rolling, scaffold casters may be equipped with brakes for solid non-rolling stability. Speak to a representative all sizes and requirements for filling your scaffold wheel and caster needs.
Scaffold Caster Applications
Scaffold casters perform well for scaffolding and many other applications. Also suitable for floodlight stands, moveable platforms, and motion picture equipment.
Various wheel sizes and weight capacities meet the requirements for any situation where scaffold and platform units need to be mobilized.
Grease fittings standard on certain scaffolding caster wheel models.
Scaffold Caster Options
Wheels for scaffolding are available in a variety of materials, including rubber on steel, rubber on cast iron, polyurethane on polyolefin, and phenolic.
Scaffold wheel foot operated brakes, engaging both swivel and wheel for optimum stability by using serrated upper brake shoe and curved lower brake.
For more information, contact The Rounya Caster Company, No.A1-2,1st Industrial Zone,529932 Phone:+86 (0) 13411317724: +86-662-2288280 Fax: +86-662-2288290
Website:
Please address reader service inquiries at the above address to:
Fenny chan, Sales Manager, Rounya Caster Company
E-mail inquiries to: info(at)
