matel can making machine
Process Flow of Powder Coating
1.Loading→2.Pre-treatment(Spraying Pre-treatment)→3.Electrostatic Powder Coating(Auto spraying/Manual repair)→4.Curing(180℃~220℃/15~20mins)→5.Cooling(naturally)→6.Unloading
Here is a video for the Process Flow of Powder Coating :
https://youtu.be/KmZsDjuTe14
___________________________________________________________________________________________________
main parts of powder coating line:

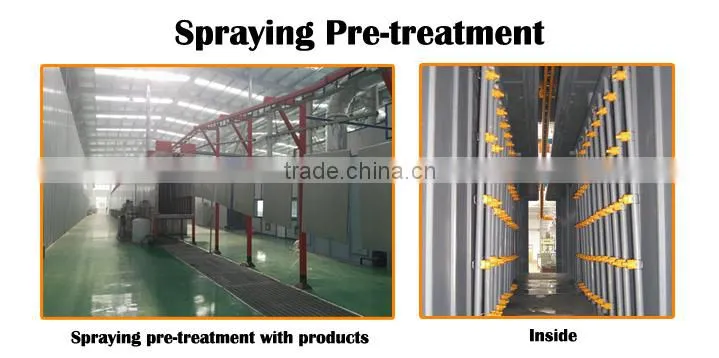

1. Pre-treatment System:Fully Automatic Spraying Pre-treatment.

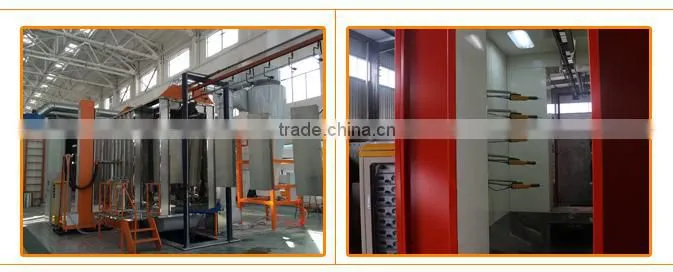

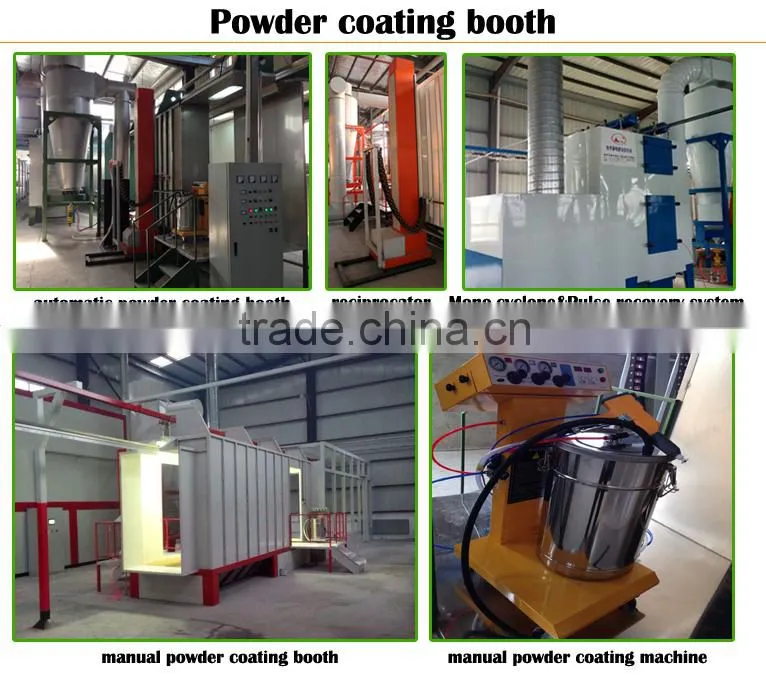

2. Powder Coating Booth System:
| Main Parts of Powder Coating Booth System | ||||||
| NO. | Name | |||||
| 1 | Powder Coating Booth | |||||
| 2 | Reciprocator | |||||
| 3 | Automatic Powder Coating Gun | |||||
| 4 | Manual Powder Coating Gun | |||||
| 5 | Mono-cyclone Recovery System(stage one) | |||||
| 6 | Pulse Recovery System(stage two) | |||||

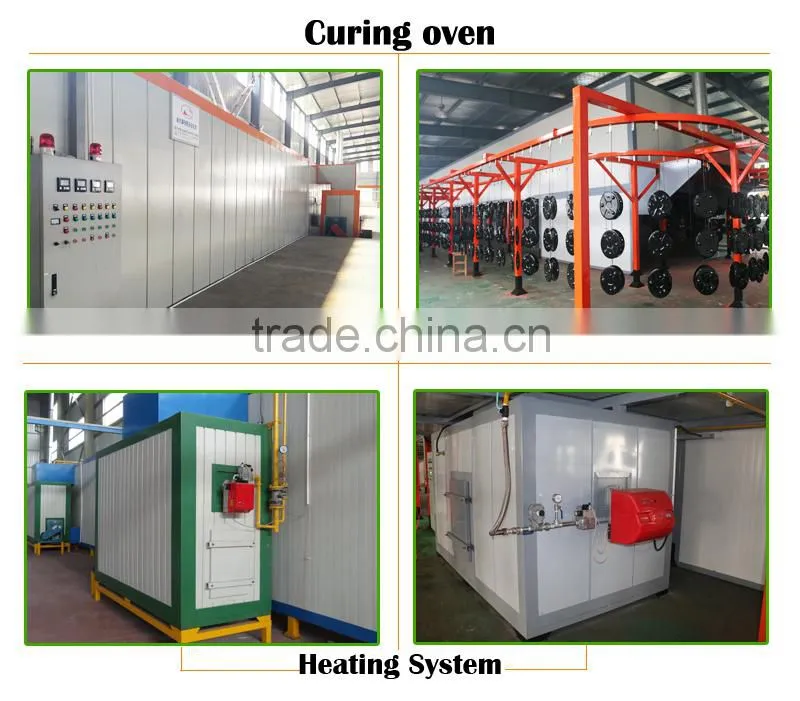

3. Curing oven: Tunnel curing oven or bridge type curing oven.
Heating System using fuel can use Natural gas, LPG, Diesel .

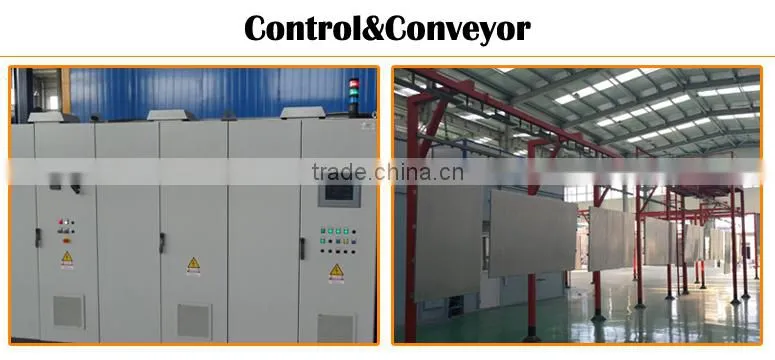

4. Control&Conveyor : PLC control, with or without touch screen.

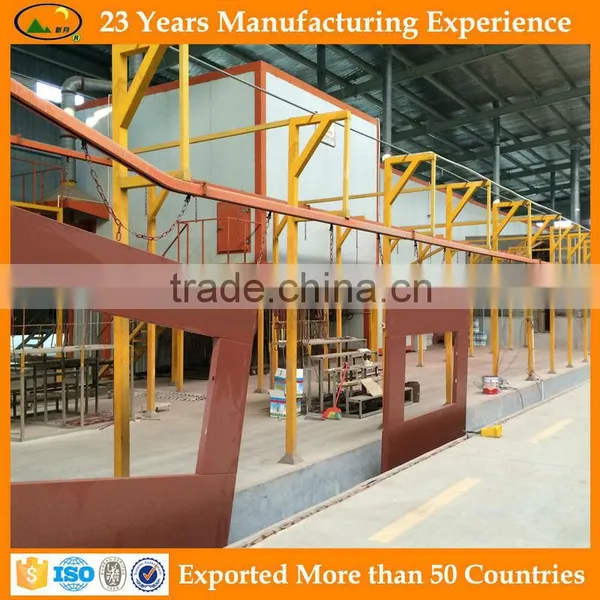

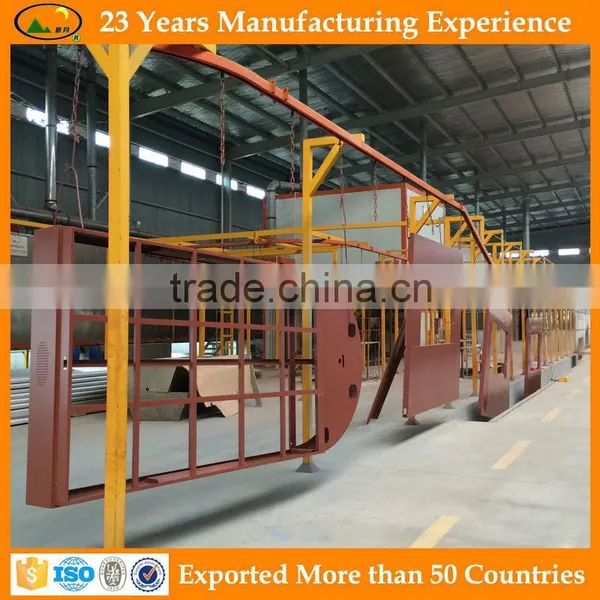

Closed-circuit conveyor, power and free conveyor, multi-track conveyor.
Advantages of Fast Color Changing Powder Coating Booth System
1. Powder coating booth uses antistatic PP board to make sure its surface does not stick powder.
2. At the bottom of powder coating booth installed automatic reverse blowing device to ensure powder siphoned off recycle use.
3. We adopt the most advanced mono cyclone&pulse recovery system, which change color in 10~15 mins.
4. mono-Cyclone recovery system powder recovering rate 98.9%, solve the problem of powder overflow.
Advantages of Curing Oven
1.Curing oven adopt unique return air system, the temperature inner can control in 5℃.

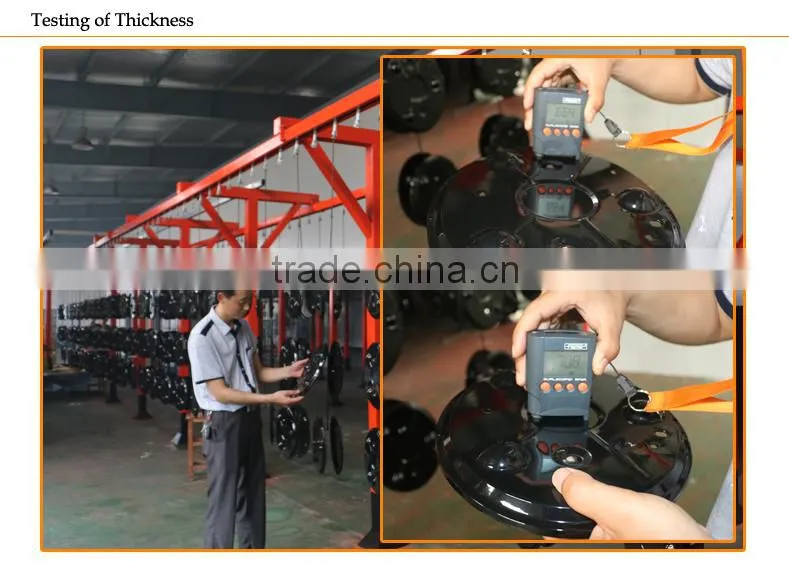

2.The powder thickness of the workpiece with 60~80 micrometer.
3. The color of the workpiece nearly the same.
XINYUE Spraying — European Technology , Chinese Price
1. 23 years manufacturing experience(1992-2015).
2. Over 50 countries and regions exported experience.
3. Independent research and development of big-cyclone recovery system, close to ITW Gema.
4. Deeply cooperation with Italy TRANSMETAL S.p.A, the original layout design and manufacture.
Taizhou Xinyue Spraying Equipment Co., Ltd.Was established in 1992.Our company is specialized in metal coating equipment research and manufacture.The coating equipment of "XINYUE" brand is a famous brand in Jiangsu province,China. We established good cooperation with Italian TRANSMETAL S.p.A company!
We warmly welcome you to visit our company <see more>
First Pre-sale services:
1). Select equipment model;
2). Design and manufacture according to client’s special requirement.
3). Train technical personal for clients.
Second Services during the sale:
1). Pre-check and accept products ahead of delivery.
2). Help clients to draft solving plans.
Third After-sale service:
1). Assist clients to prepare for the first construction scheme.
2). Install and debug the equipment.
3). Train the first-line operators.
4). Examine the equipment.
5). Take initiative to eliminate the trouble rapidly.
6). Provide perfect service.
7). Provide technical exchanging.
Aluminum Powder Coating Line Cabinet Powder Coating Line Guardrail Powder Coating Line
