Home > Consumer Electronics > Display & Accessories > LCD Module > 4.3" 480x272 TFT LCD Display Module FFC Connector MCU 8Bit With Controller SSD1963 With FM7843 RTP Controller

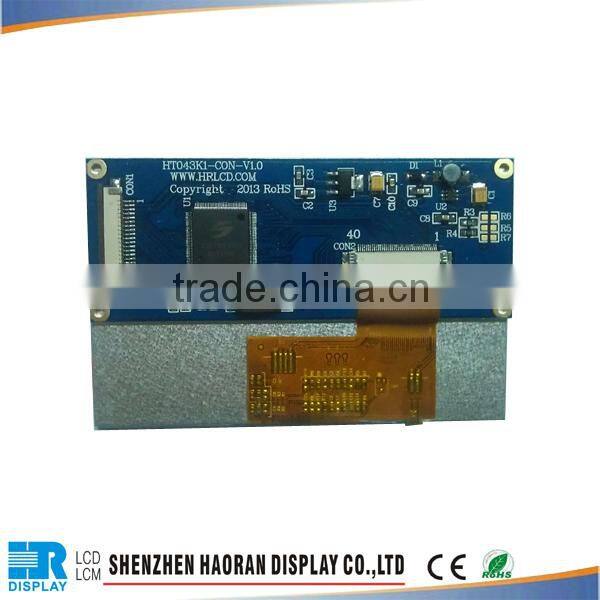

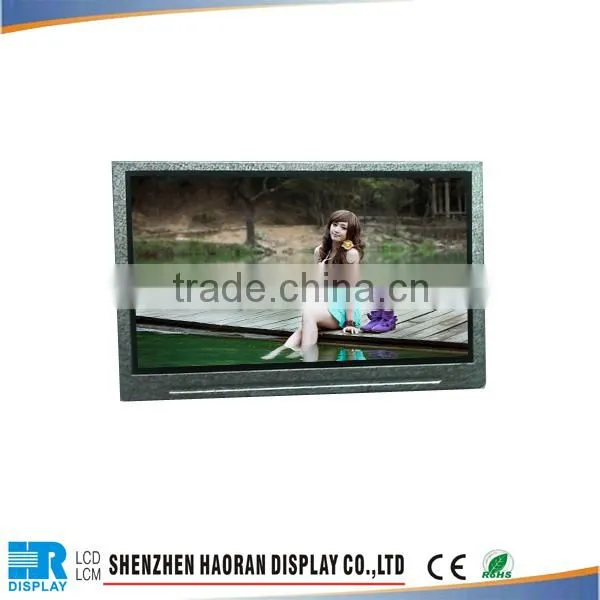

4.3" 480x272 TFT LCD Display Module FFC Connector MCU 8Bit With Controller SSD1963 With FM7843 RTP Controller
US$ 18 - 25
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HaoRan
Model Number:
HT043K4
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TFT LCD Module 5" Lcd Module Hdmi Lcd Display PanelUS$ 8 - 15MOQ: 1 Piece -
5inch TFT LCD Module 5" LCD DisplayUS$ 14.2 - 19.1MOQ: 1 Piece
-
3.2inch Lcd Display With 8bit/9bit/16bit/18bit InterfaceUS$ 7 - 10MOQ: 1 Piece
-
Lcd Display Panel 3.2inch Micro Lcd Display 8bit/9bit/16bit/18bit InterfaceUS$ 7 - 10MOQ: 1 Piece
-
Lcd Display Panel 3.2inch Mobile Phone Lcd Display 8bit/9bit/16bit/18bit InterfaceUS$ 7 - 10MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
HaoRan
Model Number
HT043K4
Type
TFT
Specifications
1-Item: HaoRan 4.3" lcd module2-Resolution: 480x272
3-Type: White,transmissive
4-Touch panel:Option
5-SSD1963 8/16bit
| Main Parameters: | |
| Item | HaoRan 4.3inch lcd screen with SSD1963 lcd controller board |
| Model name | HT043K4WQ20T |
| Display Mode | Normally White,Transmissive |
| Resolution | 480 x3 RGB x272 |
| Technology Type | a-Si TFT active matrix |
| Pixel Pitch (mm) | 0.198(H) x 0.198(V) |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Outline Dimension | 105.50(W)x67.2(H)x4.2(D) |
| Active Area(mm) | 95.04(W)x53.856(H) mm |
| Interface | MCU 8080 8Bit/16Bit Parallel |
| Viewing Direction | 6 o’clock Display |
| Surface treatment: | Anti-Glare |
| Touch Panel | Optional |
| LED Numbers | 10 pcs |
| Color Depth | 16.7M color |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~+80°C |
| Product Range |
|
♦ Monochromic LCDs/LCD Modules |
| ◊ VA,TN,HTN,STN,FSTN,DFSTN LCD Panels and its accessory |
| ◊ Graphic,Character,Alphanumeric and In cell touch modules |
| ◊ COB,COG,TAB Package |
| ♦ Color TFT LCD Modules |
| ◊ 1.67inch to 10.4inch color TFT LCD Display |
| ♦ Touch Screen |
| ◊ Capacitive touch screen |
| ◊ Resistive touch screen |
| ♦ For more details pls visit our website / |
| Main Application | |
| Telecommunication Devices | Telephone,interphone,watch,tablet PC,radio,etc |
| Consumer Products | Camera,DVD player,toy, Cell Phone,game player,etc |
| Technical Equipment | Elevator controller,Industrial machine,etc |
| Office Automation | Printer,scanner,attendance machine,fax machine,etc |
| Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
| Automobile | GPS,video player,speedometer,audio broadcast,etc |
| IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
| Medical Equipment | Ultrasound machine,therapeutic equipment Blood pressure meter,etc |
| |
| Part Of TFT Products List : | |||||||||
| Model | Display Size | Display Type | Outline size | Active Area | Viewing ANGLE | Driver IC | Interface | Tuch panel | Note |
| HT024A | 2.4 | 240*320 | 42.72*60.26*3.5 | 36.72*48.96 | 12 | ILI9341 | 8080 | Y | 37P |
| HT028C | 2.8 | 240*320 | 50.0*69.2*3.55 | 43.2*57.6 | 12 | ILI9341 | 8080 | Y | 37P |
| HT030K1 | 3.0 | 240*400 | 45.04*77.0*3.45 | 38.88*64.8 | 12 | ILI9327 | 8080 | Y | 40P |
| HT032C | 3.2 | 240*320 | 55.04*77.7*3.6 | 48.6*64.8 | 12 | ILI9341 | 8080 | Y | 37P |
| HT035C | 3.5 | 320*480 | 54.58*84.71*2.0 | 48.96*73.44 | IPS | ILI9488 | 8080 | N | 37P |
| HT035G | 3.5 | 320*240 | 76.9*63.8*4.5 | 70.08*52.56 | 6 | NT39016D | RGB | Y | 54P |
| HT043B | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | OTA5180 | RGB | Y | 40P/10 LED |
| HT043C | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | OTA5180 | RGB | Y | 40P/7 LED |
| HT043K1 | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | SSD1963 | 8080 | Y | 30P |
| HT043K2 | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | SSD1963 | 8080 | Y | 30P/with RTP Controller |
| HT050A | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | ILI6126C | RGB | Y | 40P |
| HT050B | 5.0 | 480*272 | 120.8*75.85*4.6 | 110.88*62.832 | 6 | ILI6480G | RGB | Y | 40P |
| HT050K1 | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | SSD1963 | 8080 | Y | 30P |
| HT050K2 | 5.0 | 480*272 | 120.8*75.85*4.6 | 110.88*62.832 | 6 | SSD1963 | 8080 | Y | 30P |
| HT070A | 7.0 | 800*480 | 164.9*100.0*3.2 | 154.08*85.92 | 6 | ILI6126C | RGB | Y | 50P |
TFT LCD display Module with SSD1963 lcd controller board with touch panel and touch controller
Complying with RoHS.
Warranty: All parts are tested working well before shipping out
