wpc machine wpc profile machine pvc wood plastic door frame making 1325
1 .Product description
Features:
a.1325-type engraving machine is a classic engraving machine, equipped with all the high-quality components.
b.using Shuntong 3kw spindle (water), frequency 3.7kw, Weihong system
c. table for leading international high strength, vacuum adsorption countertops, high adsorption power can be strong adsorption of materials of different sizes
d. intelligent protection work table tops, to prevent misuse of goods software errors may cause damage; intelligent processing cross-border protection,
e. prevent over processing format layout design of mechanical collision caused the phenomenon.
f. Weihong system, auto-complete multi-level 3D processing, can be fast, smooth three-dimensional machining, engraving or cutting.
g.overall steel welding tempering aging treatment, solid shape, Gantry mobile, fixed working table can be arbitrary processing surface material.
2 . Technical Parameters:
project
Performance
parameter
Optional
stroke
X stroke
1300mm<2500mm
Y travel
2500mm<5500mm
Z stroke
120mm<450mm
Platform size
1440x2915mm
Accuracy
Precision
0.04mm
Repeatability
0.05mm
structure
Mesa structure
Vacuum
Submit adsorption
XYZ structure
X, Y rack, Z screw
speed
The maximum speed of blank lines
2000 / min
Maximum operating speed
1500mm / min
Spindle
Spindle power
3.0KW
8.0 Spindle
Run mode
Stepping
Operating Voltage
AC380v / 50Hz
AC380v / 60Hz
Run command
G code
operating system
Weihong system
net weight
1600kg
GW
1900kg

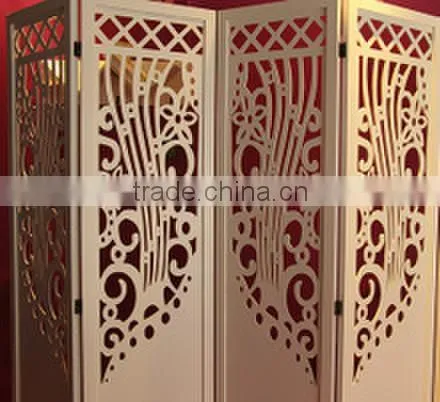

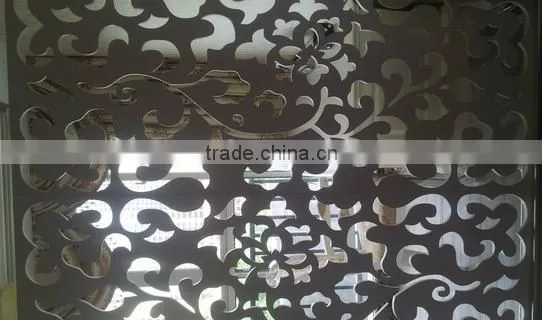

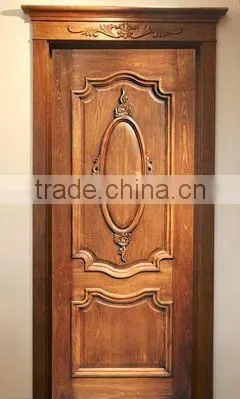

Sample :
