Wood Working Cnc Router CE 1325A

                                                AUTO TOOL CHANGE CNC ROUTER - 1325A

1.Description

With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass-producing of furniture with the vacuum holding way and dust collector.

We use top quality components for the machine, such as HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear and so on, to keep the machine in best condition even after working for many years.

2. Specification

Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

Table Size

1450×2940mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

6

Frame

Welded Structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without Spindle)  3.0Kw

10

Max. Rapid Travel Rate

33000mm/min

11

Max. Working Speed

25000mm/min

12

Spindle Power

3.0/4.5/6.0/7.0 kw

13

Spindle Speed

0-18000RPM

14

Drive Motors

Stepper System

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

DSP System        (Options: Ncstudio/Mach3 PC Software)

18

Computer Interface

USB

19

Flash Memory

128M(U Disk)

20

Collet

ER32/25

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

3300X2100X2300mm

26

N.W.

1750KG

27

G.W.

1980KG

28

Optional Parts

Air Cooling Spindle or Water Cooling Spindle

Syntech Control System

Dust Collector

Vacuum Pump

Rotary System

Mist-cooling System

850W Yaskawa/800W Panasonic Servo Motors

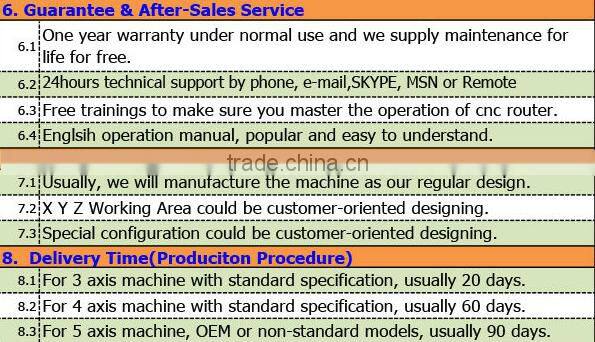

4. Guarantee & After Sales Service

1. The machine is guaranteed for 12 months.

2. Technical support by phone, e-mail or MSN around the clock.

3. Friendly English version manual and operation video CD disk.

3. Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
