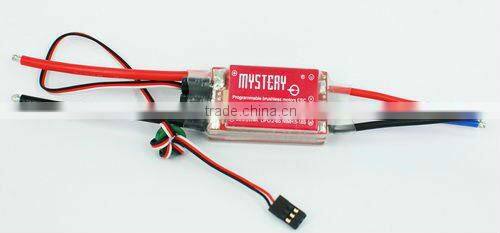

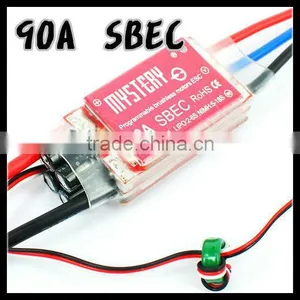

Topspeed 90A UBEC Brushless ESC Programablec Speed Control ESC

Specifications

Topspeed 90A UBEC Brushless ESC Programablec Speed Control ESC

No: MYH-90A
sustained current (A): 90A
max instantaneous current(A): 120A
output BEC(V/A): 5.5V/4A
mode BEC: SBEC
Number of battery/lithium battery: 2-6Lipo
Number of battery /nickel-hydrogen battery: 5-18NC
Size (width*length*height mm): 35*66*22
Weight (g): 95

Function Setup Menu:
1. The brakes: open/shut, shut is the default set.
2. Battery types: LiPo (lithium electricity) or NiCd/NiMh (ni-h/nickel every), LiPo is the default set.
3. Low voltage protection function: low/medium/high. (3.0 v / 65%) is the default set.
4. Recover to factory default Settings
5. Motor entrance angle settings: automatic/high/low. Low is the default set.
6. Accelerate startup settings: (provide accelerate start-up with linear accelerator and fast response), the mild is the default set.
7. The helicopter mode (for helicopter application), shut is the default set.
8. Motor steering: positive/reverse, positive is the default set.
9. PWM working frequency: 8 kHz/ 16kHz, 8 kHz is the default set.
10. Voltage protection mode: reduce power/stop immediately, reduce power is the default set.

Performance Characteristics:
Adopt powerful, high-performance MCU processor, users can set the use function according to their own needs which can fully embodies our product advantaged intelligent characteristics
Support unlimited highest speed of brushless motor
Support constant function
Elaborate circuit design, strong anti-interference performance
Startup mode can be set, throttle response is quick, and has very steady speed regulation, compatible with the fixed-wing aircraft and helicopters.
Low voltage value can be set
Built-in SBEC, with big load power of the steering gear
With multiple protection function: input abnormal voltage protection/battery low voltage protection/over-heat protection/throttle signal loss drop power protection
Electricity safety performance is good: Turn on the power, the motor will not start immediately no matter where the throttle levers, the remote control in any position.
Thermal protection: when the working temperature of the controller reached 120°C, the power output will be reduced by half, less than 120 °C, the power output automatic recovery.
Compatible with all remote operation set and support programming card settings
Set alarm sound judgment to the work situation after be charged with electricity
Fully self-owned intellectual property, which can realize the continual upgrading of the software, can customize according to customers' demand.

Packet content:
100% Brand New
1 X90A Brushless Speed Controller ESC
