Geo Marking Fully Intergrated GPS Surveying Instruments

FOB Price

US$ 1 - 10 / Set

10 Sets(Min. Order)

Port Chongqing
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Hi-target
Model Number	V30

Product Description

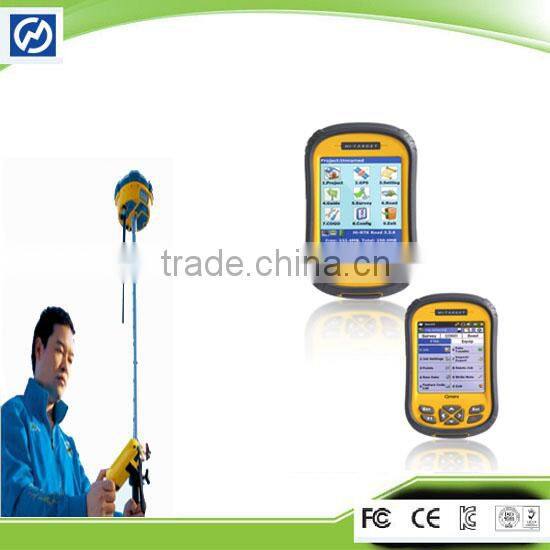

Geo Marking Fully Intergrated GPS Surveying Instruments

It is designed to meet high quality standards at an affordable price. It is outstanding in its

class, with a rugged design and user-friendly functions.

V30 GPS is equipped with a smart speaker guiding the whole operation.Multi one-button functions make fieldwork easier,such as auto base setup by one button,The rover can get fix solution once it is turned on.

Seamless operation in CORS system,Built-in GPRS/GSM/3G module ensures that the V30 works perfectly with network RTK positioning. IP67 dust/water protection. Withstands 3-meter natural fall onto concrete.

Rapid tracking and perfect avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.

Independence: No external cable or battery is needed, so you can put it where you want.

Compatibility: It can both directly transmit and forward in same-frequency or pilot-frequency

Multi-channel: It has 116 UHF channels, and supports custom channels.

Power: 5W / 10W / 20W / 35W adjustable

Distance: Its max working distance is 50 km, which depends on the setting altitude.

Resistant features: waterproof, dustproof, broken-resistant performance.

Intelligentialized self-diagnosis function

Model	GPS V30
Measurements
220 tracking channels
Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
High precision multiple correlator for GNSS pseudo range measurements
Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
Signal-to-Noise ratios reported in dB-Hz
Proven Pacific Crest low elevation tracking technology
Satellite signals tracked simultaneously
GPS	Simultaneous L1C/A, L2C, L2E, L5
GLONASS	Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
SBAS	Simultaneous L1 C/A, L5
Galileo	Simultaneous L1 BOC, E5A, E5B, E5AltBOC
BDS	B1, B2
QZSS	L1 C/A, L1 SAIF, L2C, L5
POSITIONING PERFORMANCE
Static and Fast Static GNSS surveying
Horizontal	2.5mm+0.5ppm RMS
Vertical	5mm+0.5ppm RMS
Post Processing Kinematic
(PPK / Stop & Go) GNSS surveying
Horizontal	1cm+1ppm RMS
Vertical	2.5cm+1ppm RMS
Initialization time	typically 10 minutes for base while 5 minutes for rover
Initialization reliability	typically > 99.9%
RealtimeKinematic(RTK) surveying
Horizontal	8mm+1ppm RMS
Vertical	15mm+1ppm RMS
Initialization time	typically < 8 seconds
Initialization reliability	typically > 99.9%
Code Differential GNSS positioning
Horizontal	25cm+1ppm RMS
Vertical	50cm+1ppm RMS
SBAS	0.50m Horizontal, 0.85m Vertical
HARDWARE
Physical
Dimensions (W x H)	19.50cm x 10.40cm(7.68 in x 4.09 in)
Weight	1.3kg (2.86lb) with internal battery, internal radio, standard UHF antenna
Operating temperature	below 45℃ to above 65℃ (-49℉ to +149℉)
Storage temperature	below 55℃ to above 85℃ (-67℉ to +185℉)
Humidity	100%, considering
Water/dustproof	IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and Vibration	Designed to survive a 3m(9.84ft) natural fall onto concrete
Electrical
Power 6V to 28V DC external power input
Power consumption 2.5W
Automatic Switching between internal power and external power
Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment
Internal battery life
Static 13 - 15 hours
RTK Rover (UHF/GPRS/3G) 10 - 12 hours
RTK Base 8 - 10 hours
I/O interface
1 x Bluetooth
1 x standard USB2.0 port
2 x RS232 serial port
2 x DC power input (8-pin & 5-pin)
COMMUNICATION AND DATA STORAGE
GPRS/GSM or 3G
Fully integrated, fully sealed internal GPRS/GSM or 3G
Network RTK (via CORS) range20-50km
HI-TARGET internal UHF radio (standard)
Frequency
Transmitting Power	0.1W, 1W, 2W adjustable
Transmitting Speed	Up to 19.2Kbps
Working Range	3~5Km typical, 8~10km optimal
Pacific Crest XDL micro Internal UHF Radio
Frequency	403~473 MHz
Transmitting Power	Up to 19.2Kbps
Working Range	3~5km typical, 8~10km optimal
Support most of radio communication protocol
HI-TARGET External UHF radio (standard)
Frequency	460 MHz with 116 channels
Transmitting Power	5W, 10W, 20W, 30W adjustable
Transmitting Speed	Up to 19.2Kbps
Working Range	8~10Km typical, 15~20km optimal
