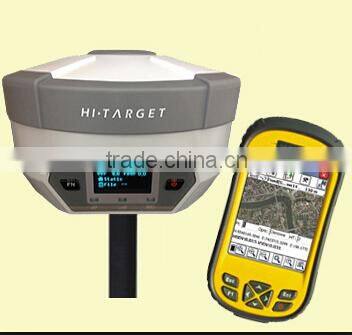

Hi-target H32 Gnss RTK System and V30 GNSS RTK System for Engineering Location
US$ 0.1 - 0.2
/ Set
1 Set(Min. Order)
- Chongqing
- T/T Credit Card
You May Like
-
Land Survey Instrument Geodetic Surveying Equipment With Hi-Target V30 GNSS GPS RTK Surveying Equipment
-
Global Positioning System Navigation Apply in Land Surveying Topographic Surveying Construction Layout
-
TILT SURVEY FOR Tilt Angle of 30 Degrees V90 Hi-Target Newest GPS RTK SURVEY GNSS EQUIPMENT
-
GNSS Landing SURVEY System Hi-Target V30 RTK GNSS Cadastral Survey
-
20km Long Working Range China Made Hi-Target GPS RTK External UHF Raido
-
Air Baud Rate 9600 Hi-Target GPS RTK External UHF Raido 35W
Product Details
| Place of Origin | Christmas Island | Brand Name | Hi-Target | |
| Model Number | H32 |
Product Description
GPS RTK Price China Made RTK GNSS Cheap Sale Survey instruments
MEASUREMENTS
• 120 Channels
• Proven NovAtel GNSS technology
• Multipath mitigating technology
• Auxiliary strobe signals, including a configurable output for time synchronization and mark inputs
GPS: L1, L2, L2C
GLONASS: L1, L2
Galileo: E1
GIOVE-A/GIOVE-B (test)
BDS/Compass
SBAS
QZSS
POSITIONING PERFORMANCE[i]
Static and Fast Static GNSS surveying
Horizontal: 2.5mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS
Post Processing Kinematic
(PPK / Stop & Go) GNSS surveying
Horizontal: 1cm+1ppm RMS
Vertical: 2.5cm+1ppm RMS
Initialization time: typically 10 minutes for base while 5 minutes for rover
Initialization reliability: typically > 99.9%
Real-time Kinematic (RTK) surveying
Horizontal: 10mm+1ppm RMS
Vertical: 20mm+1ppm RMS
Initialization time: typically < 10 seconds
Initialization reliability: typically > 99.9%
Code Differential GNSS positioning
Horizontal: 25cm+1ppm RMS
Vertical: 50cm+1ppm RMS
SBAS: 0.60m Horizontal
HARDWARE
Physical
Dimensions (w x H): 16.5 cm x 10.5 cm (6.50 in x 4.13 in)
Weight: 1.75kg (3.86lb) with internal battery, internal radio, standard UHF antenna
Operating temperature: -45℃to +65℃ (-49℉ to +149℉)
Storage temperature: -55℃ to +85℃ (-67℉ to +185℉)
Humidity: 100%, considering
Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and Vibration: Designed to survive a 2m (6.56ft) natural fall onto concrete.
Display: 128×64 resolution, 1.54 inch OLED screen
Electrical
Power 6V to 28V DC external power input
Power consumption 2.5W
Automatic Switching between internal power and external power
Rechargeable, removable 7.4V, 4400mAh Lithium-Ion battery in internal battery compartment
Internal battery life
Static 13 - 15 hours
RTK Rover (UHF/GPRS) 10 - 12 hours
RTK Base 8 - 10 hours
I/O interface
1 x Bluetooth
1 x standard USB2.0 port
2 x RS232 serial port
2 x DC power input (8-pin & 5-pin)
COMMUNICATION AND DATA STORAGE
GPRS/GSM
Fully integrated, fully sealed internal GPRS/GSM
Network RTK (via CORS) range 20-50km
HI-TARGET internal UHF radio (standard)
Transmitting Power: 0.1W, 1W, 2W adjustable
Transmitting Speed: Up to 19.2Kbps
Working range: 3~5Km typical, 8~10km optimal
HI-TARGET External UHF radio (standard)
Frequency: 460 MHz with 116 channels
Transmitting Power: 5W, 10W, 20W, 30W adjustable
Transmitting Speed: Up to 19.2Kbps
Working Range: 8~10Km typical, 15~20km optimal
Support other external communication device
For example, external GSM modem.
Data storage
64MB internal memory
Data formats
(1Hz positioning output, up to 50 Hz - depends on installed option)
CMR: CMR+, CMR input and output
RTCM: RTCM 2.1, 2.3, 3.0, 3.1 input and output
RTCA: RTCA
Navigationoutputs: NMEA-0183, NovAtel ASCII and Binary logs
