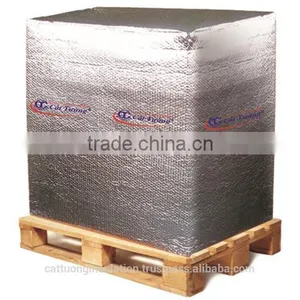

Help CenterReflective Bubble Insulation for Thermal Insulated Pallet Covers
Related Products
-
Aluminum Bubble Insulation for Packing and Wrapping Temprature Sensitive CargoUS$ 0.7 - 1.5MOQ: 5000 Square Meters -
Metalized Bubble Insulation for Packing and Wrapping CargoUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
Pallet Cover for Air Conditioner, Aluminum Bubble Foil for Packing Wrapping and TransportationUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
Bubble Aluminum Foil Wrap Heat Insulation MaterialUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
Metallized PET Laminated BubbleUS$ 0.7 - 1.5MOQ: 5000 Square Meters
Cat Tuong Heat Insulation is composed of bubbles air made from one layer of polyethylene sandwiched between one aluminum and one metalized foil. The aluminum foils are heat reflective and the bubbles air are heat and sound insulation.

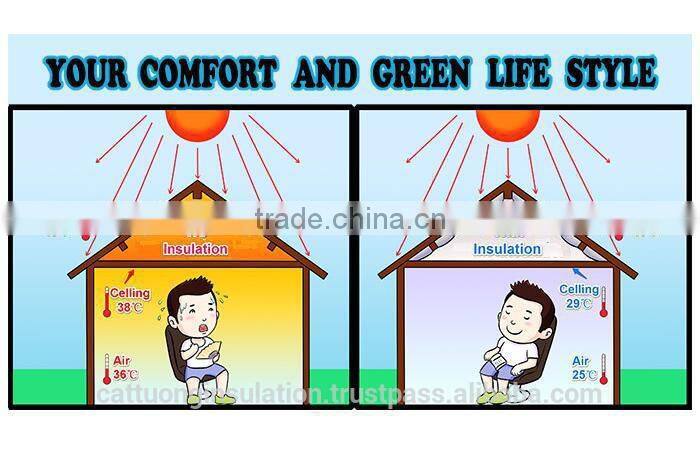

It keeps buildings warm in winter and cool in summer.
It is strong, light weight, clean and does not degrade over time.
It is easy and fast to install- usually save up to 50% labor time.
It prevents about 90% of heat radiation, decreases the temperature by 12-22C inside compared to the metal roof.
It can be installed under the roof, between the walls, under the ceiling and the floor.
It is environmental friendly, energy saving, fire retardant and has no odor or toxicity.
It replaces the glass wool or rock wool which after a few years degrade, became dusty and unhealthy.
It is largely used in industrial and civil construction, warehouse, livestock…in Vietnam, Thailand, China, Malaysia, Indonesia, Philippine, Australia, New Zeeland, United States…

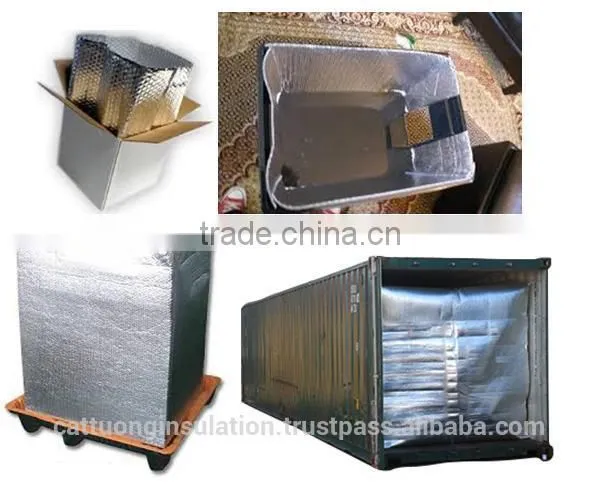

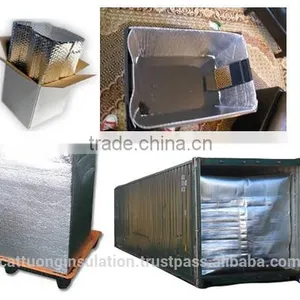

It can also be used in other application that needs heat insulation and shock protection such as bag used in transport with container…

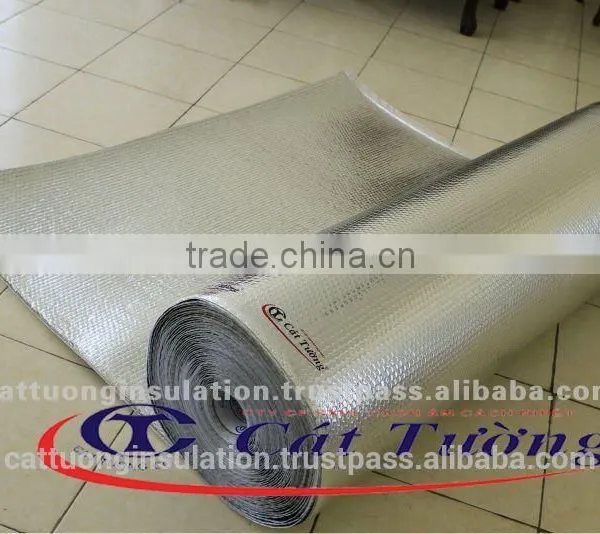

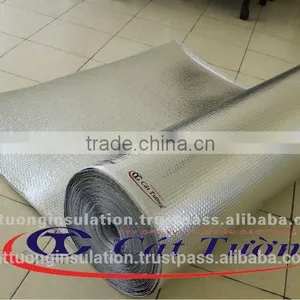

Thermal reflective insulation made of 2 external layers, one pure aluminum one metalized foil covering a single core layer of polyethylene 25mm diameter bubble air film. (Product is manufactured by USA standard).
tructure: Aluminum foil/ 25mm diameter bubble air bag/ metalized foil.
|
Property |
Units |
Dir |
Value |
|
Aluminum/Metalized foil thickness |
µm |
8 |
||
Bubble air diameter |
mm |
25 |
||
Reflectivity (ASTM - C1371) |
% |
99.95 – 99.96 |
||
Emissivity (ASTM - C1371) |
E |
0.04 |
||
Noise Reduction Coefficient (TCVN) |
% |
50.8% |
||
|
Tensile strength, average (ASTM-D882 ) |
N/mm2 |
Longitudinal |
0.9 |
|
Transversal |
1.2 |
|||
|
Elongation At Break, average (ASTM-D882) |
% |
Longitudinal |
13.58 |
|
Transversal |
11.74 |
|||
Classification of Surface Spread of Flame (BS-476 :part 7) |
|
Class One |
||
|
Water Vapor Transmission (ASTM E-96) |
g/ m2.day |
0.24 |
||
Fungal Resistance Test |
|
No fungal growth |
||
Corrosion Resistance (Internal Test) |
Conc.HCI |
High Resistance |
||
Yield |
g/m2 |
230 |
249 |
|

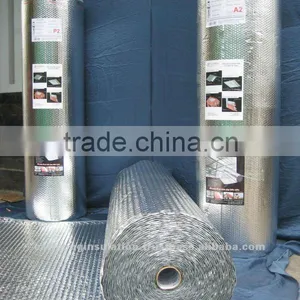

Standard Roll size |
m |
1.55m x 30m |
||
Nominal thickness |
mm |
6.0mm (±0.3) |
||
Standard Roll Weight |
Kg |
16kg(±0.5) |
||
