Specifications
Heat insulation made of 2 external pure metalized layers covering a single core layer of polyethylene bubble air film.
P2 Cat Tuong Sound- Heat Insulation Material is composed of a core layer of bubbles air made from polyethylene sandwiched between two layers of MPET foils. The metalized foils are heat reflective and the bubbles air are heat and sound insulation.
It keeps buildings warm in winter and cool in summer.
It is strong, light weight, clean and does not degrade over time.
It is easy and fast to install- usually save up to 50% labor time.
It prevents about 90% of heat radiation, decreases the temperature by 12-22C inside compared to the metal roof.
It can be installed under the roof, between the walls, under the ceiling and the floor.
It is environmental friendly, energy saving, fire retardant and has no odor or toxicity.
It replaces the glass wool or rock wool which after a few years degrade, became dusty and unhealthy.
It is largely used in industrial and civil construction, warehouse, livestock…in Vietnam, Thailand, China, Malaysia, Philippine, Indonesia, Australia, New Zeeland, United States…
It can also be used in other application that needs heat insulation and shock protection such as bag used in transport with container…

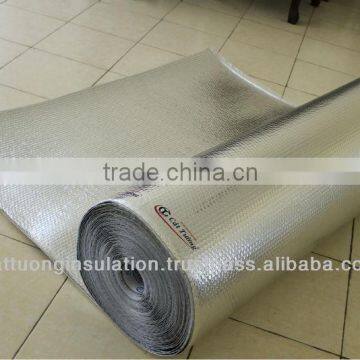

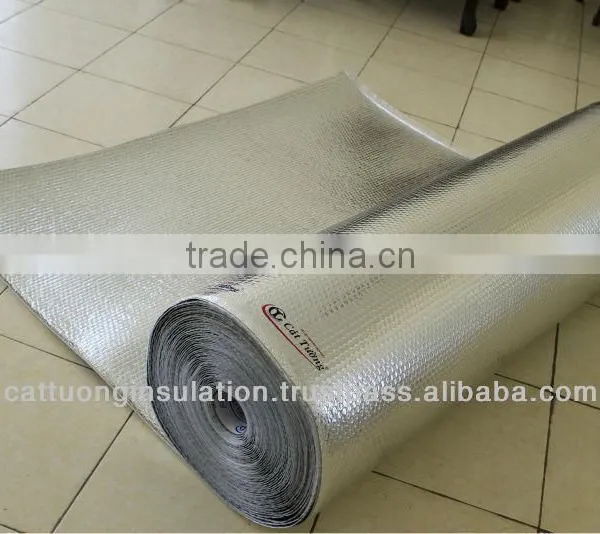

Thermal reflective insulation made of 2 external metalized foil layers covering a single core layer of polyethylene bubble air film. (Product is manufactured by USA standard).

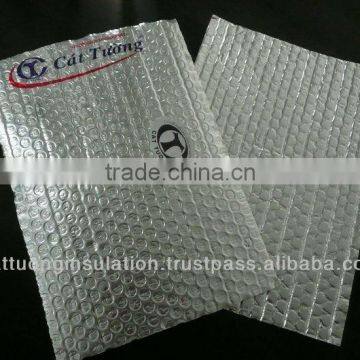

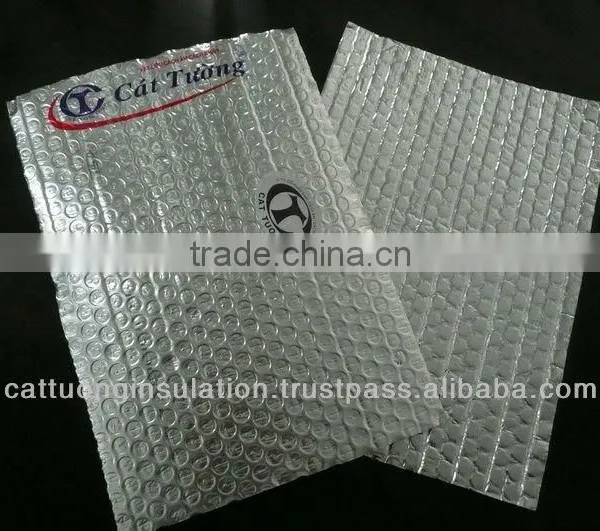

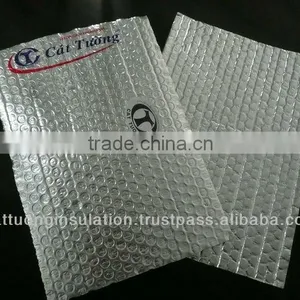

Structure: Metalized foil/ bubble air bag/ Metalized foil.
Property | Standard | Unit | Value |

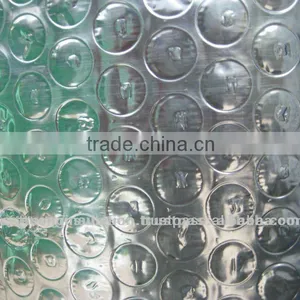

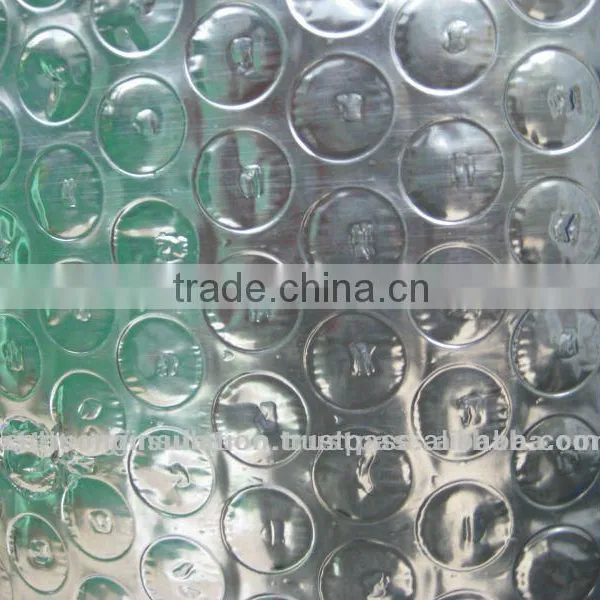

Sheet structure | MPET foil/ bubble air bag 10mm diameter/ MPET foil | ||
Roll Size |
| m x m | 1.55 x 40 |
Sheet thickness |
| mm | 4(± 0.3) |
Roll weight |
| kg | 15.5 (±0.3) |
Yield strength |
| g/m2 | 233.38 |
Reflectivity | ASTM C1371 | % | 99.96 |
Emissivity | ASTM C1371 | € | 0.034 |
Classification of Surface Spread of Flame (Aluminum surface) | BS-476 .Part 7 |
| Class 1 |
Elongation | ASTM D638 | % | 27.36 |
Tensile strength | ASTM D638 | N | 55.21 |
Tear strength | ASTM D1004 | kN/m | 10.63 |
Bursting strength | ISO 13938-2-99 |
| 246 |
Water absorption | ASTM E960 | g/ft2 hr | 0.014 |
Resistant to mold and bacteria |
|
| Yes |
Toxicity |
|
| No |
