Help CenterA2 Cat Tuong Sound Heat Insulation With Bubble Air and Double Sided Aluminum Reflective Foils From Vietnam
Related Products
-
A2 Cat Tuong Thermal Insulation With One Layer of Bubble Air and Double Sides Aluminum Reflective Foils From VietnamUS$ 0.7 - 1.5MOQ: 5000 Square Meters -
Two Side Aluminum for Roofing Ans Wall Insulation for Steel WarehouseUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
P1 Double Cat Tuong Thermal Insulation With One Sided Metalized Foil and Double Layers of Polyethylene Bubble Air From VietnamUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
A1 Double Cat Tuong Heat Insulation With Double Layer of Bubble Air and One Sided Aluminum Reflective Foil From VietnamUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
P2 Double Cat Tuong Thermal Insulation Double Sided MPET Foils and Double Layer fo Bubble Air Polyethylene From VietnamUS$ 0.7 - 1.5MOQ: 5000 Square Meters
Specifications
Heat insulation made of two external pure aluminum foil layers covering a single core layer of polyethylene bubble air film.
A2 Cat Tuong Heat Insulation is composed of one layer of bubbles air made from polyethylene sandwiched between two layers of pure aluminum foil. The aluminum foils are heat reflective and the bubbles air are heat and sound insulation.
It keeps buildings warm in winter and cool in summer.
It is strong, light weight, clean and does not degrade over time.
It is easy and fast to install- usually save up to 50% labor time.
It prevents about 90% of heat radiation, decreases the temperature by 12-22C inside compared to the metal roof.

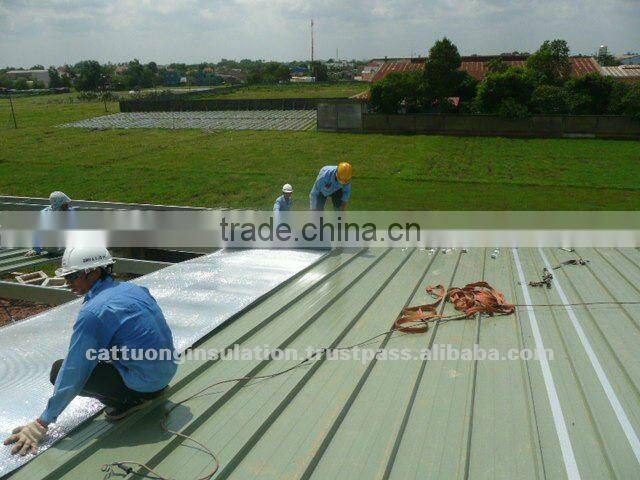

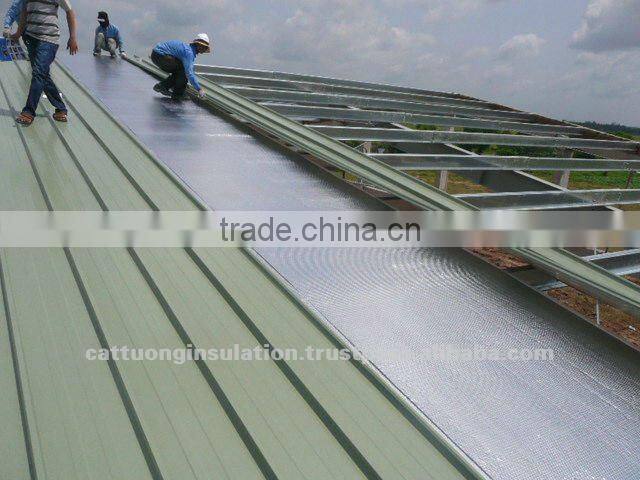

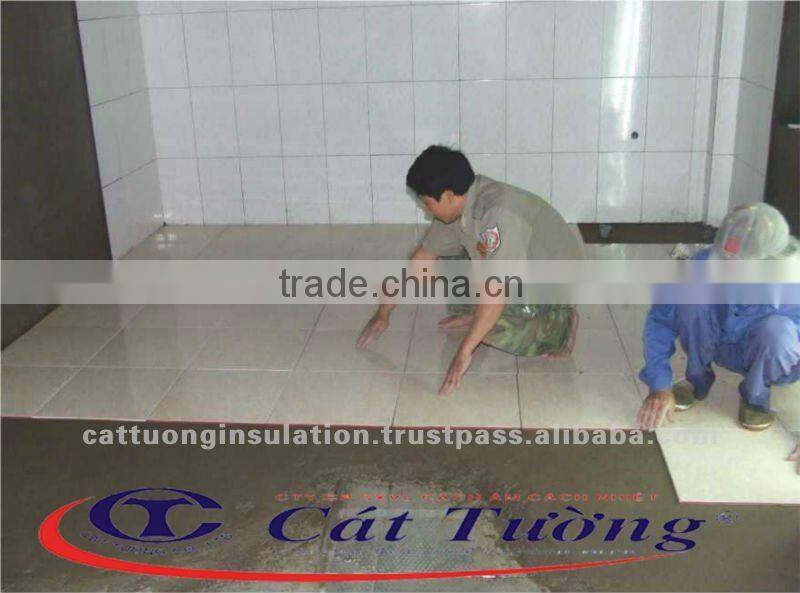

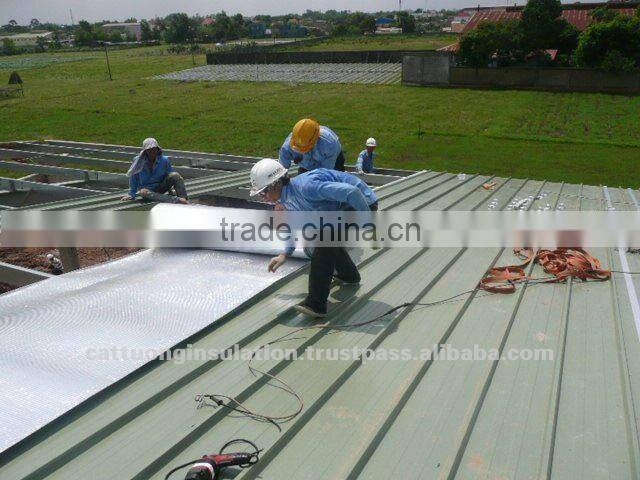

It can be installed under the roof, between the walls, under the ceiling and the floor.
It is environmental friendly, energy saving, fire retardant and has no odor or toxicity.
It replaces the glass wool or rock wool which after a few years degrade, became dusty and unhealthy.

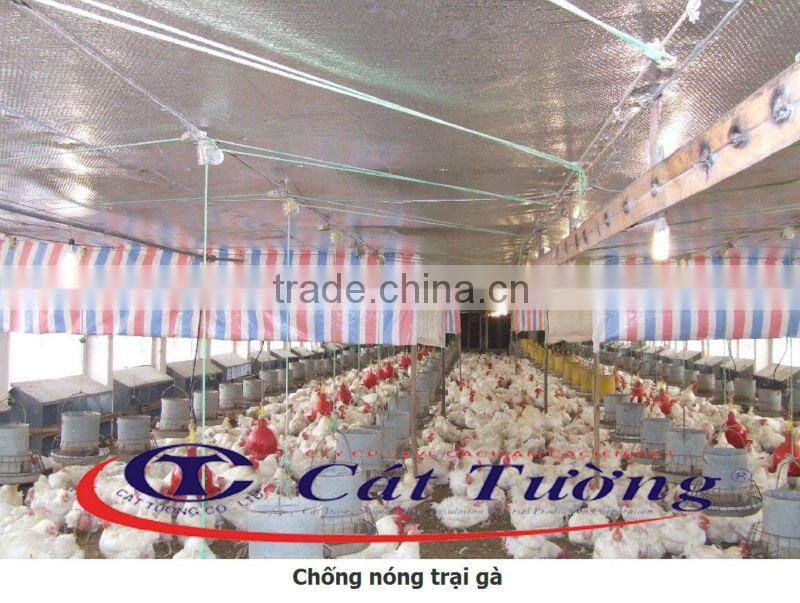

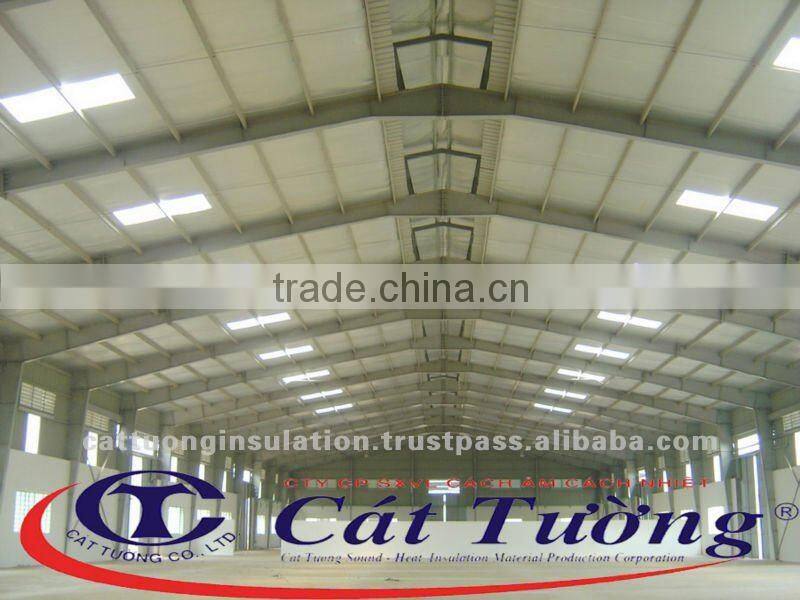

It is largely used in industrial and civil construction, warehouse, livestock…in Vietnam, Thailand, China, Malaysia, Philippine, Indonesia, Australia, New Zealand, United States…
It can also be used in other application that needs heat insulation and shock absortion such as bag used in transport with container…
Thermal reflective insulation made of two external pure aluminum foil layers covering a single core layer of polyethylene bubble air film. (Product is manufactured by USA standard).

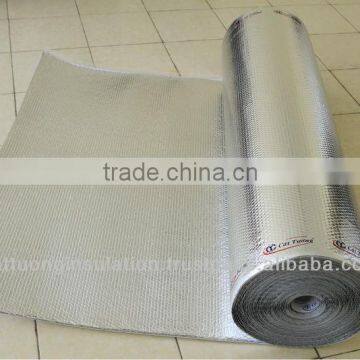

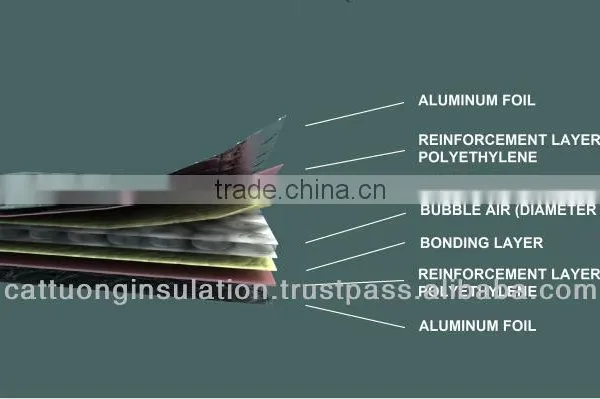

Structure: Aluminum foil/ bubble air bag/ Aluminum foil.
Property |
Standard |
Unit |
Value |
Sheet structure |
Aluminum foil/ bubble air bag 10mm diameter/ Aluminum foil |
||

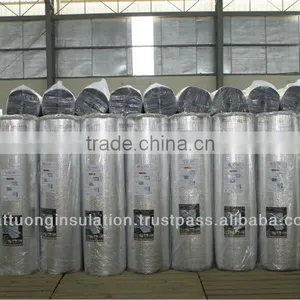

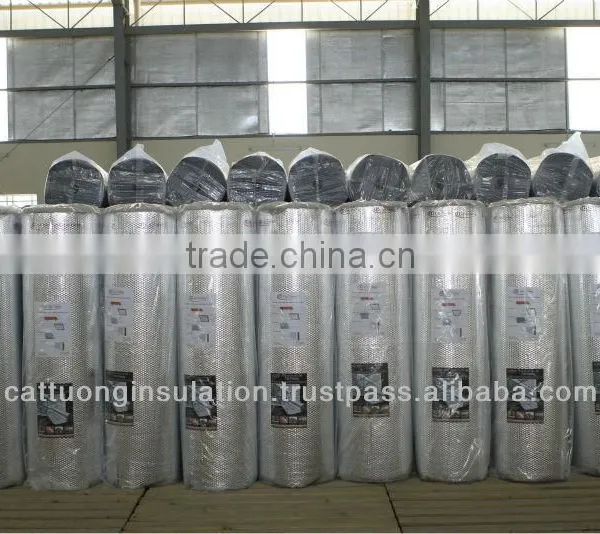

Roll Size |
|
m x m |
1.55 x 40 |
Sheet thickness |
|
mm |
4(± 0.3) |
Roll weight |
|
kg |
20 (±0.3) |
Yield strength |
|
g/m2 |
311.13 |
Reflectivity |
ASTM C1371 |
% |
99.96 |
Emissivity |
ASTM C1371 |
€ |
0.045 |
Classification of Surface Spread of Flame (Aluminum surface) |
BS-476 .Part 7 |
|
Class 1 |
Elongation |
ASTM D638 |
% |
13.05 |
Tensile strength |
ASTM D638 |
N |
33.61 |
Tear strength |
ASTM D1004 |
kN/m |
16.24 |
Bursting strength |
ISO 13938-2-99 |
|
120.8 |
Water absorption |
ASTM E960 |
g/ft2 hr |
0.19 |
Resistant to mold and bacteria |
|
|
Yes |
Toxicity |
|
|
No |
