Help CenterSound Heat Material Insulation for Construction and Transport Container With Bubble Air, Aluminum and MPET Foils
Related Products
-
Double Sided Aluminum Foil and Big Bubble Air SheetUS$ 0.7 - 1.5MOQ: 5000 Square Meters -
Bubble Air Cell / Bubble Air Sheet / Aluminum Bubble InsulationUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
Waterproof Insulation Material for BuildingUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
Industrial Packaging Bubble Plastic WrapUS$ 0.7 - 1.5MOQ: 5000 Square Meters
-
Aluminium Foil Heat Reflective Bubble InsulationUS$ 0.7 - 1.5MOQ: 5000 Square Meters
Specifications

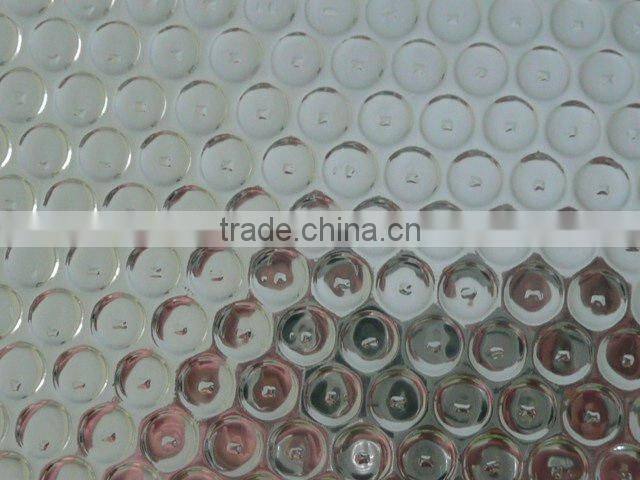

Heat insulation made of one aluminum foil and one metalized foil covering a single core layer of polyethylene bubble air film.
AP Cat Tuong Sound- Heat Insulation Material is composed of a core layer of bubbles air made from polyethylene sandwiched between one aluminum and one metalized foils. The aluminum foils are heat reflective and the bubbles air are heat and sound insulation.
It keeps buildings warm in winter and cool in summer.
It is strong, light weight, clean and does not degrade over time.
It is easy and fast to install- usually save up to 50% labor time.
It prevents about 90% of heat radiation, decreases the temperature by 12-22C inside compared to the metal roof.

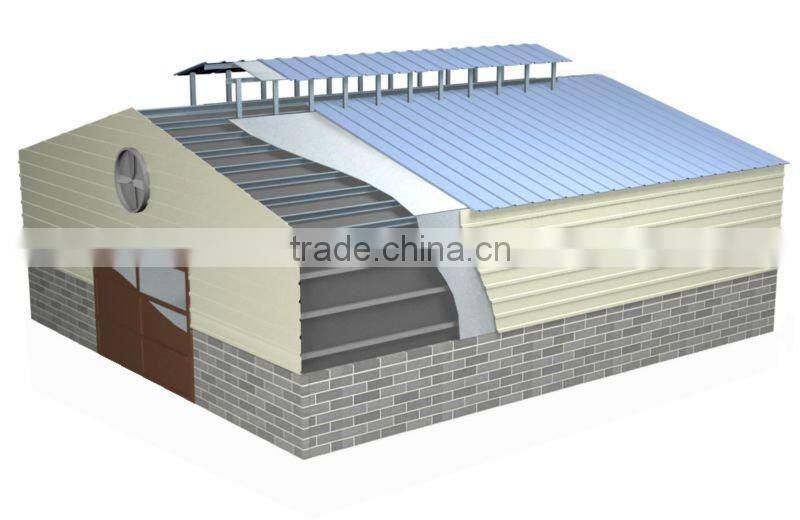

It can be installed under the roof, between the walls, under the ceiling and the floor.
It is environmental friendly, energy saving, fire retardant and has no odor or toxicity.
It replaces the glass wool or rock wool which after a few years degrade, became dusty and unhealthy.
It is largely used in industrial and civil construction, warehouse, livestock…in Vietnam, Thailand, China, Malaysia, Indonesia, Philipine, Australia, New Zeeland, United States…
It can also be used in other application that needs heat insulation and shock protection such as bag used in transport with container…
Thermal reflective insulation made of two external layers one is pure aluminum foil the other is metalized foil covering a single core layer of polyethylene bubble air film. (Product is manufactured by USA standard).
Structure: Aluminum foil/ bubble air bag/ Metalized foil.
|
Property |
Units |
Dir |
Value |
|
Aluminum/ Metalized foil thickness |
µm |
8 |
||
Bubble air diameter |
mm |
10 |
||
Reflectivity (ASTM - C1371) |
% |
99.95 – 99.96 |
||
Emissivity (ASTM - C1371) |
E |
0.04 |
||
Noise Reduction Coefficient (TCVN) |
% |
50.8% |
||
|
Tensile strength, average (ASTM-D882 ) |
N/mm2 |
Longitudinal |
0.9 |
|
Transversal |
1.2 |
|||
|
Elongation At Break, average (ASTM-D882) |
% |
Longitudinal |
13.58 |
|
Transversal |
11.74 |
|||
Classification of Surface Spread of Flame (BS-476 :part 7) |
|
Class One |
||
|
Water Vapor Transmission (ASTM E-96) |
g/ m2.day |
0.24 |
||
Fungal Resistance Test |
|
No fungal growth |
||
Corrosion Resistance (Internal Test) |
Conc.HCI |
High Resistance |
||
Yield |
g/m2 |
230 |
249 |
|
Standard Roll size |
m |
1.55m x 40m |
||
Nominal thickness |
mm |
4.0mm (±0.3) |
||
Standard Roll Weight |
Kg |
16kg(±0.5) |
||
