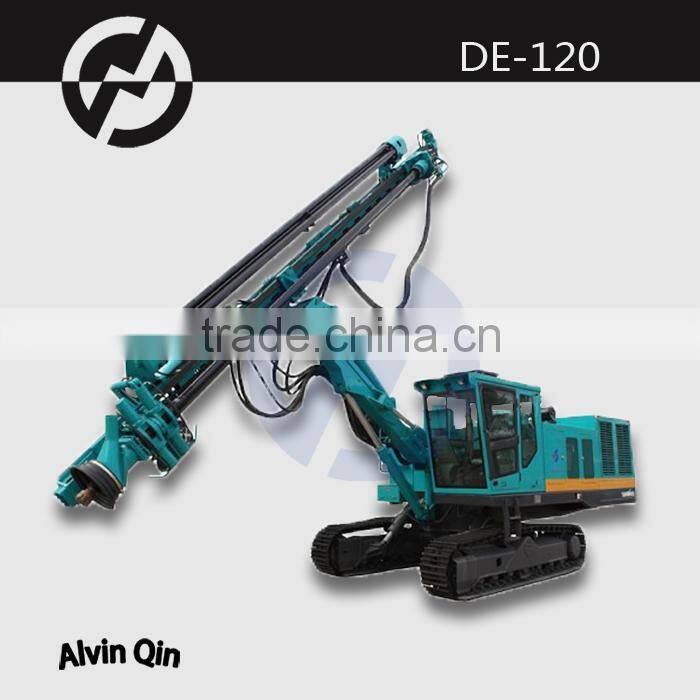

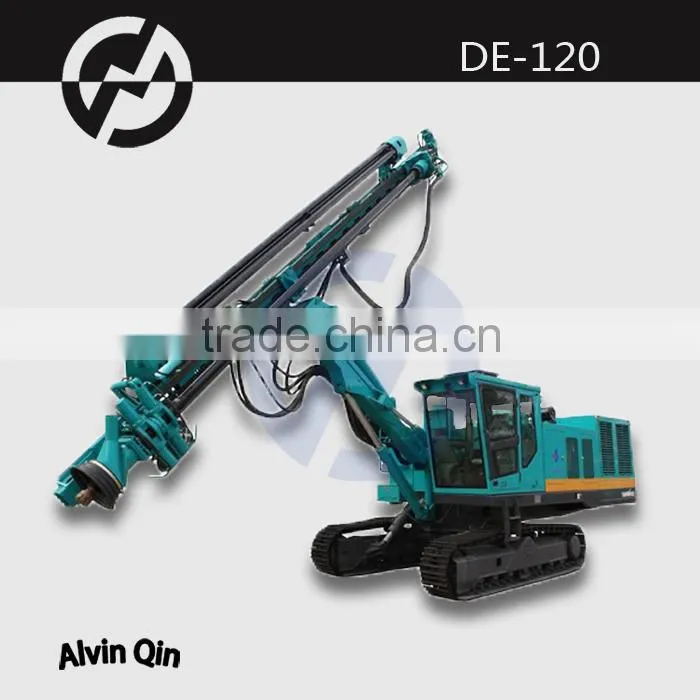

China Manufacturer Hot Sale DTH Drilling Rig DE120 Down the Hole Hammer Drilling Rig
US$ 100 - 100
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Gold
Model Number:
DE120
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Well Drilling Rig MDL-150 Full Hydraulic Rotary Anchoring Drilling RigUS$ 1 - 1MOQ: 1 Set -
Portable Hydraulic Water Drilling Rig HZ-200YY Diamond Core Drilling RigNegotiableMOQ: 1 Set
-
HZ-200YY Hot Series of Drilling Rigs Core Sample Water Well Drilling RigUS$ 5,300 - 5,300MOQ: 1 Set
-
KDY-30H Tunnel Condition Man Portable Underground Drilling RigUS$ 1 - 1MOQ: 1 Set
-
Hydraulic Anchors MGY-135L Rotary Crawler Drilling RigUS$ 30,000 - 30,000MOQ: 1 Set
Place of Origin
China
Brand Name
Gold
Model Number
DE120
After-sales Service Provided
Engineers available to service machinery overseas
Application&Features
The integral hydraulic down-the-hole drill is widely used for blast hole drilling in open-air projects, such as metallurgy, mins, construction materials, railway, hydropower constructions, national defense constructions and earthworks. As one of most advanced integral hydraulic down-the-hole drill in domestic market, it is equipped with an efficient high pressure down-the-hole drilling system to facilitate the blast hole drilling with high precision and efficiency. Internationalized sourcing, optimizing design of computer, power matching, development and application of load bearing system help to realize a full power matching of the power system from power to pump, and then to load bearing, which enables to reduce the energy consumption for the machine and ensure a best performance and a high reliability can be achieved
1. Excellent performance, high efficiency, energy saving, and environmental friendliness
1) --Its highly reliable running unit allows a fast running and rapid lifting can be obtained, which significantly improves the productivity;
2) --It is equipped with an automatic disassembly and assembly unit for the drill rod and a multiple-rod drill rod storage to fully save human resources;
3) --The automatic anti-rod blocking unit is to realize automatic lifting of the rod in case of getting stuck, effectively protects the drilling system;
4) --The hydraulic and pneumatic systems are driven by a separate power system, respectively, having significant energy saving effect;
5) --It adopts vortex and laminar dust removal system to fully reduce dust pollution and reach good effect of environmental protection;
6) --The operating and monitoring system are highly integrated and have low operating cost.
2. Floating travelling chassis
--Adopts floating travelling chassis, and is suitable for rough construction sites.
3. Multiple-function hydraulic drill boom
1) It has multiple functions, and is suitable for construction drilling with casing, pilot pre-splitting and anchor rod reinforcement;
2) The angle of drill frame is adjustable, and can meet requirements for drilling at multiple directions;
3) The drilling boom has wide working range, multi-hole can be achieved after one trip positioning, helps to improve the working efficiency;
4) Compared with traditional drill, the impact of extended drill boom, vibration caused by percussion hammer and slagging dust on overall stability and operating environment is greatly reduced to extend the service life of the machine and improve its drilling precision.
4. Comfortable and safe operating
1) High-end and practical driving cab with beautiful appearance, safe and comfortable operating space;
2) Equipped with an air-conditioner, adjustable elastic damping seat and anti-smashing & anti-rollover protection measures;
3) Real-time monitoring working performance and operating parameters.
5. Compact structure and reasonable arrangement
1) The drilling, air supply and power systems are integrated to form a compact structure and allow the machine to work flexibly;
1) The drilling, air supply and power systems are integrated to form a compact structure and allow the machine to work flexibly;
2) It adopts modular design to facilitate convenient maintenance.
6. Reliable quality
1) Strong and fuel-efficient power system;
2) Internationally preferred sourced key hydraulic parts;
3) World-class percussion hammer and drilling system;
4) Special chassis made of high- strength steel
Features:
1) various functions, suitable for drilling with pipe, pilot presplitting, anchor bolt reinforcement construction;
2) drilling frame angle is adjustable, which can meet the requirements of multiple directional borehole;
3) drill arm operating range is wid, one time walking positioning multihole operation, significantly improving work efficiency;
4) influences of drill arm extending, impact vibration and deslagging dust on the stability and the operating environment decreased significantly comparing with the traditional drill, improve the life of the machine and drilling accuracy.
5) DTH Drill: borehole diameter is 89-130mm, depth is 24 meters, the delivery date is 45 days -60 days, meeting customer requirements.
Specification
| Total weight | 15.5t |
| Working state:L x W x H | 7.76×3.12×8.44 (m) |
| Transportation state:L x W x H | 10.3×3.12×3.5 (m) |
| OPERATION PARAMETER | |
| Drill rod length | 4m×6 |
| Drill rod diameter | 83mm |
| Hole diameter | 90~138 (mm) |
| Hole depth, max | 24m |
| Drill hammer | DHD340 |
| Dust collection device | Dry type (standard) / Wet (optional) |
| AIR COMPRESSOR | |
| Model | 550RH |
| Working pressure | 0.65~1.7 (MPa) |
| Free air delivery | 15.5m3/min |
| Power | 179kW /1800rpm |
| ENGINE | |
| Model | 4BT3.9 |
| Power / Speed | 75kW / 2200rpm |
| Fuel tank capacity | 470L |
| FEED | |
| Length of drillrig | 6920mm |
| Feed length | 4380mm |
| Feed extension | 1200mm |
| Feed rate, max | 0.8m/s |
| Feed force, max | 32kN |
| Pitch angle | 140° |
| Overturn angle | -20°~90° |
| BOOM | |
| Boom length, total | 2800mm |
| Lifing angle | 50°~-30° |
| Swing angle:Left / Right | 15° / 45° |
| TRAVELLING | |
| Travel speed | 3.2km/h |
| Traction force, max | 100kN |
| Track oscillation | ±10° |
| Hill climbing ability | 25° |
| Ground clearance | 480mm |
| ROTARY HEAD | |
| Model | DLT18B |
| Rotary speed, max | 70rpm |
| Rotary torque, max | 3000N.m |
Main Types
1.Core Drilling Rig 2.Water Well Drilling Rig 3.Anchoring Drilling Rig
4.Down-the-hole Drilling Rig 5.Underground Drilling Rig 6.Horizontal Directional Drilling Rig
Packaging & Shipping

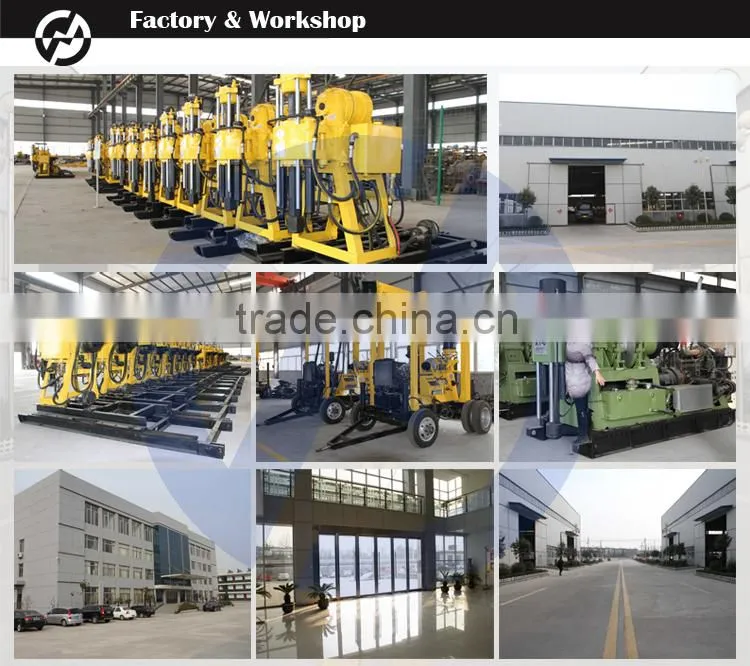

Our Company View

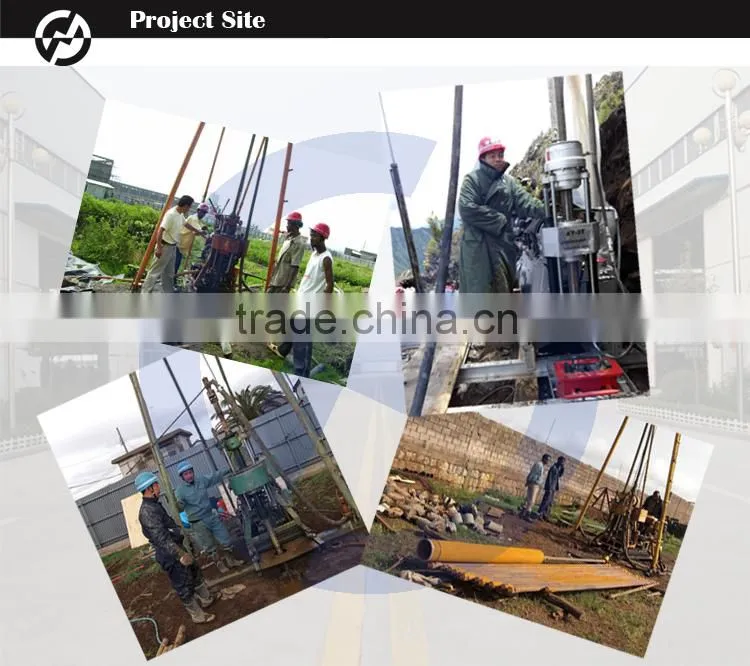

Project Site
Our Team
