Aluminum foil plate making machine
Product introduction
Aluminum foil container production line
The aluminum foil container production line is including: Feeding machine, high accuracy press, scrap collecting system,belt conveyor and mould. (Mould for optional).
Features
- This machine adopts Siemens CPU216 programmable logic controller (PLC) as the controlling system, it is reliable. The feeding length, producing speed and other parameter are easily set. It is intergration of Gas & Electrical, centralized control, automated production.
- Feeding, punching, scrap collecting is running automatically.
- The accurate press adopts stell plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off, rigid over load protector to protect the press. In short, this is a high accuracy and reliability press.
- Feeding is controlled by stepper system, the feeding length is accurate and can be adjusted from 20mm to 999mm.
---

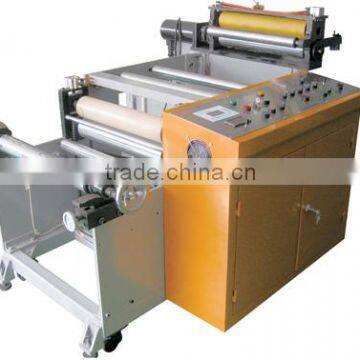

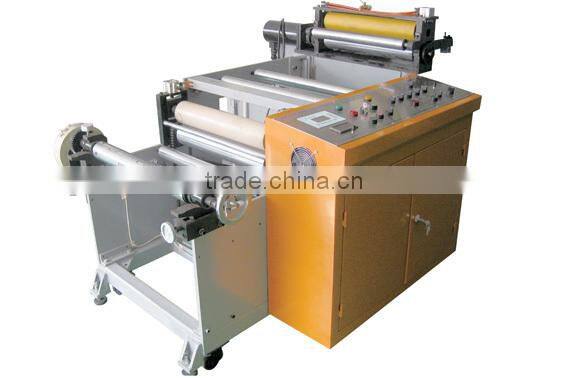

Feeding Machine ALSL-55
Features
Our feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment. A machine can realize automatic oiling, automatic feeding, automatic tracking features, which automactically feeding 20-999mm in length, the length of an arbitrary set, it provide accurate positioning and widely adjusting range.
The device has the characteristics of feeding accuracy, coating the oil evenly, material waste is little, high efficiency, clean appearance, small size and easy installation, simple operation and low noise. It is the ideal automatic feeding device for film, aluminum foil, paper and other metal coils, and also is a reliable guarantee for the success of your project.
Item |
GS-55 |
Max. Width of Roll (mm) |
500 |
Max.Unwind Roll Diameter (mm) |
Φ600 |
Feeding Speed(m/min) |
0-35 |
Feeding Length (mm) |
20-999 |
Feeding Accuracy (mm) |
±0.3 |
Working Voltage(v) |
380/220 |
Total Power(kw) |
1 |
Weight of Machine(kg) |
850 |
Dimension (mm) |
2000*1300*900 |

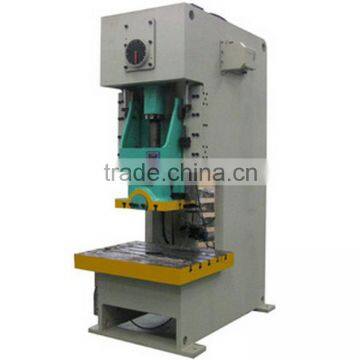

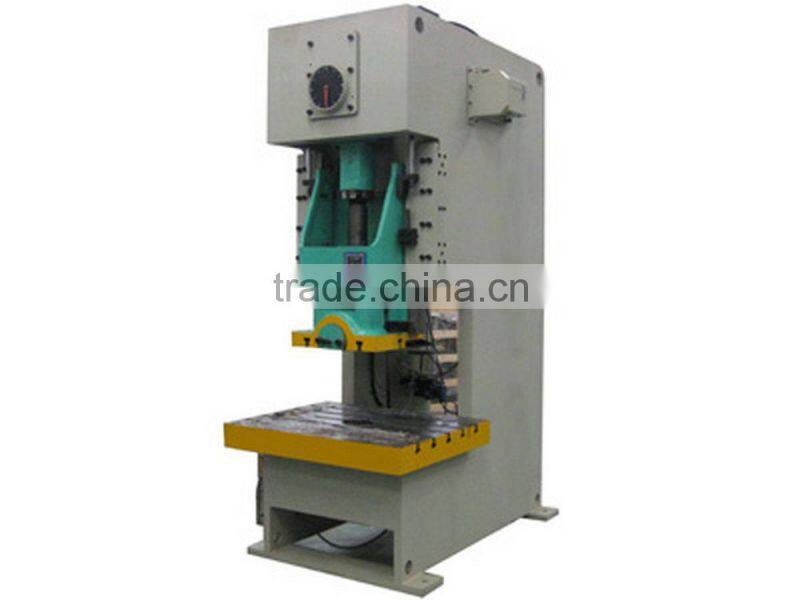

Punch machine- JF45T
The main allocation of pressing machine:
Speed-adjusted Motor:Anhui Wannan.
AC Contactor:Schneider.
Double Electromagnetism Valves of Motor:apan Taco.
Speed-adjusted Motor of Feeder:Japan Taco.
Voltage-transformer:Schneider.
Feeder Motor:SIEMENS.
Stepping System:SIEMENS.
Magnetic Particle Clutch & Tension Controller:Taiwan Leesun.
Pneumatic Component:Japan or Taiwan Brand.
Controlled Button & Switch:Schneider.
Cam Controller:12 sets of Germany Schneider Approximated Switch.
Machine parameters
| Nominal pressure : 400KN |
| Slide Block Stroke:100-260mm |
| Slide Stroke per minutes :70-50 times |
| Maximum Die Set Height :270-420mm |
| Die Set Height Adjustment:60mm |
| Slide Bottom Size:410*340mm |
| Stemhole Size:60mm*65mm |
| Bolster Surface Size:810*440mm/990*750mm |
| Total power:6KW |
| Weight:3800-4500kg |
| Overall Dimension Before Changed :1440*1080*2300mm |
| Overall Dimension after Changed :1550*1150*2500mm |

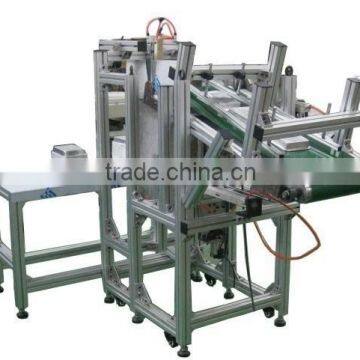

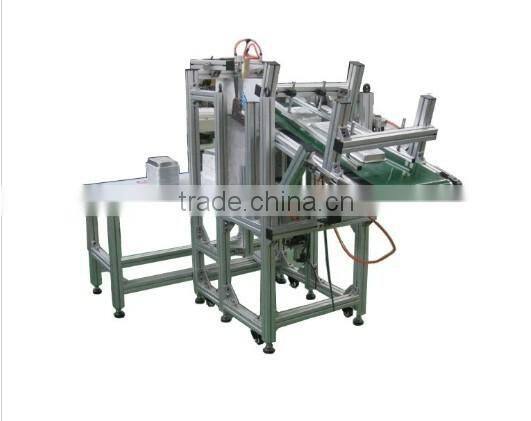

One line stacker

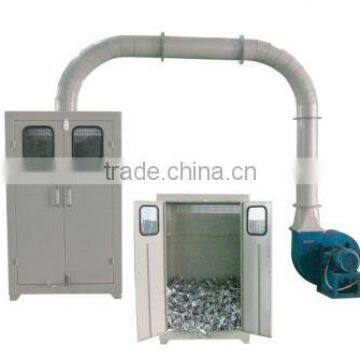

Scrap collecting device
Features
This device is using for collecting the scrap in the production time, avoid that products are not able to be blown out in case some scrap are left in the mould. It can significantly reduce the labor intensity, improve working efficiency, and make sure the cleaning of workshop and efficient production.

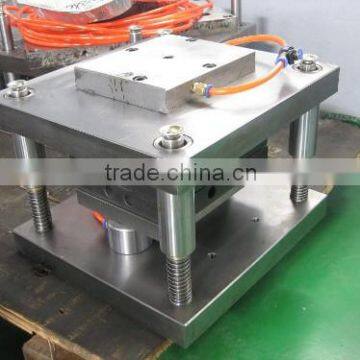

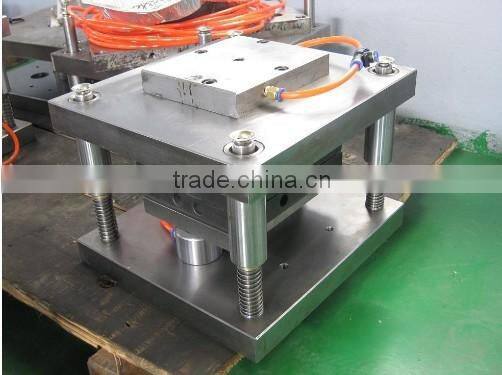

Mould
