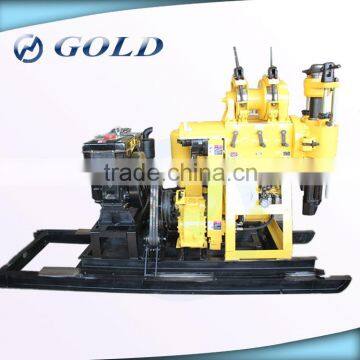

Competitive Low Price Water Well Hydraulic Drilling Rig

Name: Competitive Low Price Water Well Hydraulic Drilling Rig
Brand: Gold
Availability: InStock

FOB Price

USD $1 - $2 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Hydraulic Drilling Rig
Power Type	Diesel	Place of Origin	Chongqing, China
Brand Name	Gold	Model Number	HZ-200YY
Usage	Water Well	Voltage	380V
Power(W)	14.7kw	Dimension(LWH)	27009001500mm
Weight	975kg without power	Certification	ISO9001, CE, SGI
Warranty	One Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Why choose us

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd, a professional manufacturer with 15 years experience, specializing in geological equipments and related engineering drilling rigs.

We won our excellent reputation from our customers with our competitive offer and trustworthy quality. Our main target markets focus on Africa, Central and Southeast Asia, South America, especially for their water well drilling construction and geological investigation. We have an professional team for overseas technical after sales service since 2003, having achieved satisfying praise from our customers.

Looking forward to our cooperation, and we will do our best to satisfy you in 2016!

Product description

HZ-200YY Spindle Drilling Machine is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc.

Drilling depth	200m
Max open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90°~75°
Drill weight (without power)	975kg
Triangle conveyer belt	B950 x 4 B1700 x 3
The main machine moving distance	300mm
Power	Diesel engine 22HP Electric motor 15kw
Spindle
Spindle speed	64, 128, 287, 557r/min
Spindle stroke	450mm
Hoist
Max.lifting capacity	2400kg
Single line lifting speed	0.41, 0.82, 1.64m/s
Wirerope caliber	13mm
Wirerope length	35m
Reel diameter	140mm
Hug floodgate caliber	260mm
Hug folldgate belt width	70mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement	Diesel engine 170L/min Electric motor 150L/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Inlet pipe caliber	40mm
Outlet pipe caliber	30mm
Triangle conveyer belt	B1728mm
Hydralic oil pump
Type	CBT-F-314
Triangle conveyer belt	B1100 X 1

Hot sale models

XY-8 Max 3000m Core sampling drilling rig, multipurpose use

Multi-functional geological investigation drilling machine, with BQ, NQ, HQ wireline coring methods.

HZ-200YY common 200m drilling rig for water well sites

Widely used in most well drilling on general soil formation. Trailer/Crawler can be mounted for easier operation.

Aluminium alloy, high strength, easy carry XY-3T drilling rig

All aluminium material equipped drilling machine, light carry and easy move with less than 3 drillers.

MDL-150 full hydraulic, multipurpose anchoring rig

Multi-functional, 130-170m depth all hydraulic drilling operations.

JDL-300 Crawler type mud/air down the hole drilling rig

Mechanical & Hydraulic transmission for mountainous and rocky formation, max to 300m depth.

XYC-3 Max 600m fast move truck mounted drilling rig

High efficient movement for water well drilling and other operations.
