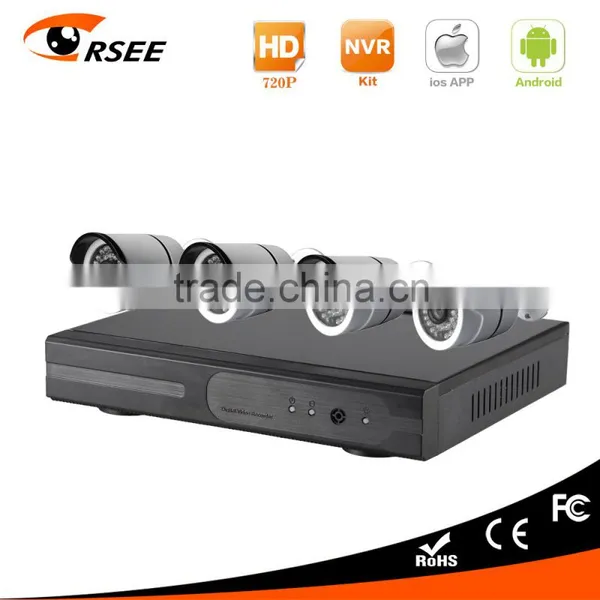

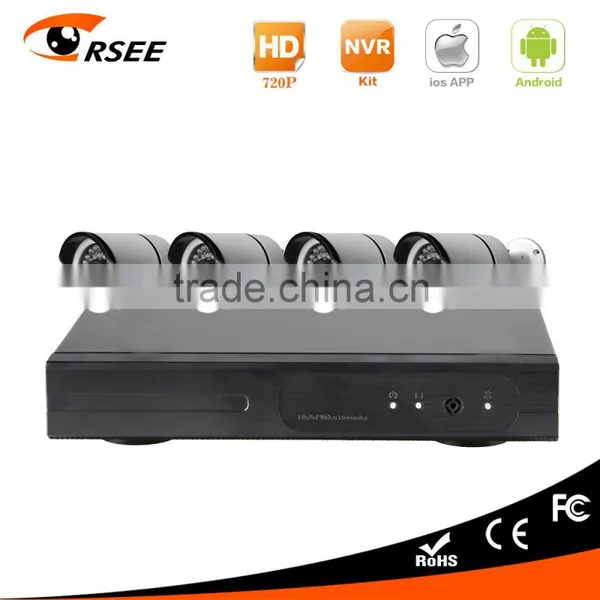

Hot selling surveillance system nvr kit
Main Features:
1. Support P2P Cloud Function for Remote View by PC and Smart Phone
2. NVR Built-in POE Switch, Camera No Need Power Supply.
3. Support Motion Detection Alarm and Email Alarm
5. 4*18Meters Net Cable apply to All Kinds of Scene.
6. Plug and Play, Auto Connection Camera, No Need Any Setting
Detailed Parameter List:
|
IP Video Input |
IP Video Input |
4x720P |
Switch |
Embedded,Centralized Power Supply |
|
HDMI Output |
1 CH HDMI Resolution:1920x1080P/60Hz |
|
VGA Output |
1 CH VGA Resolution:1920x1080P/60Hz |
|
Video |
Video Compression |
H.264 |
Recording /Playback |
4*720P Playback |
|
Video Resolution |
720P,960P,1080P Recording |
|
Frame Rate |
PAL: 25 fps;NTSC :30 fps |
|
Video Bitrate |
256 Kbps -- 4.0 Mbps |
|
Stream Type |
Audio/Video, Variable Rate(VBR) , Constant Bit Rate(CBR) |
|
Dul-Stream |
Support |
|
Audio Compression |
G.711 |
|
Hard Disk |
Storage Type |
1 * SATA Interface |
Storage Capacity |
Max 4TB |
|
Backup |
USB Backup & Internet Backup , Support FTP 4 upload |
|

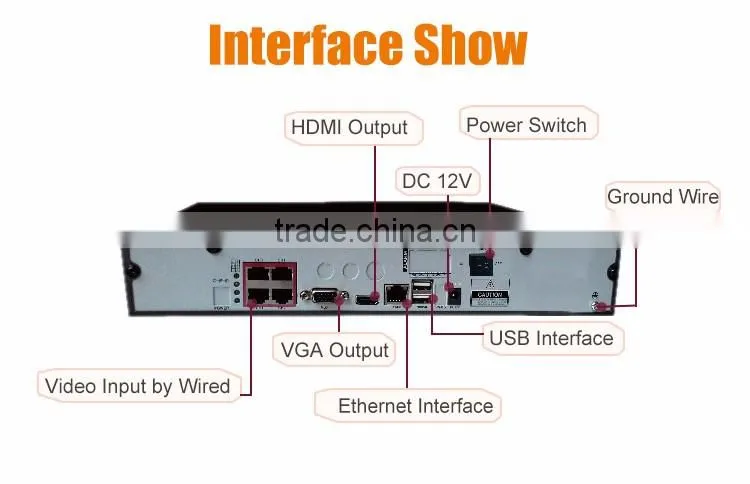

Interface |
Network Interface |
5*RJ45 100M Internet Interface |
USB Interface |
2 * USB2.0 Interface(Support Upgrade, Backup, Mouse) |
|
PTZ |
1 * RS485 Interface |
|
Others |
Network cable |
4*18 meters |
Temperature |
-10°~55° |
|
Operation System |
Embedded Linux Operation System |
|
Soft Power-Off |
Not Support |
|
Device Control |
Remote Control & Mouse |
|
Power Input |
DC15 V / 5A |
|
IPC Specification | ||
Technical Parameters |
IPC quantity |
4pcs |
Sensor |
1/4 Progressive Scan Sensor |
|
Signal System |
PAL/NTSC |
|
Resolution |
720P 16 : 9 High Definition |
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
Shutter |
1/25s to 1/25,000s |
|
Lens |
4mm |
|
OSD |
Date Time & Title |
|
White Balance |
Auto |
|
Day & Night |
Auto / Color / BW |
|
3D-DNR |
Auto |
|
Mirror/Flip |
On / Off |
|
Frame Specification |
Three Streaming at the Same Time: |
|
S/N |
> 39.1 Db |
|
Interface |
RJ45 |
|
General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
Working Temperature/Humidity |
-10 °C to +50°C / 30% to 80% RH |
|
Working Temperature/Humidity |
-20°Cto +60°C / 20% to 90% RH |
|
Power Input |
DC12V-1A |
|
Power consumption |
≤6W |
|
Size |
95 (L)×55(W)×45 (H)mm |
|
Protection Level |
IP66 |
|
Shipping Methods
We generally ship goods via express couriers like DHL, FedEx, TNT, EMS,SF.By air or by sea for large amount.You can also arrange shipping agent to pick up goods.
Q: What’s your company’s advantage?
A: We are a R&D, Production and Marketing 3 in 1 enterprise. We provide high quality products with competitive price based on scientific management.
Q: Can you offer OEM&ODM service?
A: Yes, we can. We have about 150 senior engineers and will satisfy all your specific requirements.
Q: How about your company's production capacity?
A: We produce 5000pcs of DVR/NVR and 2000pcs of Cameras per day on average.
Q: How long is your delivery time?
A: Within 3 days for sample order, 5-12 days for mass order in general.
Q: How long is your product’s warranty?
A: The warranty is 24 months. We also have a professional engineer team for after-sale technical support.
Thanks for your attention to our company and products. We are confident that you will be satisfied with our products and service. Welcome to visit our factory in Guangzhou. Hope to cooperate with you for Win-Win.
