Shandong Zhongbao Metal Manufacturing Co., Ltd. of Secondary Eg/ga/gi/ppgi/gl/hr/cr Steel sheets
What is Specifications of our Secondary Eg/ga/gi/ppgi/gl/hr/cr Steel sheets and other steel coil products?
Brief Introduction:
1. Prepainted Steel Coil is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.
2. The base metals for Prepainted Steel Coil consist of cold rolled, HDG electro-galvanized and hot-dip alu-zinc coated steel. The finish coats of Prepainted Steel Coil can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.
3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.
Specification of Secondary Eg/ga/gi/ppgi/gl/hr/cr Steel sheets :
1. Thickness: 0.25-1.2mm
2. Width: 914*1250mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 4-10MT
5. Zinc coating: 50-275g/m2 AZ Coating : 50-150g/m2
6. Surface Texture: Normal Coated
7. Type of coating structure: 2/1 Coat the top surface of the steel sheet twice,
coat the bottom surface once, and bake the sheet twice.
8. Front side paint thickness: 15-25μm (bottome paint + top paint)
9. Back side paint thickness: 5-7μm
Item |
Secondary Eg/ga/gi/ppgi/gl/hr/cr Steel sheets |
Standard |
JIS,EN,ASTM |
Grade |
SGCC(DX51D+Z) |
Thickness |
0.25-1.2mm |
Width |
914*1250mm |
Length |
As coils or sheets as your requirement |
Color |
According to your color sample or RAL color code |
Zinc coating |
AZ50-150g/m2 Z50-275g/m2 |
Painting thickness |
5+25 microns on top side/5-7 microns on back side |
Coil ID |
508mm |
Coil weight |
Generally 4-18MT,according to your requirment |
Production ability |
650000 MTs/year |
Mechanical Properties:
1. Mechanical properties of base metals
Grade |
Tensile Test |
||
|
Yield Strength MPa |
Tensile Strength MPa |
Elongation A80mm % ≥ |
|
DC51D+AZ |
280-325 |
320-500 |
22 |
DC52D+AZ |
240-300 |
270-420 |
26 |
DC53D+AZ |
140-260 |
270-380 |
30 |
2. Common performance of front coating
(1). Thickness: ≥20μm
(2). Pencil Hardness: 2H
(3). 60° specular glossiness of coating: >60
(4). 180°bend: ≤3T
(5). Impact: ≥9J
(6). Salt Fog Resistant: ≥500h
(7). Color difference: <0.8ΔE
More informations, pls feel free to contact me!
The application of our Secondary Eg/ga/gi/ppgi/gl/hr/cr Steel sheets and other steel coil products.
| Construction | Outside | Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
| Inside | Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter | |
| Electrical appliance | Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker | |
| Furniture | Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf | |
| Carrying trade | Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board | |
| Others | Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment |
|
Payment:T/T OR L/C
We will offer competitive price to take more market shares. Our commitment is top quality, competitive price and speedy delivery.
What is Packing Information of our Secondary Eg/ga/gi/ppgi/gl/hr/cr Steel sheets and other steel coil products?

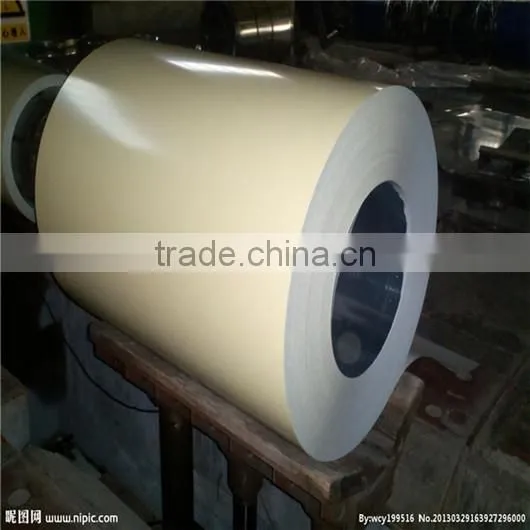

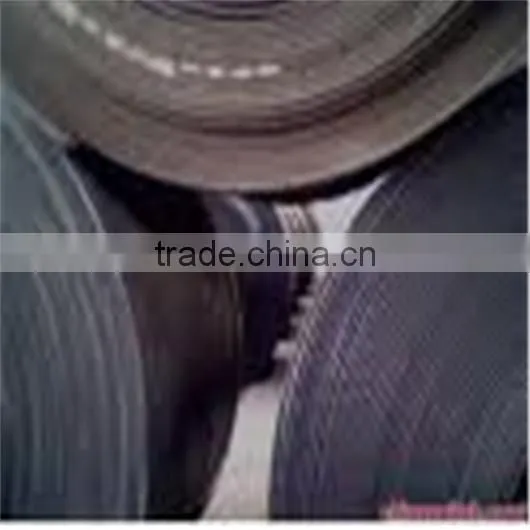

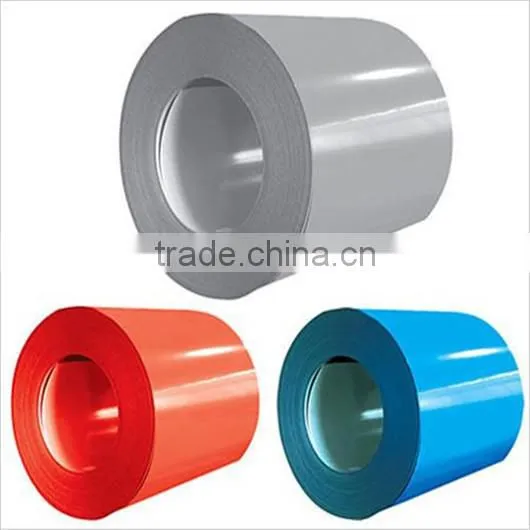

Our Steel Coils Products and Production Equipment Photos.
Our Certifications of steel coil products.
Our Factory View.
China Steel United Group well-known in domestic and abroad.Our production capacity is 5000 tons/month The steel coils are sold all over the world,including most parts of Asia,Europe,South Africa,North and south America.We have ability to produce:
1. hot dip galvanised steel coil/sheet/strip (Zinc steel or GI)
2. hot dip Galvalume steel coil/plate/strip (Alu-zinc steel or GL)
3. Prepainted galvanising steel coil/sheet/strip(colour coated galvanising steel or PPGI)
4. pre paint galvalume steel coil/plate/strip(colour coated galvalume steel or PPGL)
What is Our Advantages?
1.Rapid response on any inquiry.
2.Competitive price with best service .
3.Professional inspection department to guarantee quality.
4.ISO System API 5L certifa
5.SGS and BV Audited company .
6. Industry experience over 15 years.
7.Management Systems-Internal Software
8.Finished Product Inventory-More Than 5000 Tons.
9.Raw Material inventory -Over 6000 Mertic Tons.
10.Shipment of goods -More than 70 countries worldwide.
11.The most convenient transport and prompt delivery.
