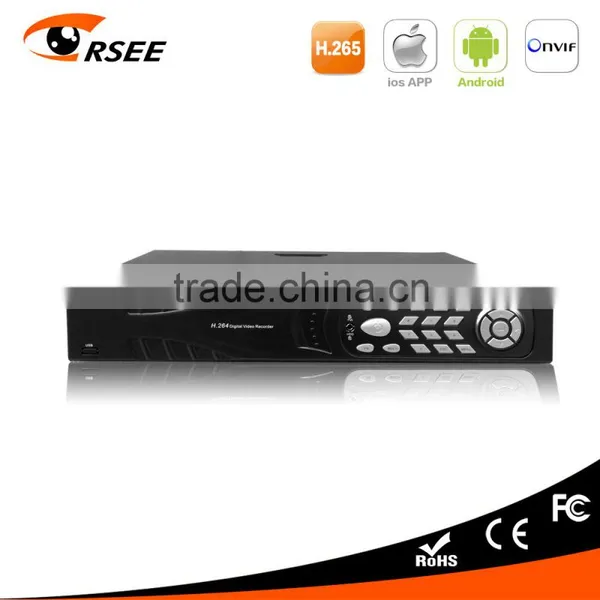

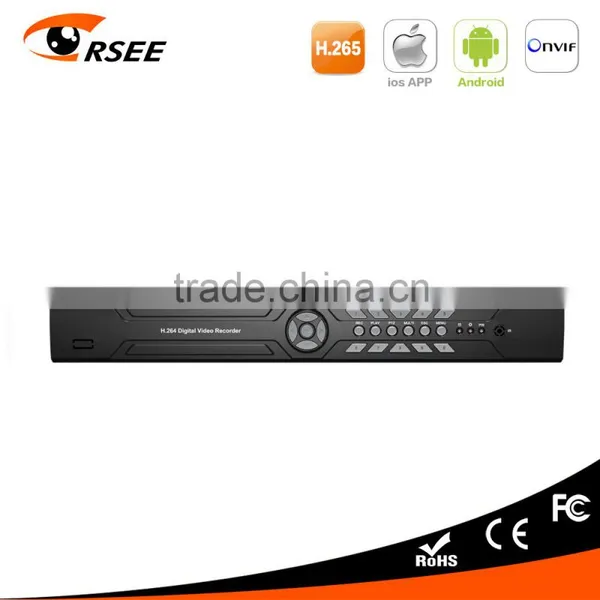

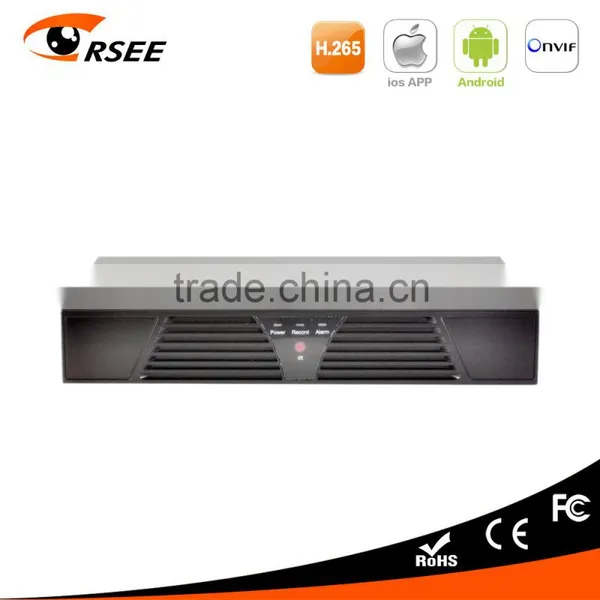

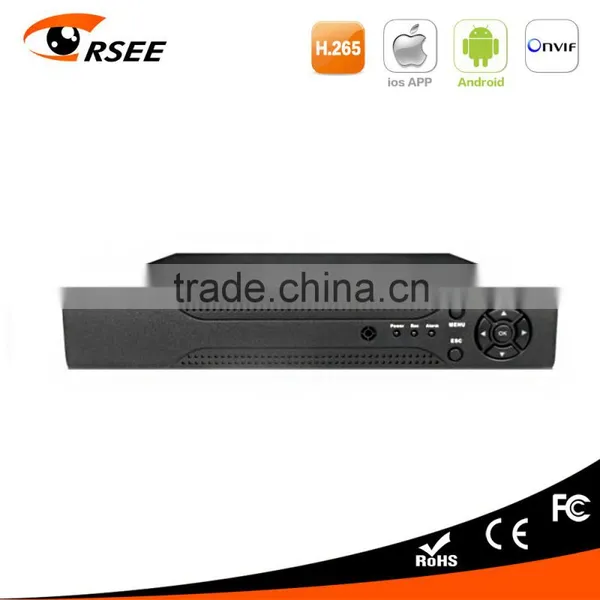

New product h.265 nvr record 8MP/5MP/4MP/3MP 4ch support 4K HDMI video out cctv nvr
Main Features:
1. Support 8MP Resolution IP Camera and 4K HDMI Video Out
2. Support P2P Cloud Function for Remote View by PC and Smart Phone
3. Support Onvif Protocol for Connection IP Camera by Hikvision, Dahua TOPSEE ect
4. Support Motion Detection Alarm and Email Alarm
5. One Key Add Onvif IP Camera for View
6. Plug and Play, Auto Check Network Connection
Detailed Parameter List:
Model |
CS-T8040 |
CS-T8080 |
CS-T8160 CS-T8164 |
|||
System |
Main Chipset |
Hi3798M |
Hi3536 |
Hi3536 |
||
Operating System |
Embedded LINUX Operating System |
|||||
Video Specification |
Video Input |
4CH |
8CH |
16CH |
||
Preview Resolution |
8M(4K) /5.0M/4.0M/3.0M/1080P/960P/720P |
|||||
Video Compression |
H.265 |
|||||
Encoding Resolution |
4K/5.0M/4.0M/3.0M/1080P/960P/720P |
|||||
Frame Rate |
4K/5.0M/4.0M/3.0M/1080P/960P/720P@max30fps |
|||||
Stream rate |
2Mbps~10.0Mbps |
|||||
Video Playback |
4ch*1080P/720p 1ch*4k/5M/4M/3M |
8ch*1080P/720p 4ch*4k/5M/4M/3M |
8ch*1080P/720p 4ch*4k/5M/4M/3M |
|||
Stream Type |
Video Streaming/Compound Flow |
|||||
Dual Stream |
support |
|||||
Audio Compression |
G.711A |
|||||
Audio specification |
Audio Sample Rate |
8KHz/16Bit |
||||
Audio Bite Rate |
64Kbps |
|||||
Video Interface |
Video Input |
RJ45 |
||||
Video Output |
1 ch VGA ,1 ch HDMI MAX 4K(3840*2160)/60HZ |
|||||
Recording Mode |
Alarm Recording, Timing Recording, Motion Detection Recording, |
|||||
Video Management |
Backup |
U disk, Hard Drive, Mobile phone, network |
||||
Audio Interface |
Alarm Input |
4ch (optional) |
||||
Alarm Output |
1ch (optional) |
|||||
HDD |
Interface Type |
1 SATA |
2-4 SATA |
2-8 SATA |
||
|
Single Disk capacity |
MAX 4TB |
|||||
External Interface |
Network Interface |
10M/100M Ethernet Interface |
10M/100M/1000M Ethernet Interface |
1000M Ethernet Interface |
||
Serial Interface |
1 RS485 |
|||||
Other Information |
USB 2.0 Interface |
2 |
||||
Power Supply |
DC12V |
|||||
Working Temperature |
-10~55 |
|||||
Working Humidity |
10%~90% |
|||||
Shipping Methods
We generally ship goods via express couriers like DHL, FedEx, TNT, EMS,SF.By air or by sea for large amount.You can also arrange shipping agent to pick up goods.
Q: What’s your company’s advantage?
A: We are a R&D, Production and Marketing 3 in 1 enterprise. We provide high quality products with competitive price based on scientific management.
Q: Can you offer OEM&ODM service?
A: Yes, we can. We have about 150 senior engineers and will satisfy all your specific requirements.
Q: How about your company's production capacity?
A: We produce 5000pcs of DVR/NVR and 2000pcs of Cameras per day on average.
Q: How long is your delivery time?
A: Within 3 days for sample order, 5-12 days for mass order in general.
Q: How long is your product’s warranty?
A: The warranty is 24 months. We also have a professional engineer team for after-sale technical support.
Thanks for your attention to our company and products. We are confident that you will be satisfied with our products and service. Welcome to visit our factory in Guangzhou. Hope to cooperate with you for Win-Win.
