Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Drilling Machine HGY-200

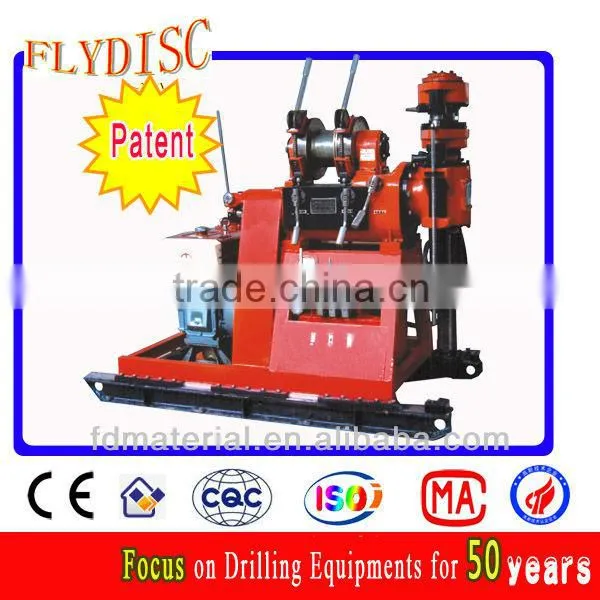

Drilling Machine HGY-200

Name: Drilling Machine HGY-200
Brand: FLYDISC
SKU: 120981591
Availability: InStock

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

FLYDISC

Model Number:

HGY-200 Drilling Machine

Contact Supplier Request Quote Chat Now

Hunan Flydisc New Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen shanghai guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name FLYDISC

Model Number HGY-200 Drilling Machine

After-sales Service Provided Overseas service center available

Specifications

HGY-200 Drilling Machine
1,Two patents
2,Hydraulic chuck or ball chuck
3,Angle range 0-360.
4,Convenient to transport

Drilling Machine(HGY-200):

Brief introduction of Drilling Machine(HGY-200)::

1.50 years professional manufacture

2. Certificate: ISO9001:2008

3. Export to: Africa, the Middle East, South America, Asia,

Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.

Two patents for HGY-200 Drilling Machine:

Utility patent for transmission case.

Design patent for appearance.

Drilling Ability of Drilling Machine(HGY-200)::

Drilling depth: 100m

Drill hole diameter: 75mm(46~250mm)

Max successful drilling depth: 427m, 478m with 75mm hole diameter

Features of Drilling Machine(HGY-200)::

1) Good stability and high reliability.

2) Multilevel positive and reverse rotate speed.

3) The complete hydraulic chuck and vertical spindle.

4) Convenient to transport with the small volume and light weight.

5 )Perfect frame's rigidity ,low center of gravity and good stability.

Technological Data of Drilling Rigs:

Model	Drilling Rig(HGY-200)
Drilling depth( m)	200
Drilling rod diameter.(mm)	Φ50
Head angle range	360
Movable cylinder stroke (mm)	360
Spindle speed( r/min)	Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480
Spindle hole diameter( mm)	Φ65
Spindle output torque max(N.M)	2140
Spindle stroke(mm)	500
Lifting power max( KN)	50
Driving force max(KN)	37
Lifting speed( m/s)	0.6 2.3 3.4
Lifting capacity(single) max(KN)	20
Steel wire rope diameter (mm)	11
Mode of chuck	Full-hydraulic chuck or ball-type chuck
Weight(power unit excepted)(Kg)	750
Overall dimensions(mm)	18608001400
Diesel engine model	Zs1110 ( 14.7KW)
Electromotor model	Y160L-4 ( 15KW)

Use of Drilling Machine(HGY-200):: for geotechnical investigation, exploring, prospecting, water well drilling;

Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
