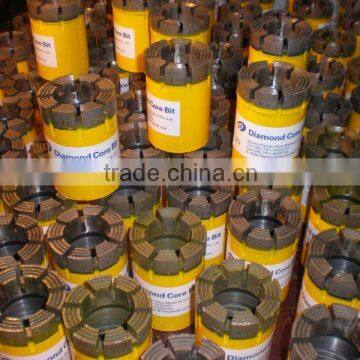

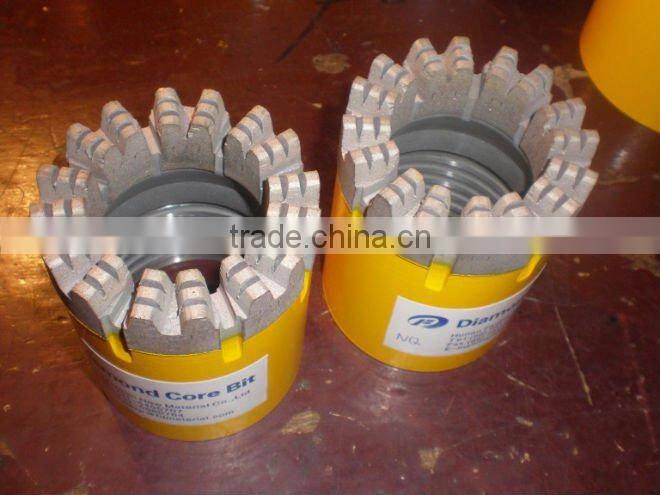

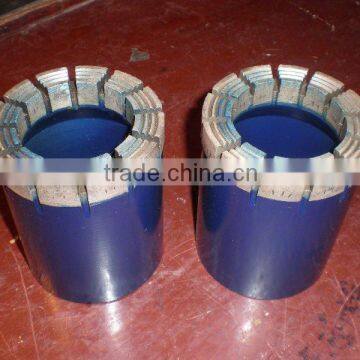

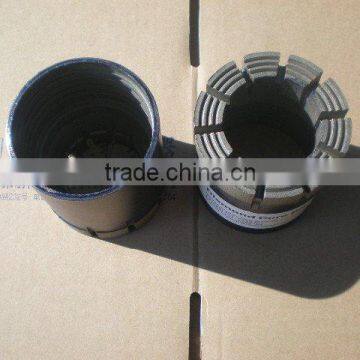

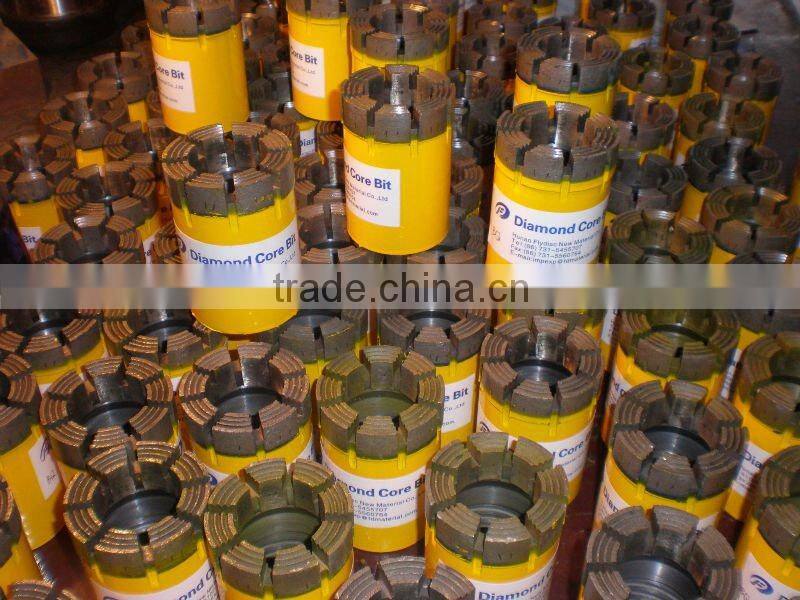

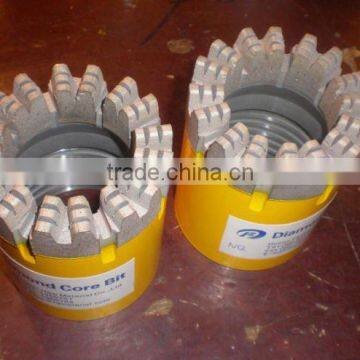

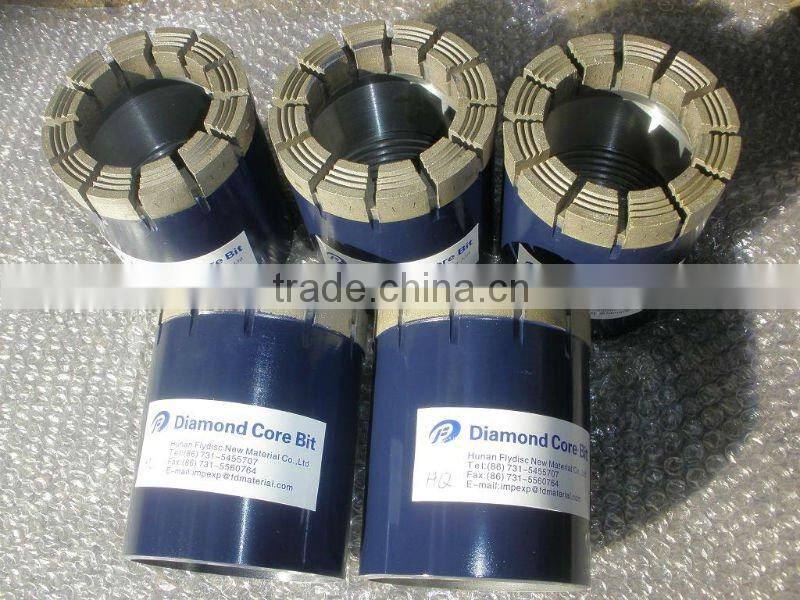

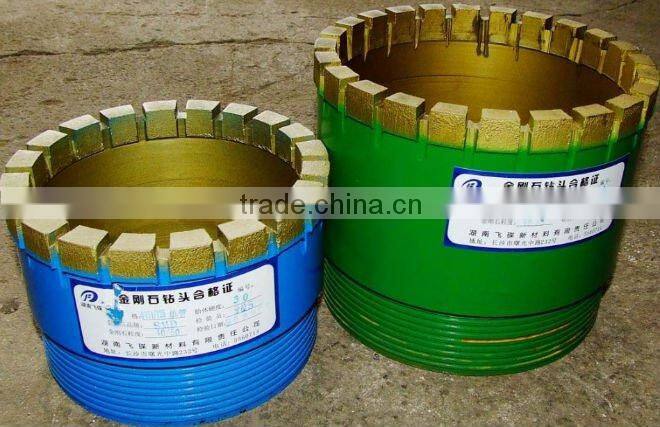

Help CenterHQ,PQ,AW,BX Impregnated Diamond Core Drill Bit
Related Products
Specifications
Impregnated Diamond Core Drill Bit:OUR PQ HQ NQ BQ IMPEGNATED DIAMOND CORE BITS ARE THE MOST DEPENDABLE DIAMOND CORE DRILL BIT
Impregnated Diamond Core Drill Bit:
Brief introduction:
1.50 years professional manufacture
2. Certificate: TS16949 and ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Size of Impregnated Diamond Core Drill Bit:
46~325mm with national and international standard
Main exportation: AQ,BQ,NQ,HQ,PQ
ITEM |
DIAMOND BIT |
REAMING SHELL |
|||||
"Q" Series Wireline |
Size |
Bit-set OD |
Bit-set ID |
||||
mm |
inch |
mm |
inch |
mm |
inch |
||
AQ |
47.6 |
1.88 |
26.97 |
1.06 |
48 |
1.89 |
|
BQ |
59.5 |
2.35 |
36.4 |
1.43 |
59.9 |
2.36 |
|
NQ |
75.3 |
2.97 |
47.6 |
1.88 |
75.7 |
2.98 |
|
HQ |
95.58 |
3.77 |
63.5 |
2.5 |
96 |
3.78 |
|
PQ |
122 |
4.8 |
84.96 |
3.35 |
122.6 |
4.83 |
|
Type of Impregnated Diamond Core Drill Bit::
Impregnated diamond core drill bit; Natural surface-set diamond core drill bit;
Electroplated diamond core bit; Thin-wall diamond drill bit;
Concentric circular saw tooth diamond core dril bit; Casing shoe bit
Electroplated Diamond Hole Reamer, Sintered Diamond Hole Reamer
Use of Impregnated Diamond Core Drill Bit::
Drill soft to hard rock, widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road, railway, bridge and building taking out core to examine stake,etc.
Structure:
They are manufactured with very small, high quality synthetic diamonds mixed evenly through a metal matrix. FLYDISC core bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.
We can manufacture according to the specific requirements of clients as drawing and samples.
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
