Help CenterPDC Diamond Core Bit
Related Products
Specifications
PDC Diamond Core BitCore Bit is a warm welcomed
diamond core bit used for core drilling, rock/mineral drilling

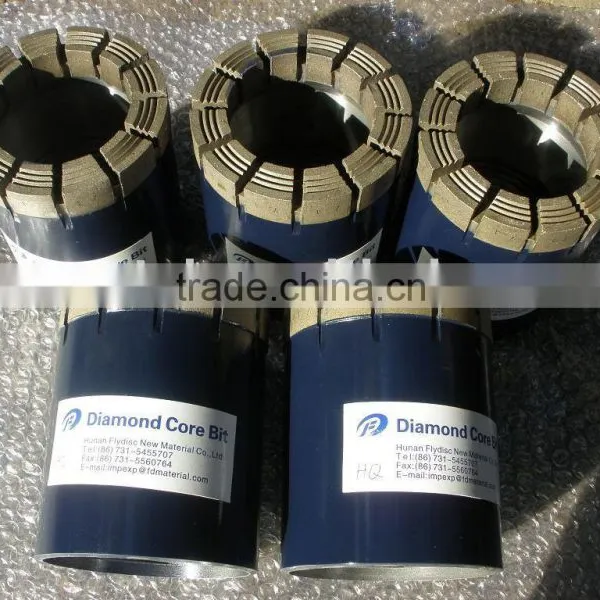

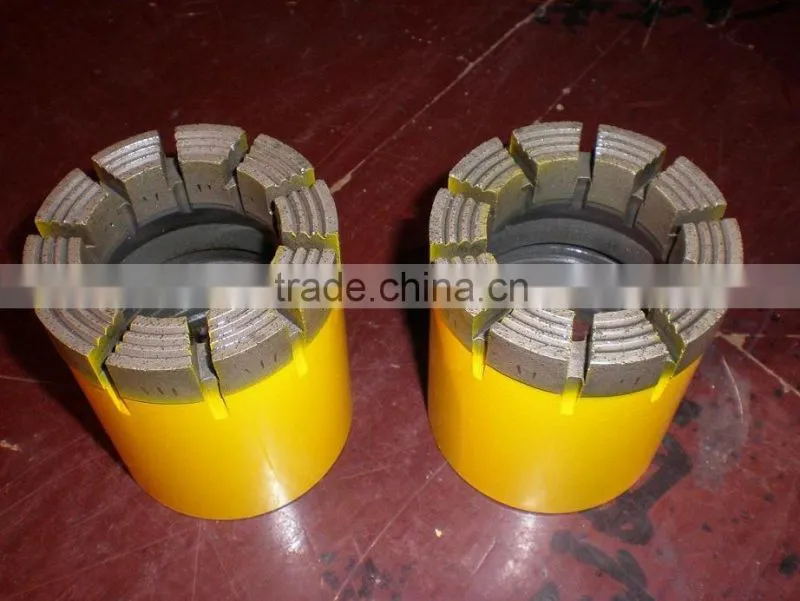

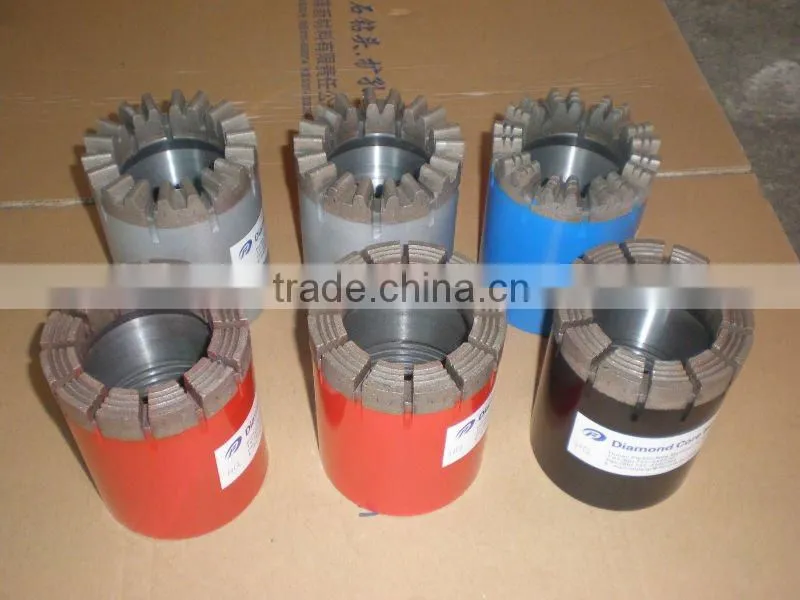

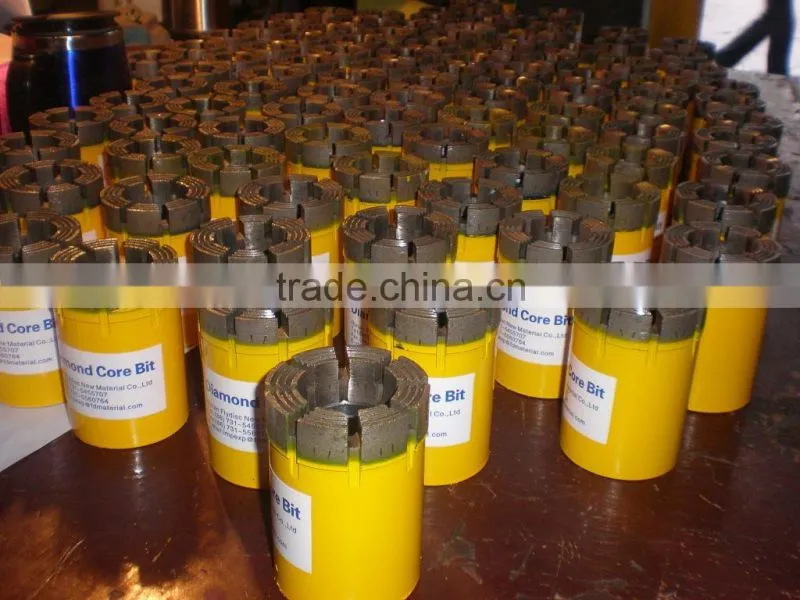

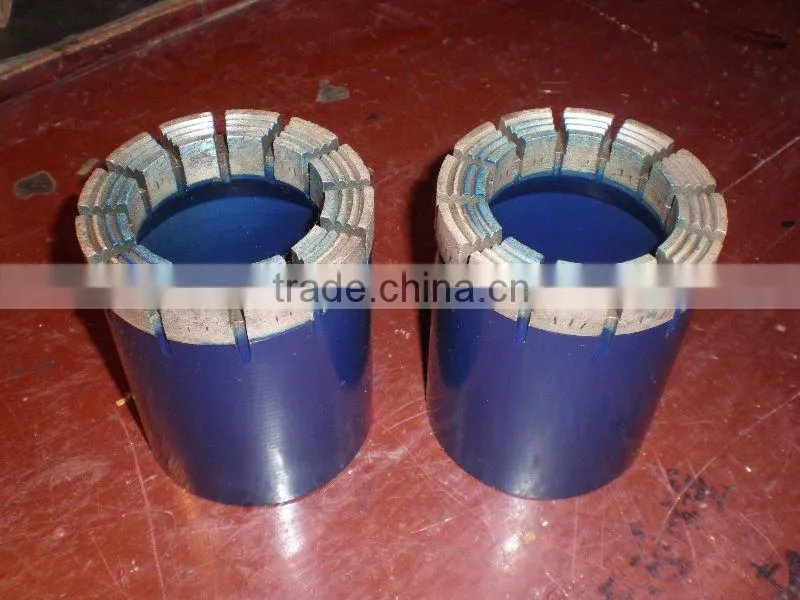

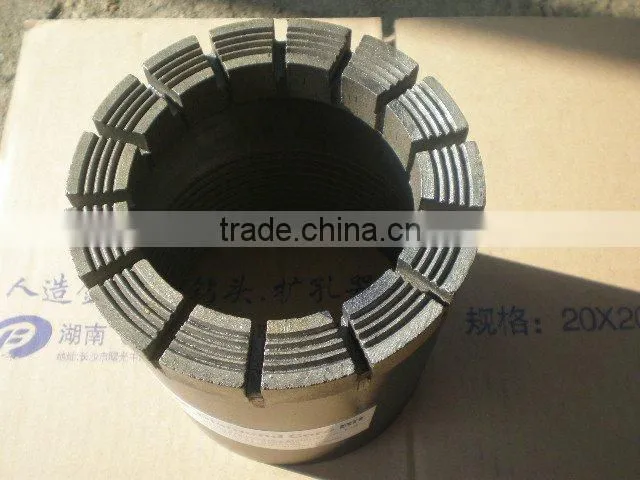

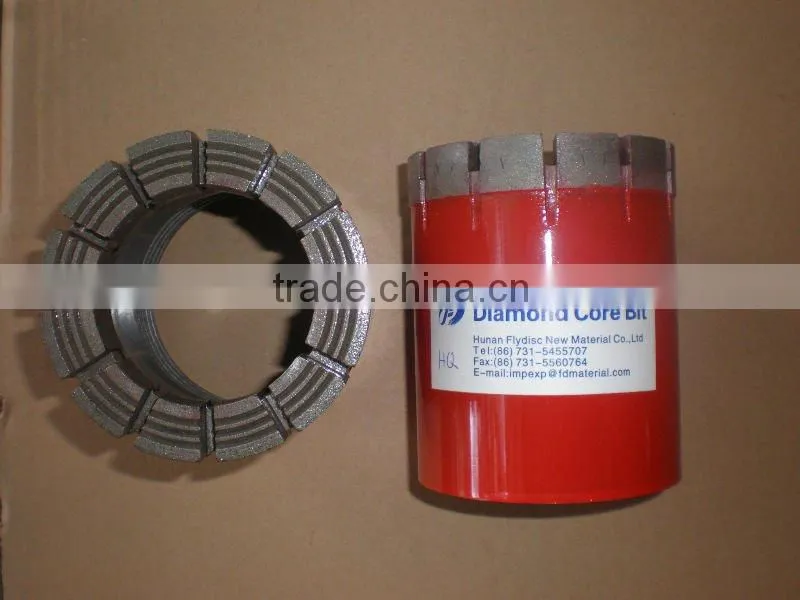

PDC Diamond Core Bit
Company introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2000 and ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Size for Diamond Core Drill Bits
Size: 46~325mm diamond core drill bits with national and international standard
Main exportation: AQ,BQ,NQ,HQ,PQ wire-line diamond core drill bits
ITEM |
DIAMOND BIT |
REAMING SHELL |
|||||
"Q" Series Wireline |
Size |
Bit-set OD |
Bit-set ID |
||||
mm |
inch |
mm |
inch |
mm |
inch |
||
AQ |
47.6 |
1.88 |
26.97 |
1.06 |
48 |
1.89 |
|
BQ |
59.5 |
2.35 |
36.4 |
1.43 |
59.9 |
2.36 |
|
NQ |
75.3 |
2.97 |
47.6 |
1.88 |
75.7 |
2.98 |
|
HQ |
95.58 |
3.77 |
63.5 |
2.5 |
96 |
3.78 |
|
PQ |
122 |
4.8 |
84.96 |
3.35 |
122.6 |
4.83 |
|
Type for PDC Diamond Core Drill Bits :
Impregnated diamond drill bits; Natural surface-set diamond drill bits;
Electroplated diamond bits; Thin-wall diamond bits;
Concentric circular saw tooth diamond dril bits; Casing shoe bits
Electroplated Diamond Hole Reamer, Sintered Diamond Hole Reamer
Use for PDC Diamond Core Drill Bits:
FLYDISC core bits can drill a broad range of geological formations from the softest to the hardest rock, widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road, railway, bridge and building taking out core to examine stake,etc.
Structure of PDC Diamond Core Drill Bits :
They are manufactured with very small, high quality synthetic diamonds mixed evenly through a metal matrix. FLYDISC core bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.
The custom core drill bits can be manufactured according to the samples or drawings.
