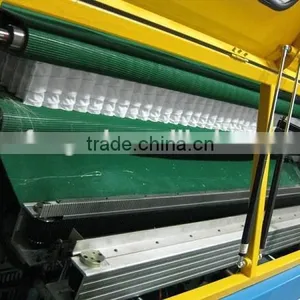

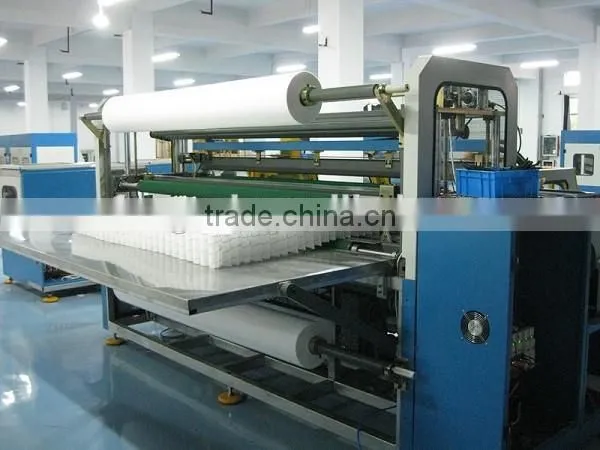

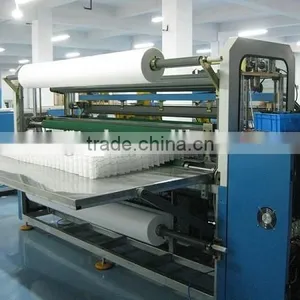

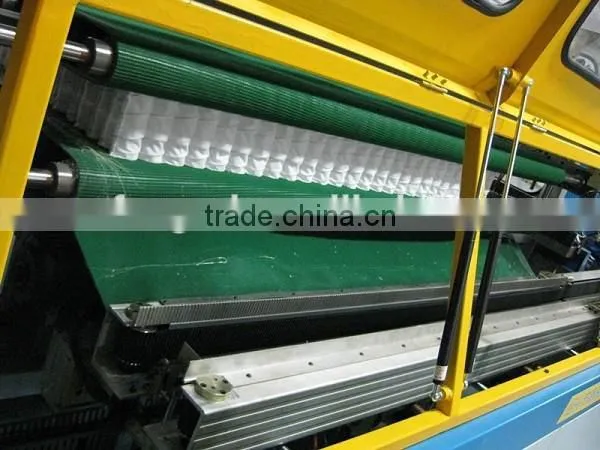

 Fully Automatic CNC Pocket Spring Machine FR-PS-120 and Fully Automatic CNC Pocket Spring Assembly Machine FR-PSA-A1

Fully automatic CNC pocket spring producing line consists of fully automatic CNC pocket spring machine FR-PS-100 and fully automatic CNC pocket spring assembly machine FR-PSA-A1.The producing line products different standards of independent pocket spring bed cores. All the working procedures are fully CNC servo control such as pressing the spring wire correctly, wire pre-programmed to coil controlling,and to a pre-defined spring, cutting,heat-treating and transmitting,cooling down coil and welding while processed into pocket spring strings. Our CNC system and servo electric motor are all produced by international famous brand "schneider".Also we pursue "Robatech" "Nordson" brand products on holt-melt glue system. One pocket spring assembly machine matches two or three sets pocket spring machines. All of these make our producing line works in high efficiency,qualification and low consumption.

 Contact: Anna 0086 13705752685

Our CNC automatic pocket spring production line --our products technical advantages to compare that of other manufacturers of similar products:

1. More higher degree of automation. The main component is well-known international brands. Such as CNC system and servo electric motor with French "Schneider" products; sensors are used in Japan's "Keyence"; Hot melt system uses Swiss’s “Robatech” and American “Nordson”. Bearing brand of Japanese “NSK”.

2. Precise automatic alarm system

A. Wire conveying mechanism using automatic cycle working principle. As the demand of the automatic pocket spring machine , suitable steel wire provided by the sensor. But when the wire delivery appears problems,Such as wire used up, card wire or wire break, the system will automatically gives alarm and give instructions.

B. springs are used in the secondary heat treatment tempering setting

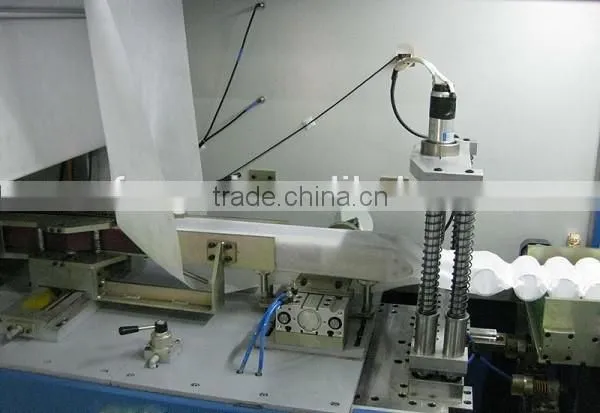

and testing to ensure that each spring through heat treatment,to make solidate shape of spring , to the spring eliminate internal stress yield after forming. Heat treatment intensity degree can be adjusted according to the requirements, to adjust the extent of the soft and hard degree of the pocket spring. If missing spring (or off spring) when the spring feeding instition send the sprin in, it can automatically alarm, the machine automatically ensure that every spring evenly put into the pocket.

C. The cloth conveying mechanism applies the working principle which loop closed automatically,the sensor provides the suitable cloth automatically according to the machine system needs . When the fabric is insufficient,The system will alarm automatically and instruct the users to change non-woven fabric.

3. Users can be implemented in any desired partition zone stacked row for the finished pocked spring chains.

A. Typically, according to the user’s requirement. One automatic pocket spring assembling machine can match several sets (1, 2, or 3) of coil springs cnc automatic pocket spring machines. But our’s can be equipped with up to 3 sets cnc automatic pocket spring machines. Three drag-one, it means 3 sets cnc automatic pocket spring machines + one feeding material machine + One automatic pocket spring assembling machine.

B. Each match can be achieved that the wire parameters for cnc automatic pocket spring coiling machine are different, different thickness to be matched . When different wire diameter of the spring sent into the feeder material machine of the A, B, C three different heads, It can be setted conveniently as the mattress partition request, to come true any form of permutations and combinations.

4. There are four spray mouth (which can be expanded to 6 mouth) for spray glue system, You can just select to spray the middle two line or up and down two glue line or four line to work at the same time, sustainable point spray or continuous spray all possible.

5. We guarantee that two year’s of warranty for the factory to repair in free(usually other factory guarantee one year). During the warranty period, if the parts and accessories damaged during normal operation, new ones replaced to be instead of old ones.

Among them, the ultrasonic welding system will be guaranteed for two years to be instead of one year in other factory.
